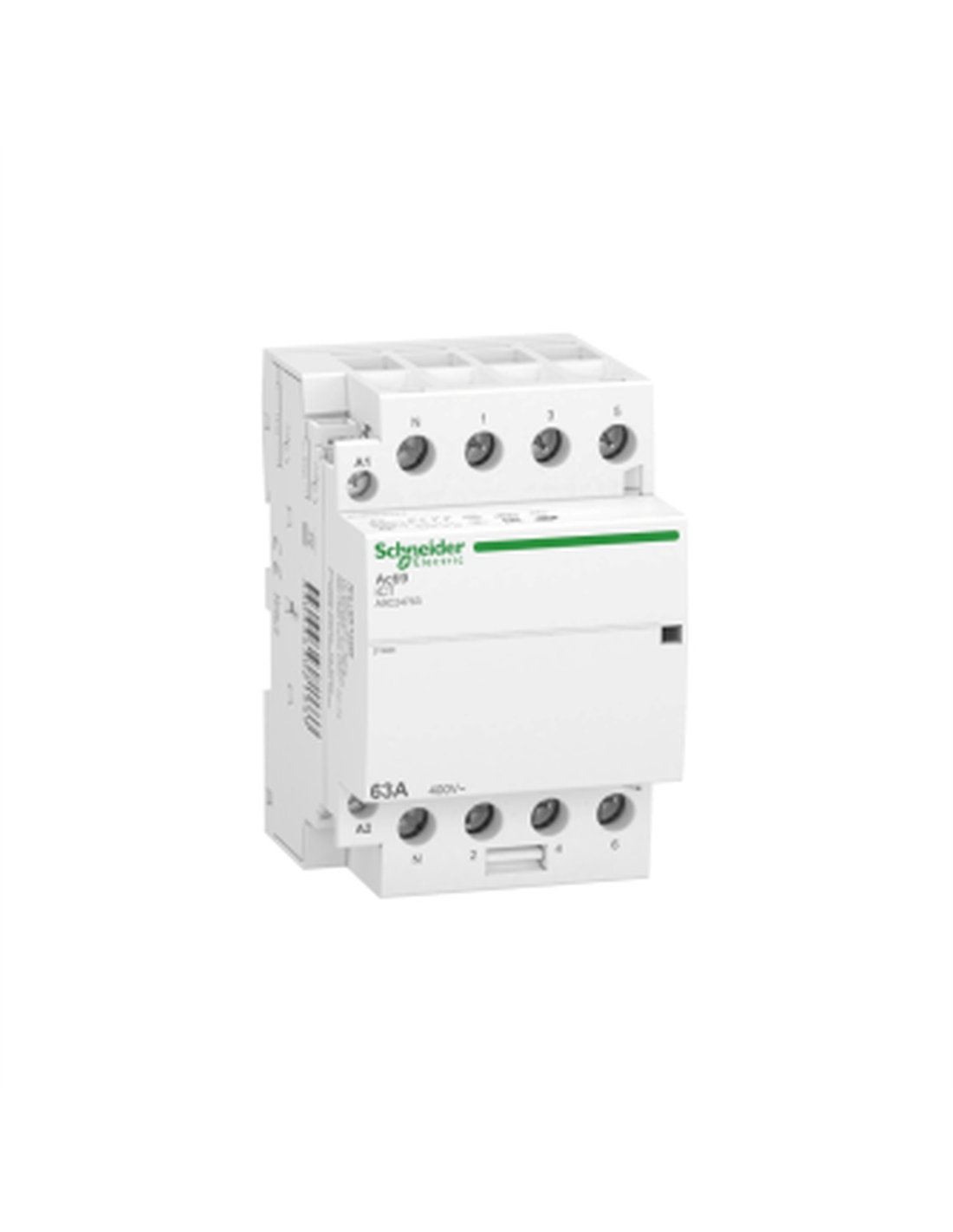

ACTI9 iCT 63 A 3P + N connector, remote control and IP20 for LED lighting

The Acti9 iCT 63 A 4NA LED is a high-efficiency connector designed for lighting applications, part of the Acti9 range. This device is characterized by its robustness and versatility, making it ideal for small businesses and residential environments. With a 3P + N configuration, the iCT offers a rated operating current of 63 A on AC-7A and 20 A on AC-7B, guaranteeing optimal performance under various operating conditions.

The iCT is designed to operate on alternating current (AC) networks with a rated operating voltage of 220–240 V AC at 50 Hz. Its remote control technology allows for efficient lighting management, while its switching capacity of up to 100 operations per day ensures exceptional durability.

• Maintenance frequency: 50 Hz
• Maximum power: 2.1 W at 220-240 V AC
• Mechanical durability: 1,000,000 cycles
• Electrical durability: 100,000 cycles at 63 A
• Protection rating: IP20 (IP40 with modular enclosure)
• Operating temperature: -5-60 °C
• Height: 85 mm, Width: 54 mm, Depth: 60 mm
• Mounting: Clip-on adjustable on 35 mm DIN rail
• Maintenance consumption: 6.5 VA
• Relative humidity: 95% at 55 °C
