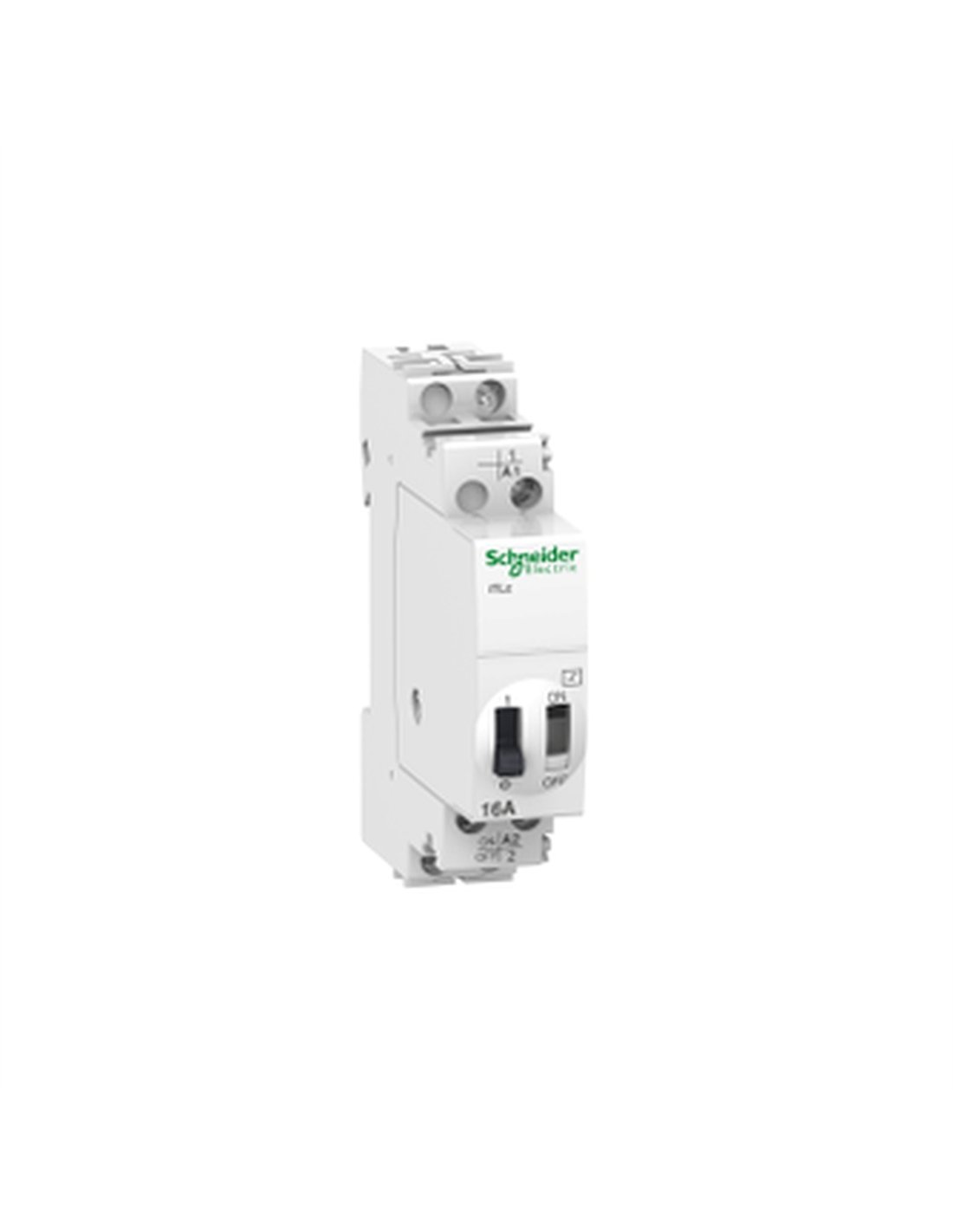

ACTI9 remote control relay, 1 pole, 16 A, 24 V AC, DIN rail mounting.

The iTLC 24 VCA TELERUPTOR from the Acti9 ITL range is a device designed for the centralized control of electrical circuits in residential and small commercial environments. This remote switch, with 1P poles and a 1 NO contact configuration, offers a rated current of 16 A and is compatible with 24 V AC at 50/60 Hz power supplies. Key features include: Manual and remote control via push button. Switching frequency of up to 100 operations per day. Electrical durability of 200,000 cycles in AC-21 state and 100,000 cycles in AC-22 state. Fixed DIN rail mounting with dimensions of 84 mm high, 18 mm wide, and 60 mm deep. IP20 protection rating for the opening and IP40 for the enclosure. Operating temperature range of -20 to 50 °C and storage temperature range of -40 to 70 °C.

The iTLC 24 VAC remote switch is an efficient and reliable solution for energy management in electrical installations, guaranteeing optimal performance and a long service life.
