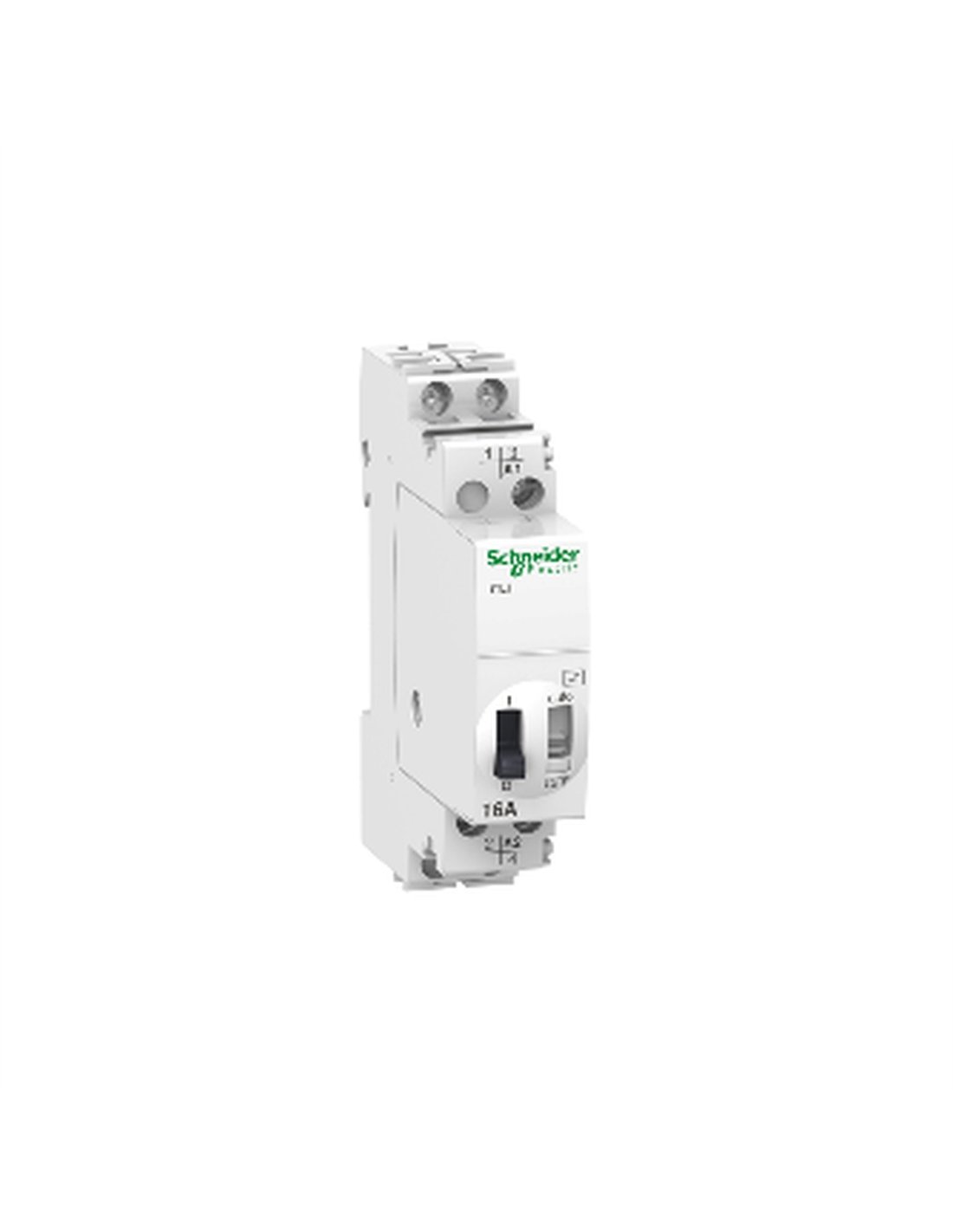

ITL ACTI9 16A 2P 230VAC remote control and DIN rail mounting relay

The Acti9 iTL+ is a high-quality latching relay designed for changeover relay applications in residential and small commercial environments. This device, part of the Acti9 ITL range, offers reliable and efficient performance, with a rated current of 16 A and a control circuit voltage of 230–240 V AC 50/60 Hz or 110 V DC. Its compact design allows for fixed DIN rail mounting, occupying only 18 mm in width and 84 mm in height.

The Acti9 iTL+ is characterized by its manual and remote control capabilities, with a pulse control signal type. This device allows up to 100 switching operations per day and is capable of operating in a temperature range of -20 to 50 °C, making it ideal for various environmental conditions.

• Number of poles: 2P (1 to + 1 NC)
• Main frequency: 50/60 Hz
• Electrical durability: 200,000 cycles (AC-21) and 100,000 cycles (AC-22)
• Protection rating: IP20 (open), IP40 (enclosed)
• Relative humidity: 95% at 55 °C
• Connections: tunnel-type terminals for cables from 0.5 to 4 mm²
• Tightening torque: 1 Nm
• Standards: EN 669-1, EN 669-2-2
• Certifications: CCC, GOST, CEBEC, NF, IMQ, KEMA, VDE
• Degree of pollution: 3
