iTL 2P 16A 24VCA 12VCC
iTL 2P 16A 24VCA 12VCC

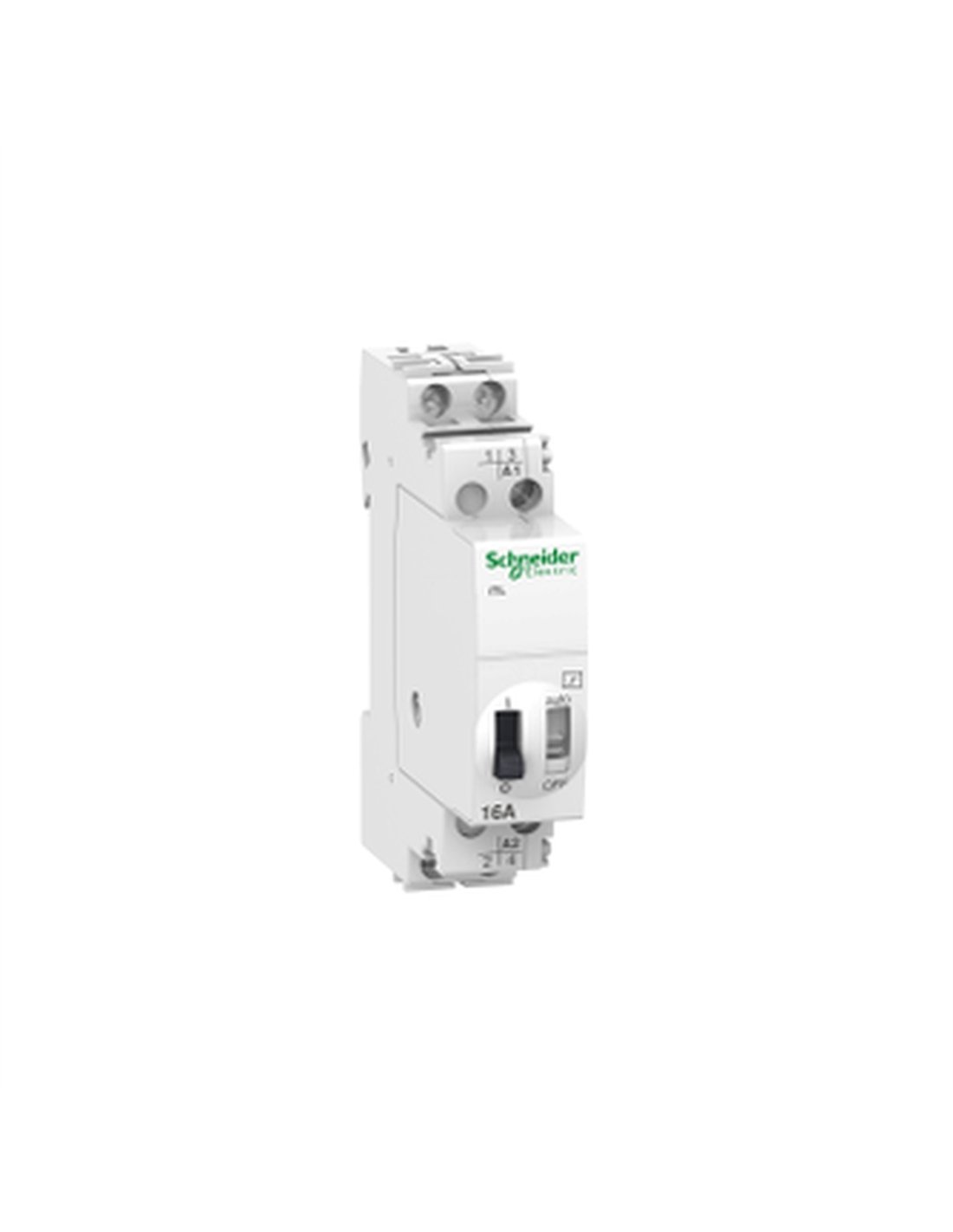

ITL 2P 16A 24VAC remote switch with manual and remote control, IP20, DIN rail mounting

IMPO A9C30112
Available
€48.11
VAT included
The Acti9 iTL 2-pole remote switch is designed for manual and remote control. It has a rated current of 16 A and operates on 24 V AC and 12 V DC. DIN rail mounting makes it ideal for residential and small commercial applications. It has an IP20 protection rating.
10 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The Acti9 iTL+ is a remote circuit breaker from the ITL range, designed to offer efficient and safe control in residential and small commercial applications. This device has two poles (2P) and a rated current of 16 A, making it an ideal choice for various electrical installations. Its compact design allows for fixed DIN rail mounting, occupying only 18 mm in width and 84 mm in height.

The iTL+ operates within a control circuit voltage range of 24 V AC at 50/60 Hz and 12 V DC, ensuring high versatility in its use. Its manual and remote control capabilities, along with coil disconnection, allow for simple and effective operation.

This device is capable of performing up to 100 switching operations per day, with a switching frequency of 5 operations per minute. Among its technical characteristics are: Electrical durability: 200,000 cycles (AC-21) and 100,000 cycles (AC-22). Protection rating: IP20 (open) and IP40 (enclosed). Operating temperature: -20 to 50 °C. Relative humidity: up to 95% at 55 °C. Certification standards: EN 669-2-2, EN 669-1, GOST, IMQ, CEBEC, NF, KEMA, VDE. Compatibility with other devices in the iATEt and iATLc ranges, among others.
  • Stripped cable length for connections: 11 mm.
  • Tightening torque: 1 Nm
  • Contamination level: 3.
  • Tropicalization: 2.

    • The Acti9 iTL+ is a robust and reliable solution for electrical circuit control, meeting the most demanding market standards.

    Product Details

    Rated current (A)
    16 A
    EAN
    3606480091889
    Manufacturer
    SCHNEIDER
    No. of poles
    2P
    Reference
    SCHNEIDER A9C30112
    GPSR Safety warning
    No
    GPSR Manufacturer information
    Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
    GPSR EU responsible person
    Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
    GPSR e-mail manufacturer
    [email protected]
