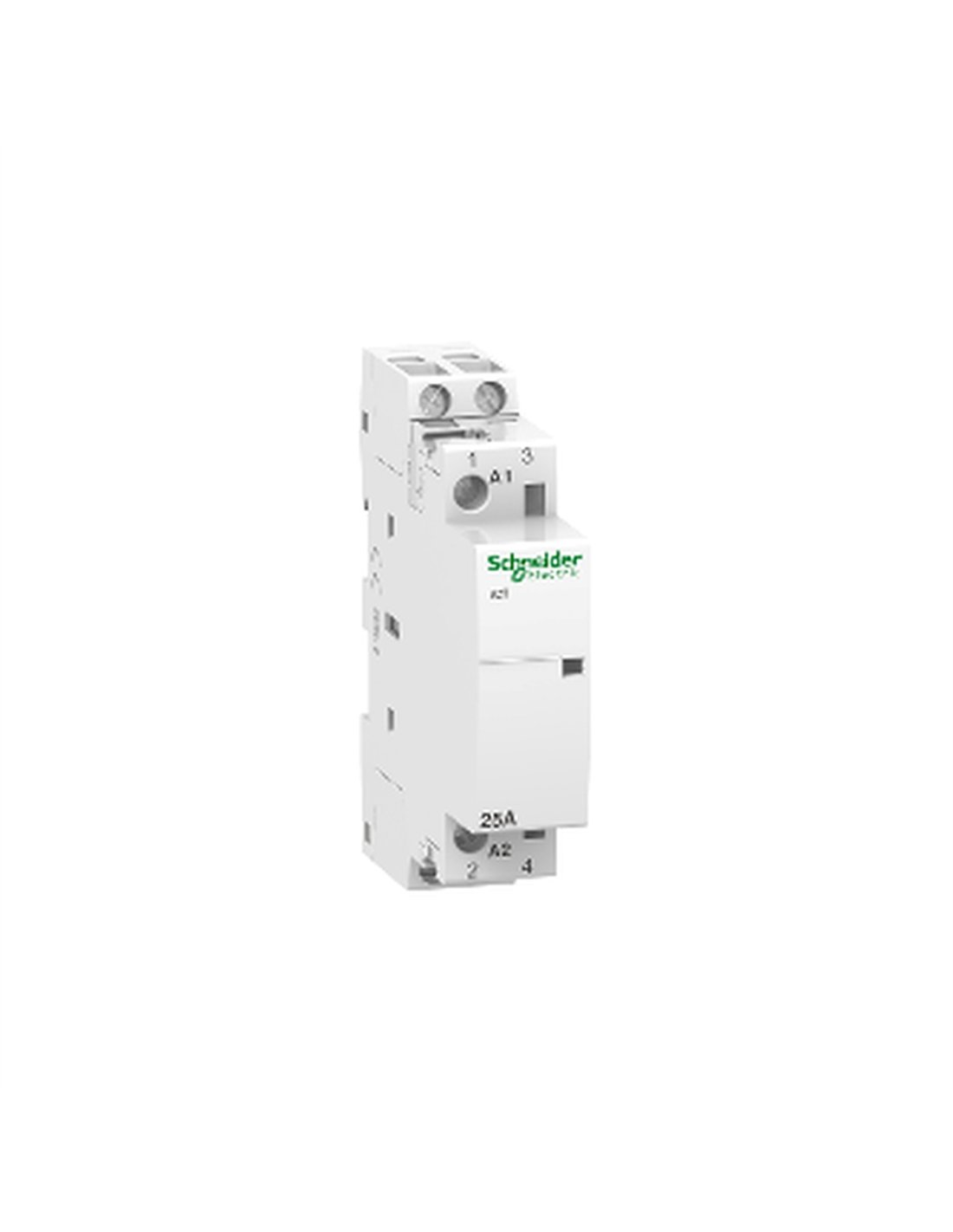

ACTI9 ICT 25A 2P 230V AC connector, remote control and DIN rail mounting

The Acti9 iCT is a connector from the ICT range, designed for lighting, heating, and motor applications. This device features a robust and efficient design, ideal for industrial and commercial environments requiring precise and reliable control. With a rated operating current of 25 A in AC-7A and 8.5 A in AC-7B, the iCT is capable of handling significant loads, ensuring optimal performance under various operating conditions.

The device operates at a control circuit voltage of 230–240 V AC at 50 Hz, and its clip-on mounting allows for easy installation on symmetrical 35 mm DIN rails.

• Number of poles: 2P
• Maintenance frequency: 50 Hz
• Nominal insulation voltage: 500 V AC 50 Hz
• Mechanical durability: 1,000,000 cycles
• Electrical durability: 100,000 cycles at 25 A
• Protection rating: IP20
• Operating ambient temperature: -5…60 °C
• Relative humidity: 95% at 55 °C
• Maintenance consumption: 2.7 VA
• Compatibility: IACTc, IACTs, IACTp, IATEt
The Acti9 iCT is a reliable and efficient solution for controlling electrical loads, ensuring safe and long-lasting operation in various applications.
