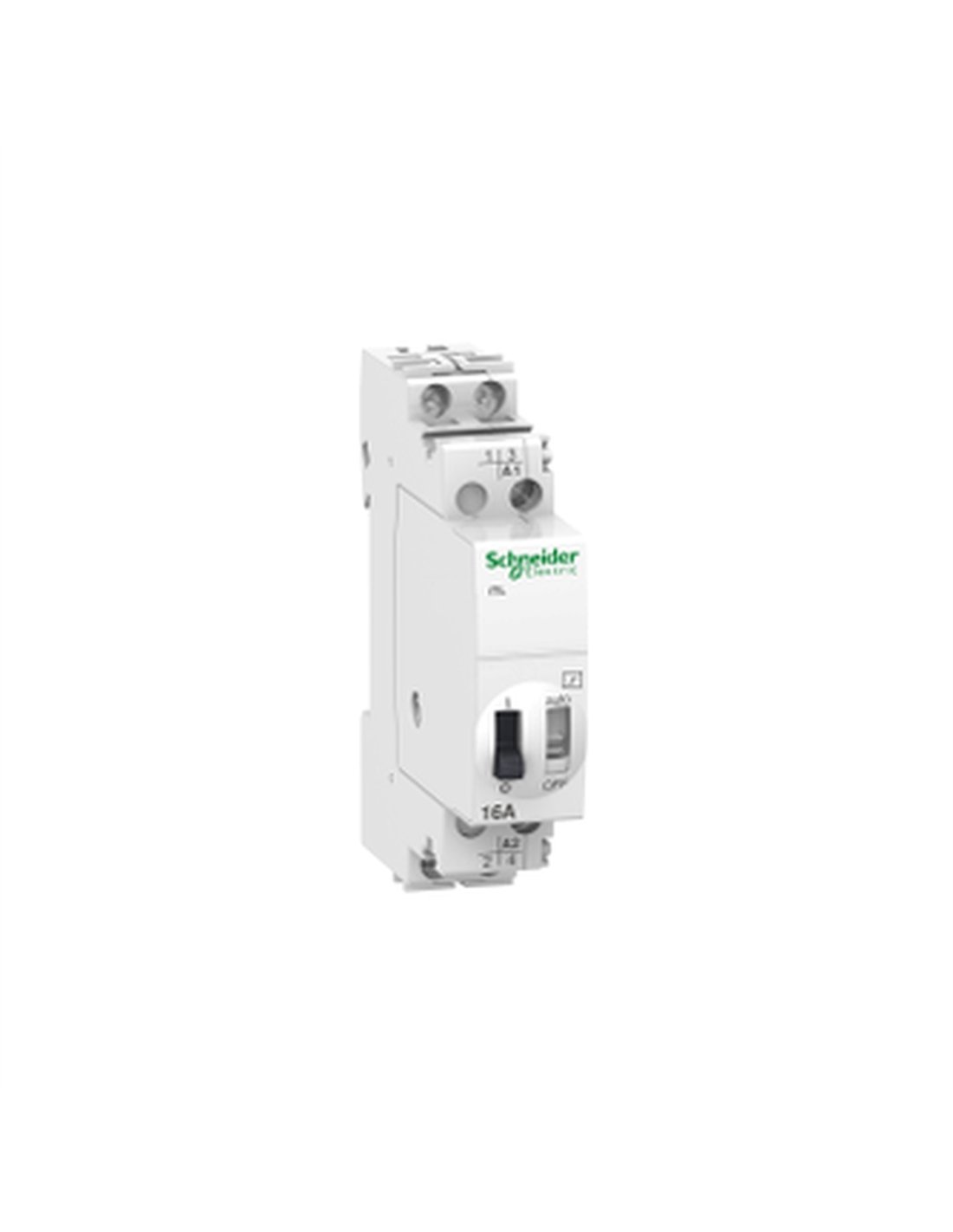

ITL 2P 16A 12VAC remote switch with remote control and DIN rail mounting

The Acti9 iTL+ is a high-quality remote switch designed for residential and small commercial applications. It belongs to Schneider Electric's ITL range, offering reliable and efficient performance. This device has two poles (2P) and a rated current of 16 A, making it ideal for controlling electrical circuits in low-voltage environments.

The remote switch operates on an alternating current (AC) network with a control circuit voltage of 12 V AC at 50/60 Hz and 6 V DC. Its design allows for manual and remote control, with a switching frequency of up to 5 operations per minute and 100 operations per day.

Technical features include:

• Electrical durability: 200,000 cycles on AC-21 and 100,000 cycles on AC-22.
• DIN rail mounting with dimensions of 84 mm high, 18 mm wide, and 60 mm deep.
• IP20 protection rating (opening) and IP40 (enclosure).
• Operating temperature: -20 to 50 °C.
• Relative humidity: up to 95% at 55 °C.
• Compatibility with other devices in the iATLm and iETL ranges.
• Certification standards: EN 669-1, EN 669-2-2, GOST, CEBEC, NF, VDE, IMQ, KEMA.
