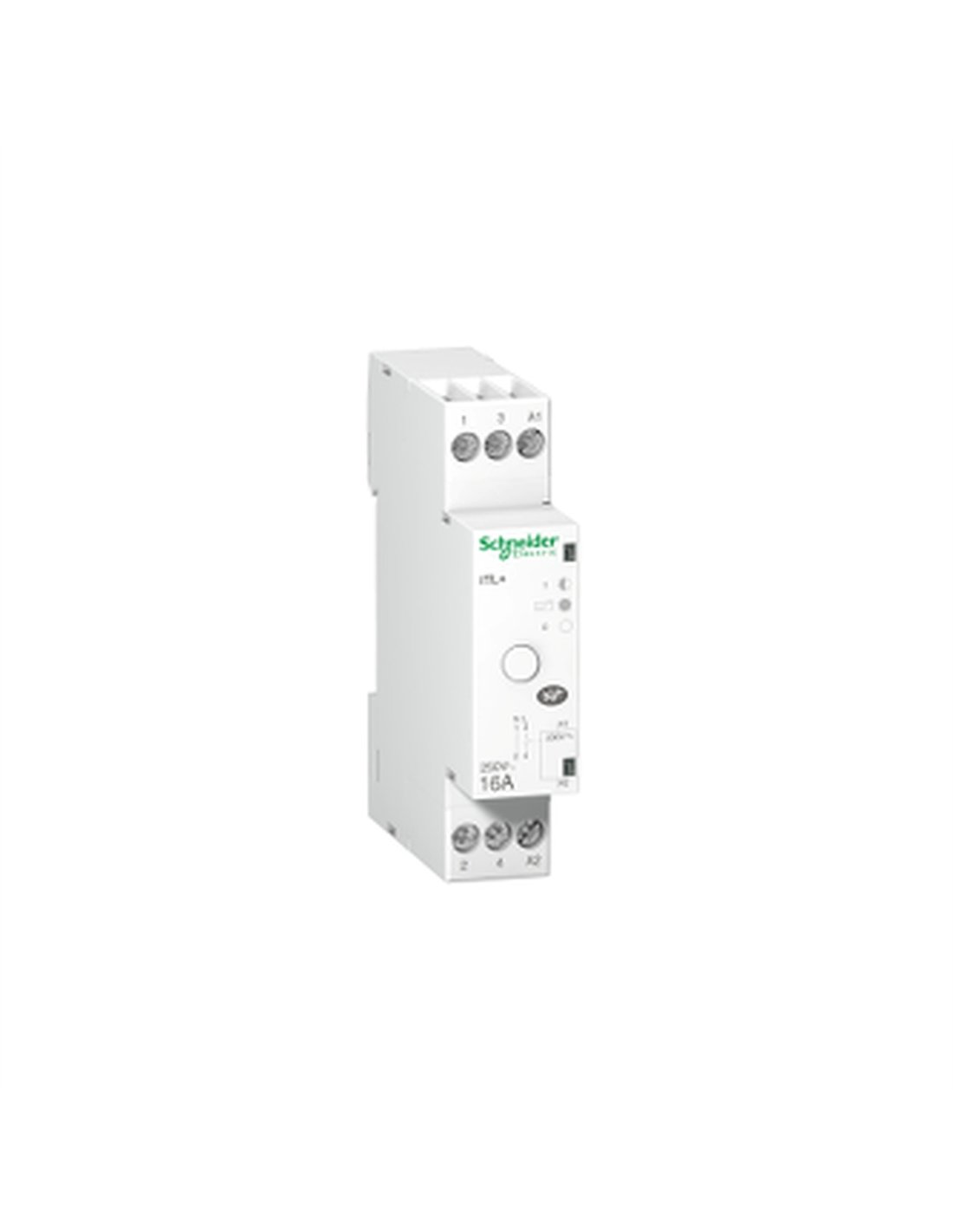

ACTI9 remote switch with 1 pole + neutral, 16A and 230V AC, DIN rail mounting.

The Acti9 iTLK TL+ 1NA+N 16A is a remote switch from the ITL range, designed to offer efficient and reliable control in residential and small commercial applications. This device, which complies with EN 669-2-2 standards, is characterized by its robustness and durability, with an electrical life of up to 5,000,000 cycles under AC-21 and AC-22 operating conditions. Its compact design allows for easy DIN rail mounting, occupying only 18 mm in width and 84 mm in height.

The remote switch has 1P + N poles, with the neutral position on the left and a contact pole configuration of 1 NO.

• Maintenance consumption: 1.1 VA
• Peak power: 11 VA
• Protection rating: IP20 (IP40 in enclosure)
• Operating temperature: -5 to 55 °C
• Relative humidity: 95% at 55 °C
• Electrical durability: 5,000,000 cycles
• Connections: Tunnel terminals for cables up to 4 mm²
• Noise level: 30 dB
• Tropicalization: 2 according to IEC 60068-1
• Length of bare cable for connecting terminals: 10 mm
