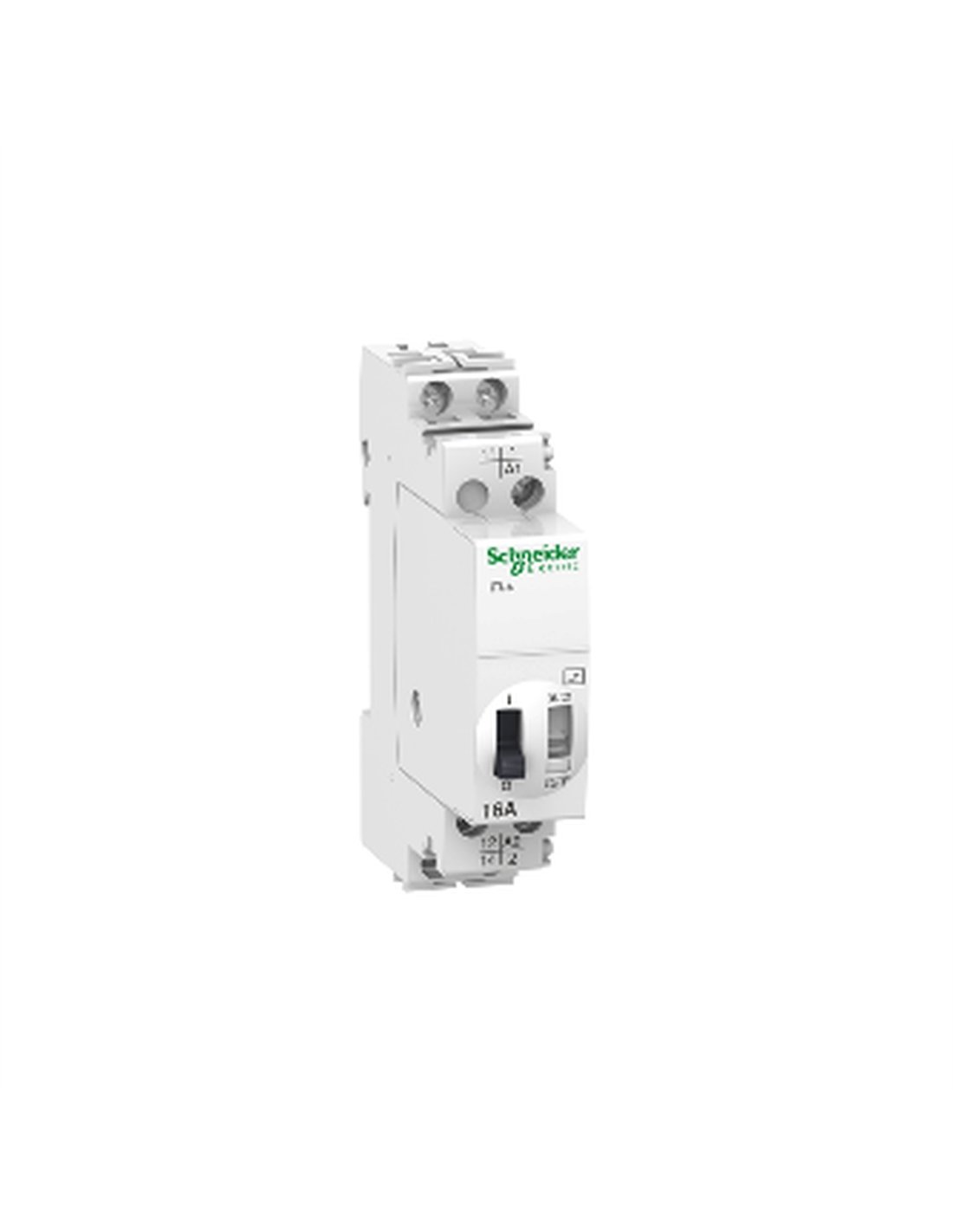

ITL 16A 1P 230VAC remote control and DIN rail mounting relay

Key features include:

• Manual and remote control via a 3 mA illuminated stop pushbutton.
• Switching frequency of up to 100 operations per day.
• Electrical durability of 200,000 cycles on AC-21 and 100,000 cycles on AC-22.
• Fixed DIN rail mounting, with dimensions of 84 mm high, 18 mm wide, and 60 mm deep.
• IP20 protection rating (opening) and IP40 (enclosure).
• Operating temperature from -20 to 50 °C and Storage temperature range: -40 to 70 °C. Relative humidity up to 95% at 55 °C. Tunnel-type connections for rigid and flexible cables of different cross-sections. Standards and certifications that guarantee its quality and safety, including GOST, CCC, KEMA, CEBEC, NF, IMQ, and VDE. The Acti9 iTL+ is a reliable and robust option for electrical circuit control, ensuring optimal performance under diverse operating conditions.
