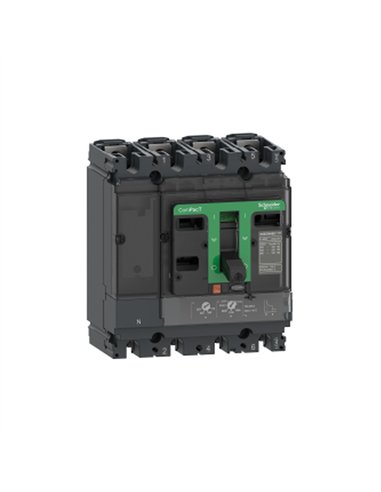

NSX100F 36kA AC 4P4R 80A TMD
NSX100F 36kA AC 4P4R 80A TMD

UL COMPACT 80A 36kA 4P Thermal-magnetic Circuit Breaker IP40

IMPO C10F4TM080
Available
€334.44
VAT included
The NSX100F circuit breaker from the ComPacT range features 4 poles and a breaking capacity of 36 kA. Designed for a rated current of 80 A and a voltage of 690 V AC. Ideal for AC network applications, with thermal-magnetic technology.
10 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The NSX100F 36kA AC 4P4R 80A TMD circuit breaker from the new generation ComPacT range, known as UL Compact, is an advanced solution for electrical circuit protection. Designed for applications with currents above 0.1 A, this device features four poles (4P) and a neutral position on the left, making it a versatile option for various electrical installations.

With a rated current of 80 A at 40 °C and a rated operating voltage of up to 690 V AC at 50/60 Hz, the NSX100F offers exceptional breaking capacity, reaching up to 85 kA Icu at 220/240 V AC and 36 kA Icu at 380/415 V AC, ensuring robust protection against overloads and short circuits.

Its TM-D control unit utilizes thermal-magnetic technology, providing LIG protection functions and a long-term sensing setting adjustable between 0.7 and 1 x In. This circuit breaker is designed for mechanical and electrical durability of up to 50,000 cycles, ensuring reliable performance over time. Furthermore, its design allows for both horizontal and vertical mounting, facilitating integration into various environments. With an IP40 protection rating and a wide operating temperature range, the NSX100F is ideal for demanding industrial and commercial applications.

  • Rated current: 80 A at 40 °C
  • Rated operating voltage: 690 V AC 50/60 Hz
  • Breaking capacity: 85 kA Icu at 220/240 V AC
  • Mechanical durability: 50,000 cycles
  • Control type: Lever
  • Mounting: Fixed, horizontal and vertical
  • Protection rating: IP40
  • Operating temperature: -25…70 °C
  • Weight: 2.4 kg
  • Compatibility code: NSX100

Product Details

Frequency
50/60 Hz
Rated current (A)
80 A
EAN
3606481997517
Manufacturer
SCHNEIDER
No. of poles
4P
Reference
SCHNEIDER C10F4TM080
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
