INT.AUT Schneider iC60N 1P 2A C 6000A Acc

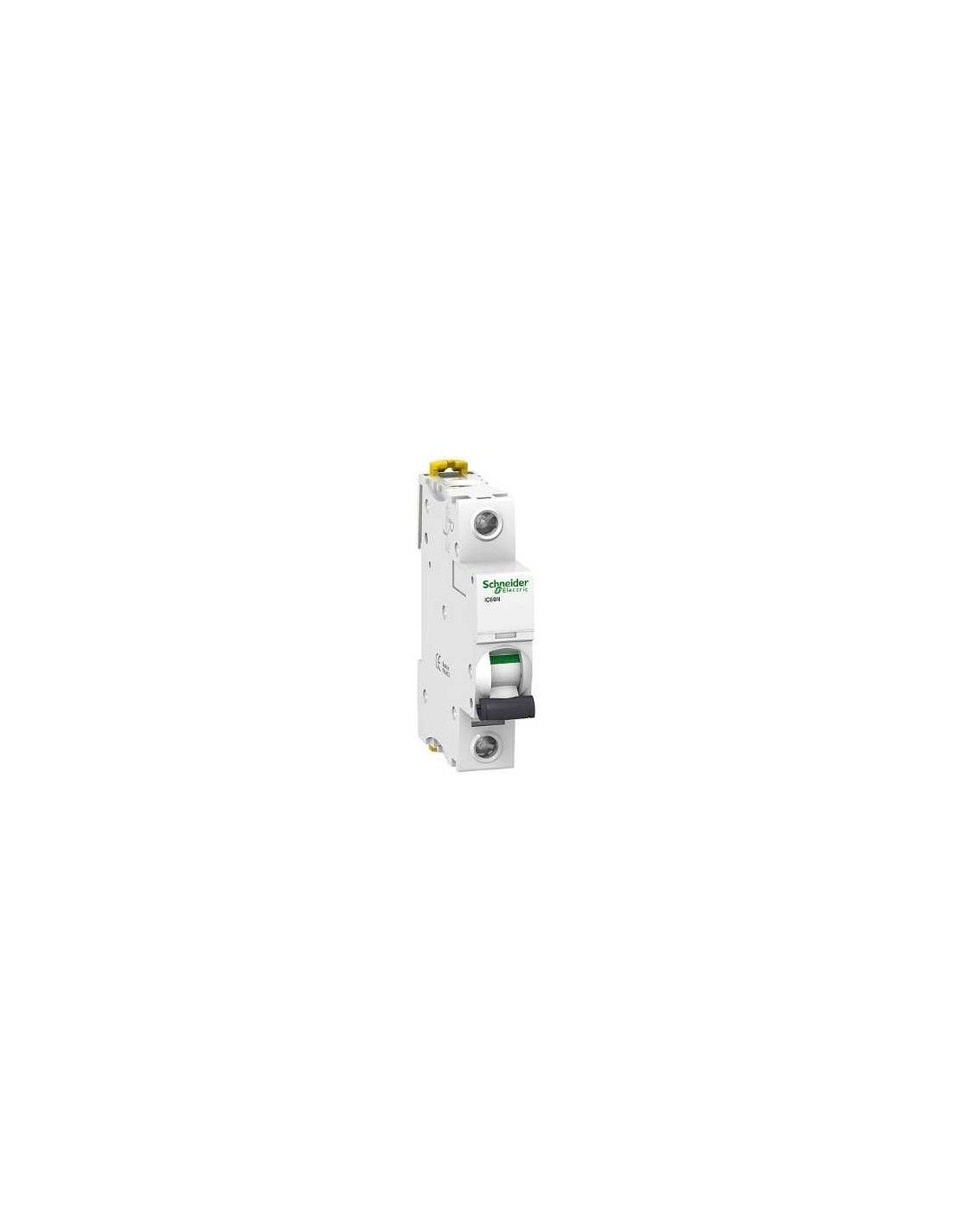

Automatic circuit breaker iC60N 1P 2A curve-C

INT.AUT Schneider iC60N 1P 2A C 6000A Acc

Automatic circuit breaker iC60N 1P 2A curve-C

Automatic circuit breaker iC60N 1P 2A curve-C

Reference IMPO A9F74102

Available

€22.09

VAT included

iC60N Acti 9 thermal-magnetic circuit breaker, 1P, 2A, curve C, 50/60 Hz, IP20, thermal-magnetic, suitable for isolation, contact position indicator, handle control, trip indicator, fixed mounting, DIN rail support , without protection against earth leakage, measures 85x18x78.5mm, weighs 0.215kg and is white. Breaking capacity: 15 kA Icu conforming to EN 60947-2, 12...60 V DC, 10 kA Icu conforming to IEC 60947-2, 72 V DC, 6000 A Icn conforming to IEC 60898-1, 230 V AC 50/60 Hz, 15 kA Icu conforming to IEC 60947-2, 12...60 V DC, 50 kA Icu conforming to EN 60947-2, 12...60 V AC 50/60 Hz, 10 kA Icu according to EN 60947-2, 72 V DC, 50 kA Icu according to IEC 60947-2, 12...60 V AC 50/60 Hz, 50 kA Icu according to EN 60947-2, 100. ..133 V AC 50/60 Hz, 50 kA Icu conforming to IEC 60947-2, 100...133 V AC 50/60 Hz, 50 kA Icu conforming to EN 60947-2, 220...240 V AC 50/60 Hz, 6000 A Icn according to EN 60898-1, 230 V AC 50/60 Hz, 50 kA Icu according to IEC 60947-2, 220...240 V AC 50/60 Hz, category of use A according to EN 60947-2 and IEC 60947-2, suitable for isolation according to EN 60947-2, EN 60898-1, IEC 60947-2 and IEC 60898-1, standards: EN 60947-2, IEC 60898 -1, IEC 60947-2 and EN 60898-1, quality labels: NF.

In stock 100 Items

Order now and receive it...

11-05-2026 with MRW

between 11-05-2026 and 12-05-2026 with Correos

Subscribe To When In Stock

You have successfully subscribed to this product

Product Details

Rated current (A): 2 A
Curve: C
EAN: 3606480080203
Manufacturer: Schneider
No. of poles: 1P
Reference: SCHNEIDER A9F74102
Safety warning: No
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

In stock 100 Items

Reviews (0)

No reviews
