INT.AUT Schneider iC60N 1PN 40A C 6000A Acc

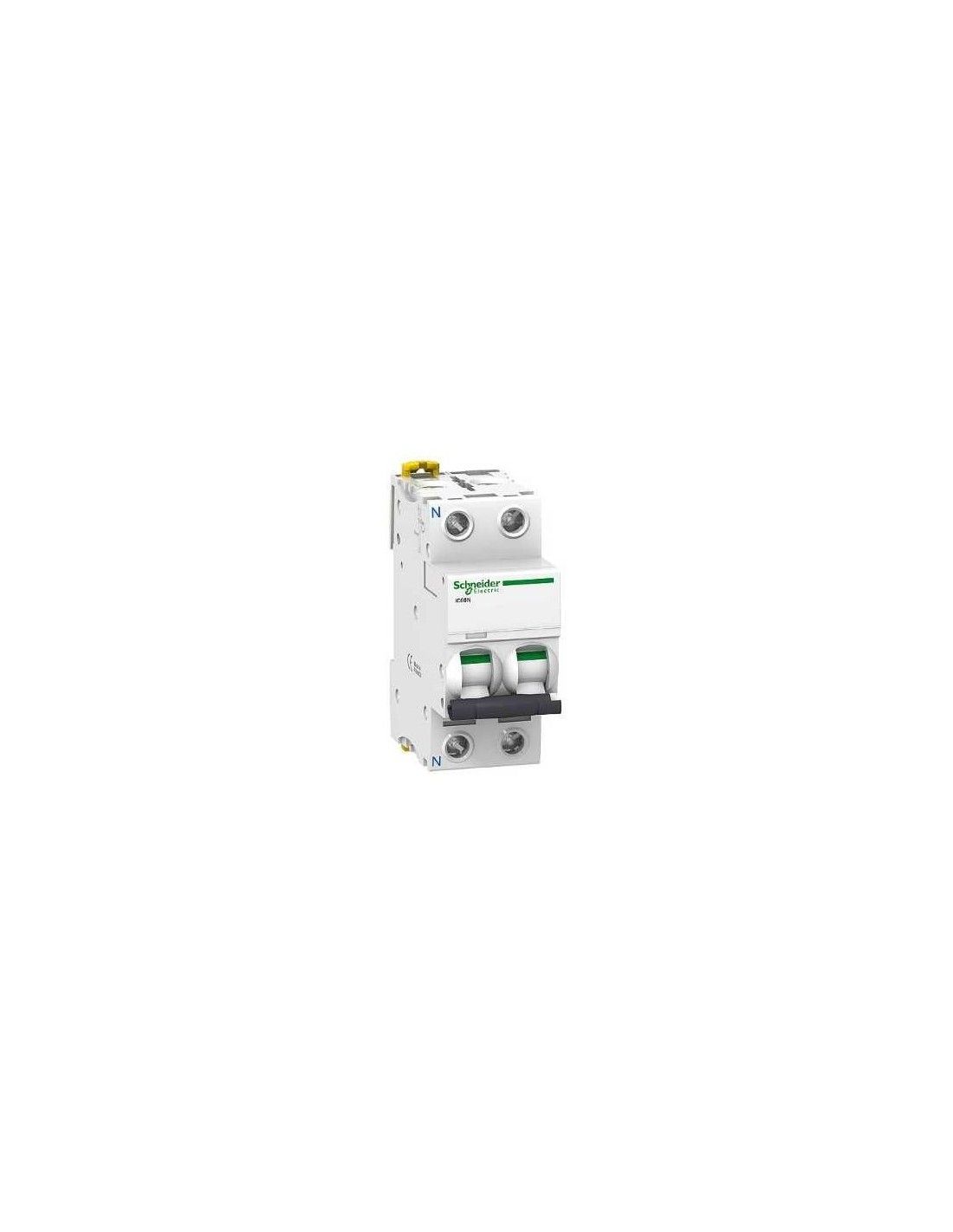

Automatic circuit breaker iC60N 1P+N 40A curve-C

INT.AUT Schneider iC60N 1PN 40A C 6000A Acc

Automatic circuit breaker iC60N 1P+N 40A curve-C

Automatic circuit breaker iC60N 1P+N 40A curve-C

Reference SCHNEIDER A9F79640

Available

€48.78

VAT included

iC60N Acti 9 thermal-magnetic circuit breaker, 1P+N, 40A, curve C, IP20, thermal-magnetic, suitable for isolation, contact position indicator, handle control, trip indicator, fixed mounting, DIN rail support, protection against ground leakage with independent block, measures 85x36x78.5mm, weighs 0.25kg and is white. Breaking capacity: 10 kA Icu according to IEC 60947-2, 220...240 V AC 50/60 Hz, 36 kA Icu according to IEC 60947-2, 12...60 V AC 50/60 Hz, 36 kA Icu according to EN 60947-2, 12...60 V AC 50/60 Hz, 6000 A Icn according to EN 60898-1, 230 V AC 50/60 Hz, 20 kA Icu according to IEC 60947 -2, 100...133 V AC 50/60 Hz, 10 kA Icu conforming to EN 60947-2, 220...240 V AC 50/60 Hz, 20 kA Icu conforming to EN 60947-2, 100 ...133 V AC 50/60 Hz, 6000 A Icn conforming to IEC 60898-1, 230 V AC 50/60 Hz, utilization category A conforming to EN 60947-2 and IEC 60947-2, suitable for isolating according to IEC 60898-1, IEC 60947-2, EN 60898-1 and EN 60947-2, standards: EN 60947-2, IEC 60947-2, EN 60898-1 and IEC 60898-1.

In stock 34 Items

Email address

Product Details

Rated current (A): 40
Curve: C
EAN: 3606480093548
Manufacturer: Schneider
No. of poles: 1P+N
Weight (kg): 0,25
Reference: SCHNEIDER A9F79640
Safety warning: No
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

In stock 34 Items

Reviews (0)

No reviews
