MCCB DPX³ 250A 4P Icu 25 kA
MCCB DPX³ 250A 4P Icu 25 kA

MCCB DPX³ 250A 4P Icu 25 kA

Available In stock 10 Items Reference LEGRAND 420219
€1,164.58
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP30

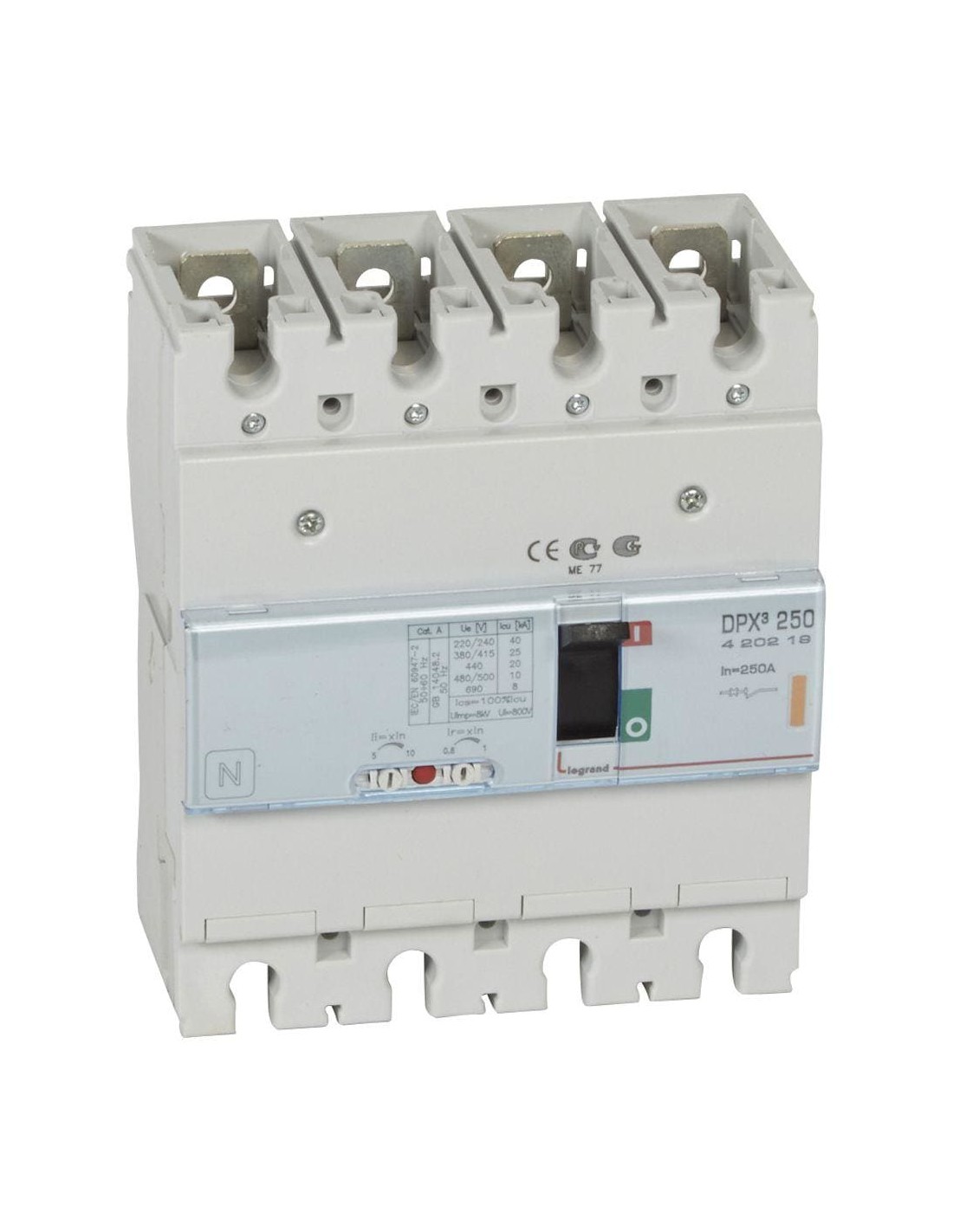

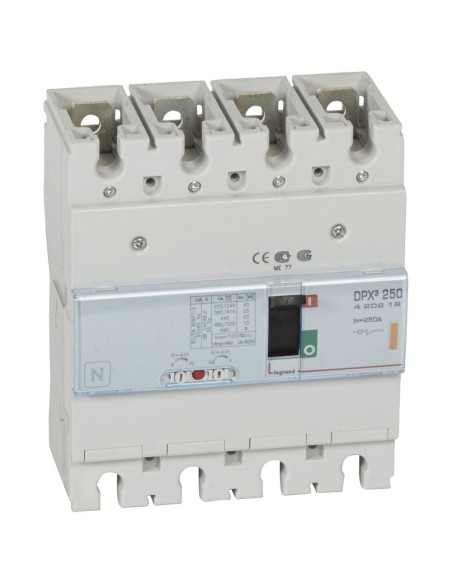

4-pole DPX³ molded case circuit breaker with a rated current of 250 A and a breaking capacity of 25 kA at 400 V. Features thermal adjustment between 200 and 250 A and magnetic adjustment from 1250 to 2500 A. DIN rail mounting with threaded connection and IP30 protection rating.

Description

4-pole thermal-magnetic molded case circuit breaker, designed for the protection of electrical circuits against overloads and short circuits. Its fixed construction and integrated protection unit guarantee reliable operation in industrial and commercial installations.

Technical features

  • Rated current (In): 250 A
  • Rated voltage range: 220...690 V
  • Breaking capacity (Icu): 25 kA at 400 V, 50 Hz
  • Overload adjustment: 200...250 A
  • Magnetic adjustment: 1250...2500 A
  • Main connection: Threaded
  • Mounting: Compatible with DIN rails
  • Auxiliary contacts: 1 NC, 1 changeover
  • Disconnection indicator: Available
  • Undervoltage release: Integrated
  • Control element: Handle
  • Protection rating: IP30

This device offers adjustable protection and a secure connection via screws. The availability of auxiliary contacts and the status indicator facilitates circuit monitoring. Motor operation is optional, allowing automation according to project needs.

Product Details

Eléctrico

Nominal voltage (V) 400
Rated voltage 400
Rated current (A) 250

Protección

Protection IP30

Otras

EAN 3245064202190
Manufacturer LEGRAND
No. of poles 4P
Reference LEGRAND 420219

Información legal

Fabricante LEGRAND
Dirección C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email [email protected]
Teléfono +34 916561812
Referencia LEGRAND 420219
EAN 3245064202190
