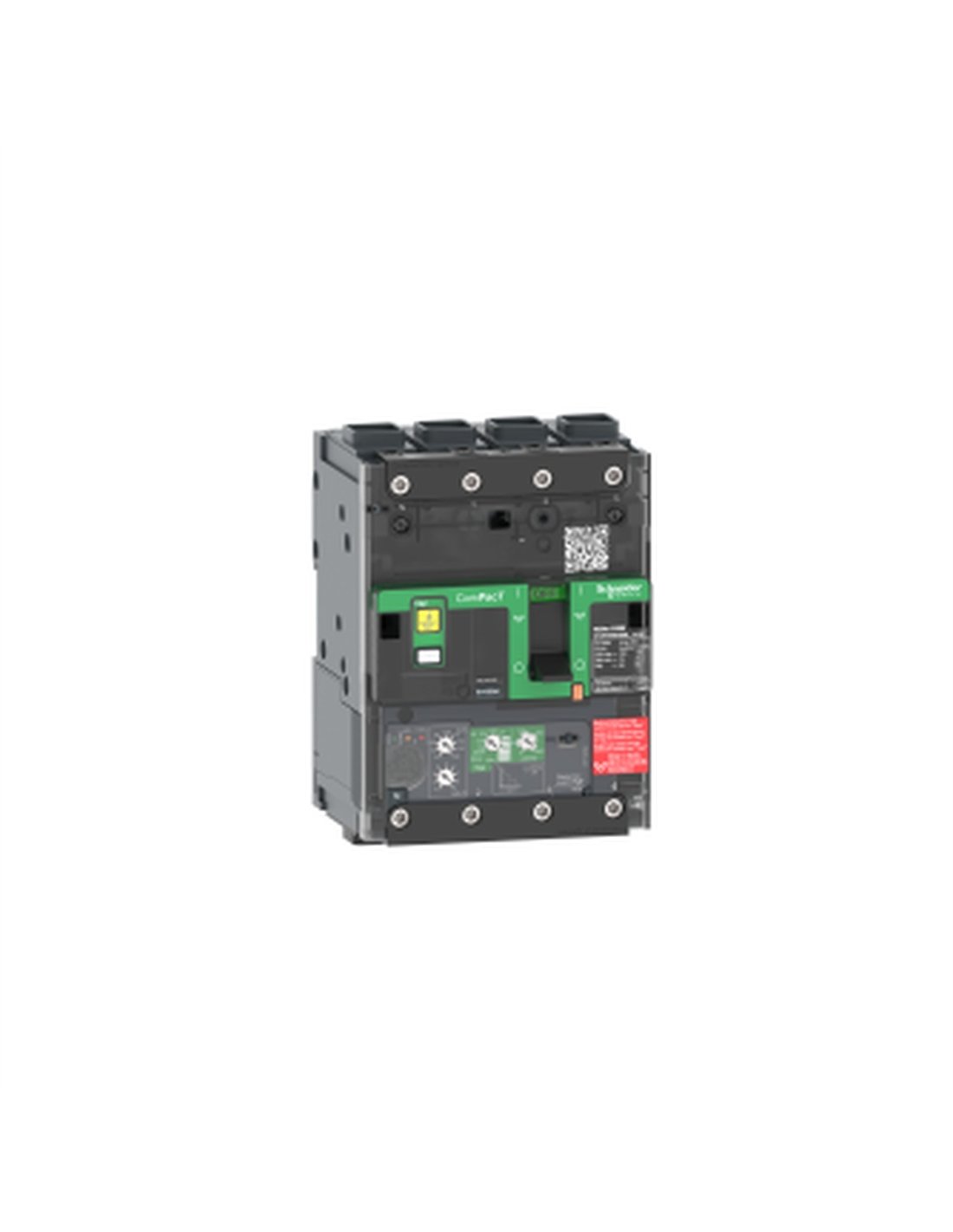

Automatic switch NSX 50A SCHNEIDER ELINK 4P 50kA 440V AC IP40

The NSXm100N 50kA AC 4P 50A 4.1 ELINK is a new-generation earth leakage circuit breaker from the ComPacT range, designed to offer a robust and reliable solution for applications with currents above 0.1 A. This device is part of the Compact NS KIT range and is characterized by its breaking capacity of up to 90 kA at voltages of 220 to 240 V AC and 50 kA at voltages up to 440 V AC, guaranteeing effective protection under various operating conditions. The NSXm100N has 4 poles (4R) and a rated current of 50 A at 40 °C, with a rated operating voltage of 440 V AC at 50/60 Hz. Its trip unit technology is electronic, allowing for a fast and precise response to overloads and short circuits. Furthermore, it includes advanced protection features such as LSoIR and an earth leakage sensitivity adjustment ranging from 30 mA to 5 A, adapting to different installation needs.

• Mechanical durability: 20,000 cycles
• Electrical durability: 10,000 cycles at 440 V
• Operating temperature: -25 to 70 °C
• Protection rating: IP40
• Connections: Terminals from 2.5 to 95 mm²
• Neutral position: Left
• Control unit: Micrologic 4.2
• Dimensions: 108 mm (width) x 144 mm (height) x 80 mm (depth)
• Weight: 1.63 kg
• Color: Gray (RAL 7016)
