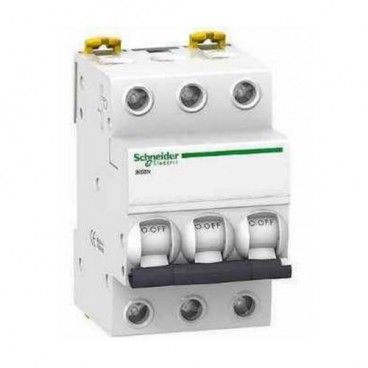

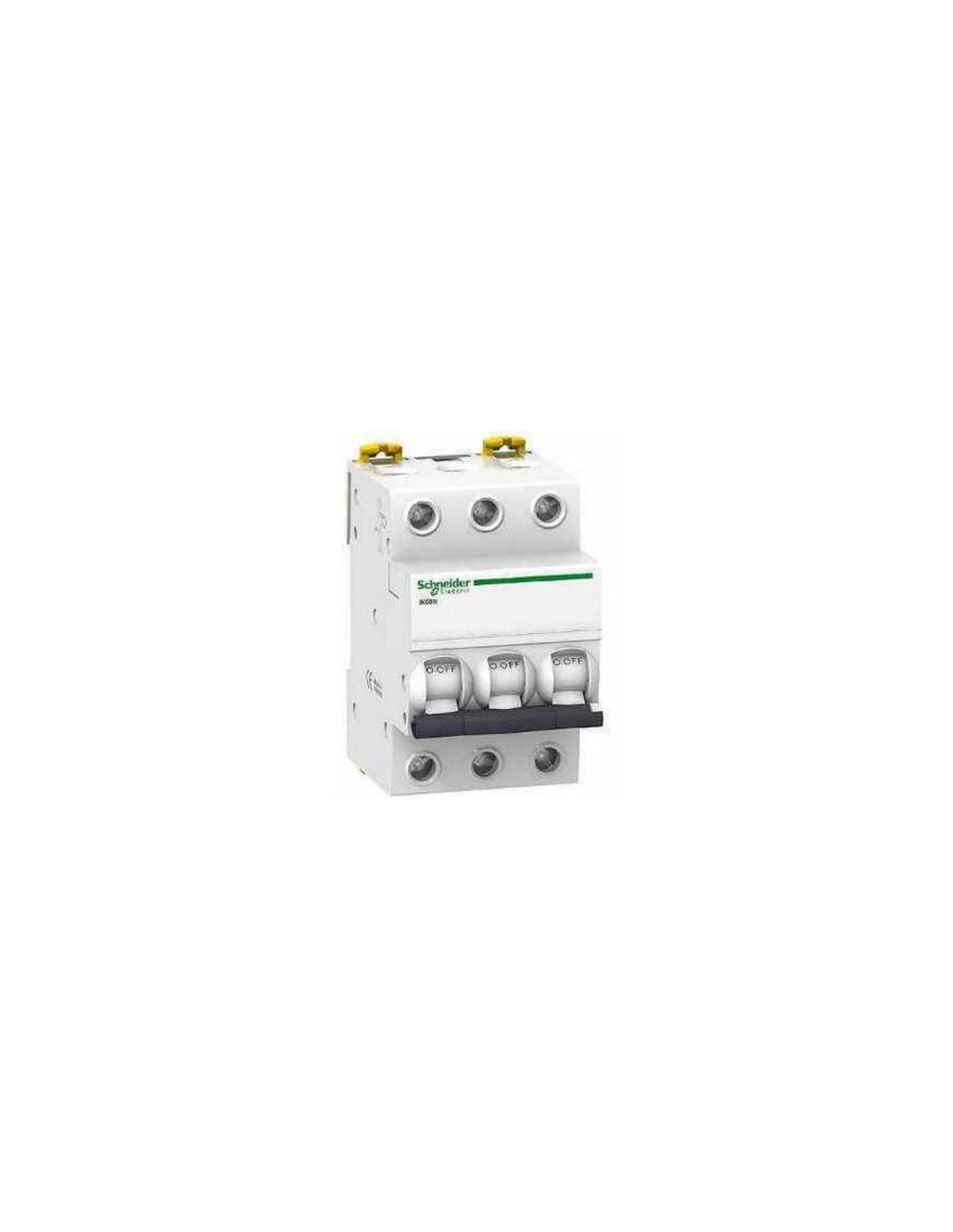

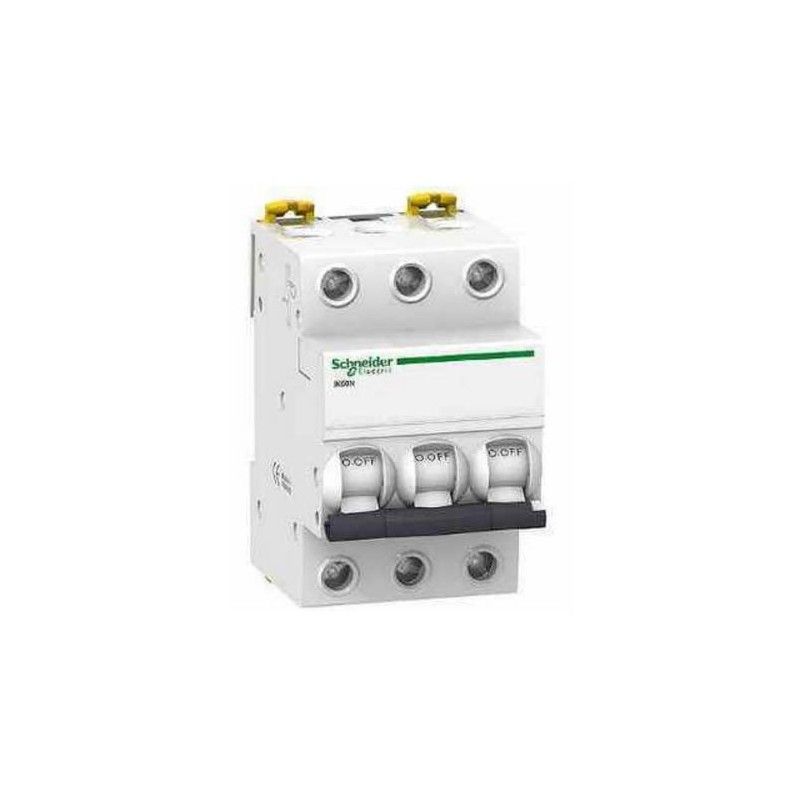

Interruptor automático 3P 40A TERCIARIO Schneider A9F79340

Circuit breaker 3P 40A TERTIARY Schneider A9F79340

Interruptor automático 3P 40A TERCIARIO Schneider A9F79340

Circuit breaker 3P 40A TERTIARY Schneider A9F79340

Circuit breaker 3P 40A TERTIARY Schneider A9F79340

Available In stock 7 Items

Reference SCHNEIDER A9F79340

€71.11

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Automatic switch 3P 40A

tertiary Range

Description

Interruptor automático 3P 40A TERCIARIO Schneider A9F79340

Poder de corte 6000A Curva C
Tensión de empleo 230/400 V CA
Corte plenamente aparente: banda verde en la maneta
Tensión aislamiento 500V CA
Grado polución 3
Tensión impulsional 6Kv
Ancho por polo: 2 pasos de 9 mm

Product Details

Eléctrico

Nominal voltage (V)	230V
Rated current (A)	40

Otras

Curve	C
EAN	3606480093364
Manufacturer	Schneider
Range	Terciario
No. of poles	3P
Reference	SCHNEIDER A9F79340

Información legal

Fabricante	Schneider Electric España, S.A.
Dirección	Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email	[email protected]
Teléfono	+34 930289900
Referencia	SCHNEIDER A9F79340
EAN	3606480093364

In stock 7 Items

Downloads

Product sheet Store PDF Download
