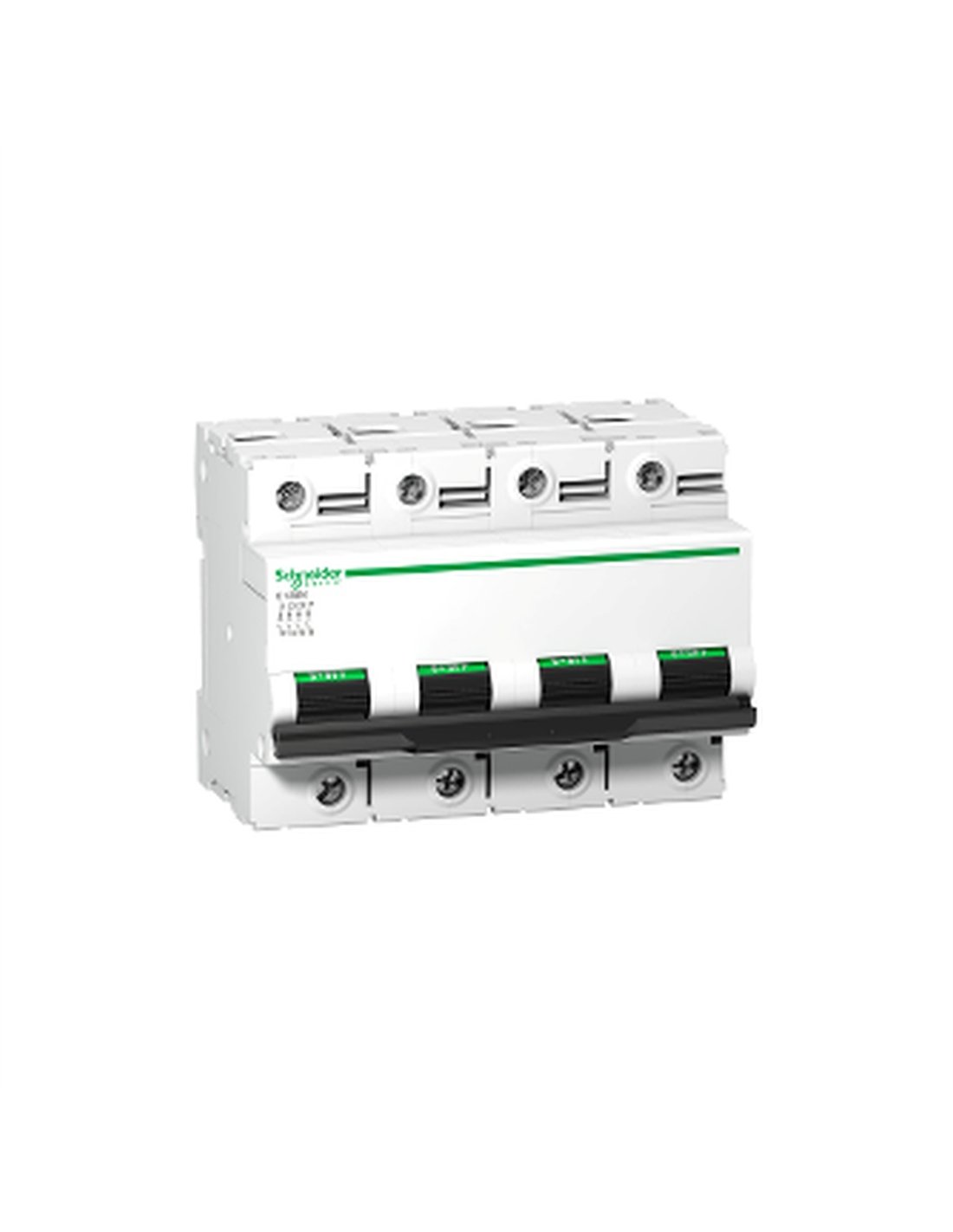

The Dardo Plus C120N miniature circuit breaker, part of the Acti 9 series, is an advanced solution for protecting electrical circuits in residential and small commercial applications. Designed to handle currents above 0.1 A, this device features four poles (4P) and a rated current of 80 A at 30 °C, making it a versatile and reliable choice for various electrical configurations. The C120N utilizes thermal-magnetic tripping technology, with a D-curve rating, and offers a breaking capacity of up to 10,000 A under 230–400 V AC at 50/60 Hz conditions, ensuring robust protection against overloads and short circuits. Its design includes a contact position indicator and local markings that facilitate operation and monitoring of the device's status. This switch is compatible with 35 mm symmetrical DIN rail mounting and features a mechanical durability of 20,000 cycles, as well as an electrical durability of 5,000 cycles. Its IP20 protection rating ensures safe operation in controlled environments.
- Rated current: 80 A at 30 °C
- Number of poles: 4P
- Breaking capacity: 10,000 A Icn
- Rated operating voltage: 380...415 V AC
- Main frequency: 50/60 Hz
- Mechanical durability: 20,000 cycles
- Protection rating: IP20
- Operating temperature: -25…70 °C
- Mounting: 35 mm symmetrical DIN rail
- Weight: 0.82 kg
