C120H 1P 100A C 15000A 240/415V MINIATUR
C120H 1P 100A C 15000A 240/415V MINIATUR

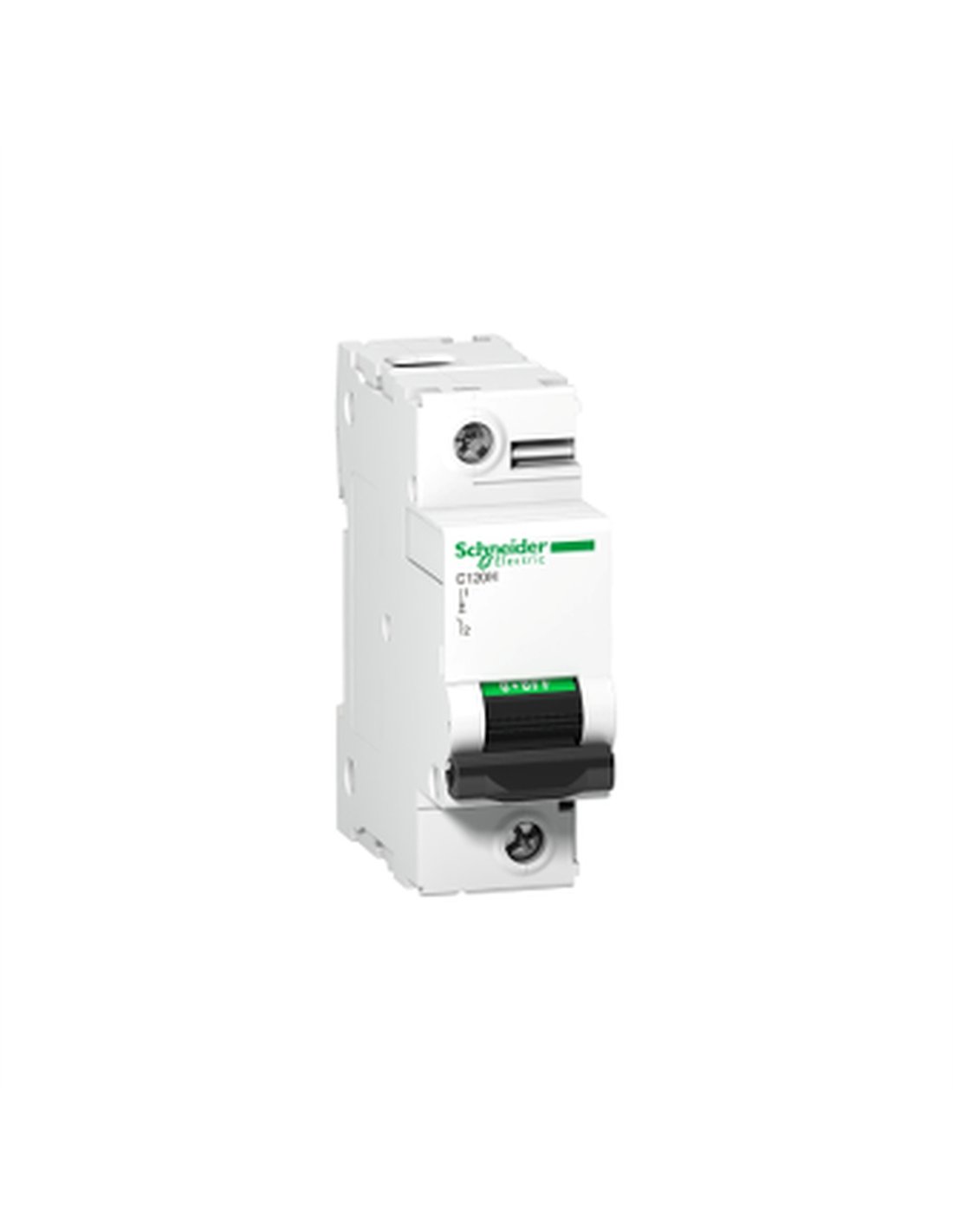

MINIATUR SCHNEIDER automatic switch 100A 1P 380-415V C120H

IMPO A9N18447
Available
€65.91
VAT included
Dardo Plus C120H miniature circuit breaker, designed for currents above 0.1 A. Single-pole, with a breaking capacity of up to 30 kA and a nominal voltage of 380-415 V AC. Ideal for residential and small commercial applications.
100 Items

Order now and receive it...

between 19-05-2026 and 20-05-2026  with  Correos / Paq Estandar

18-05-2026  with  MRW

between 18-05-2026 and 19-05-2026  with  Correos

Description

The Dardo Plus C120H miniature circuit breaker, part of the Acti 9 series, is a reliable and efficient solution for protecting electrical circuits in residential and small commercial applications. Designed to handle currents above 0.1 A, this device has 1P poles, making it ideal for various electrical configurations. Its rated current is 100 A at 30 °C, and it is compatible with alternating current (AC) networks. The thermal-magnetic tripping technology ensures a fast response to overloads and short circuits, while its breaking capacity of up to 30 kA Icu at 130 V AC guarantees robust protection. This circuit breaker also features a breaking capacity, allowing for safe circuit disconnection. Among its key technical characteristics are: Mains frequency: 50/60 Hz; Rated operating voltage: 380...415 V AC; Breaking capacity in service: 15 kA at 220...240 V AC; Mechanical durability: 20,000 cycles; Protection rating: IP20; Operating temperature: -30…60 °C; Mounting: 35 mm symmetrical DIN rail; Weight: 0.205 kg
  • Dimensions: 81 mm (height) x 27 mm (width) x 73 mm (depth)
  • Connections: Tunnel-type terminals

    • The C120H is a versatile and safe option for those looking for a high-quality, high-performance circuit breaker.

    Product Details

    Rated current (A)
    100 A
    Curve
    C
    EAN
    3606480380181
    Manufacturer
    SCHNEIDER
    No. of poles
    1P
    Reference
    SCHNEIDER A9N18447
    GPSR Safety warning
    No
    GPSR Manufacturer information
    Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
    GPSR EU responsible person
    Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
    GPSR e-mail manufacturer
    [email protected]
