ACTI9 4P 63A B 10kA Icu automatic switch at 440V AC 50/60Hz

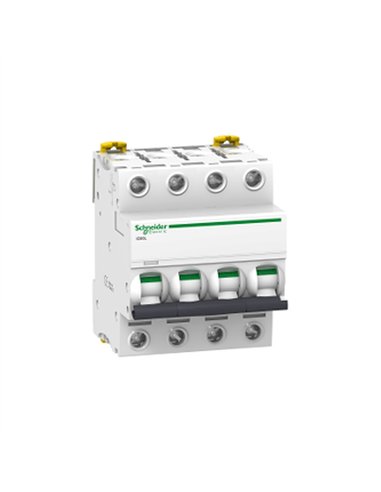

The ACTI9 IC60L 4P 63A B MINIATURE CIRCUIT BREAKER is a miniature circuit breaker from the Acti 9 range, designed to provide effective protection in residential and commercial electrical installations. This device is ideal for applications with currents above 0.1 A, ensuring safe and reliable operation under various network conditions.

With a rated current of 63 A and a 4-pole design, the IC60L provides exceptional breaking capacity, reaching up to 30 kA at 220–240 V AC and 15 kA at 380–415 V AC. Its thermal-magnetic trip technology ensures a rapid response to overloads and short circuits, while its Category A utilization rating makes it suitable for demanding applications. This device features a contact position indicator and a DIN rail mounting system, facilitating its installation. Furthermore, its IP20 protection rating makes it suitable for environments with a pollution level of 3, guaranteeing its durability and reliability under adverse conditions.

• Rated current: 63 A
• Number of poles: 4P
• Breaking capacity: up to 30 kA
• Rated insulation voltage: 500 V AC
• Operating temperature: -35…70 °C
• Electrical durability: 10,000 cycles
• Mounting: DIN rail
• Protection rating: IP20
• Dimensions: 85 mm x 72 mm x 78.5 mm
• Weight: 0.5 kg
