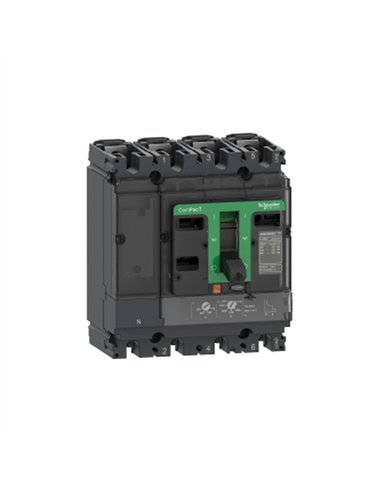

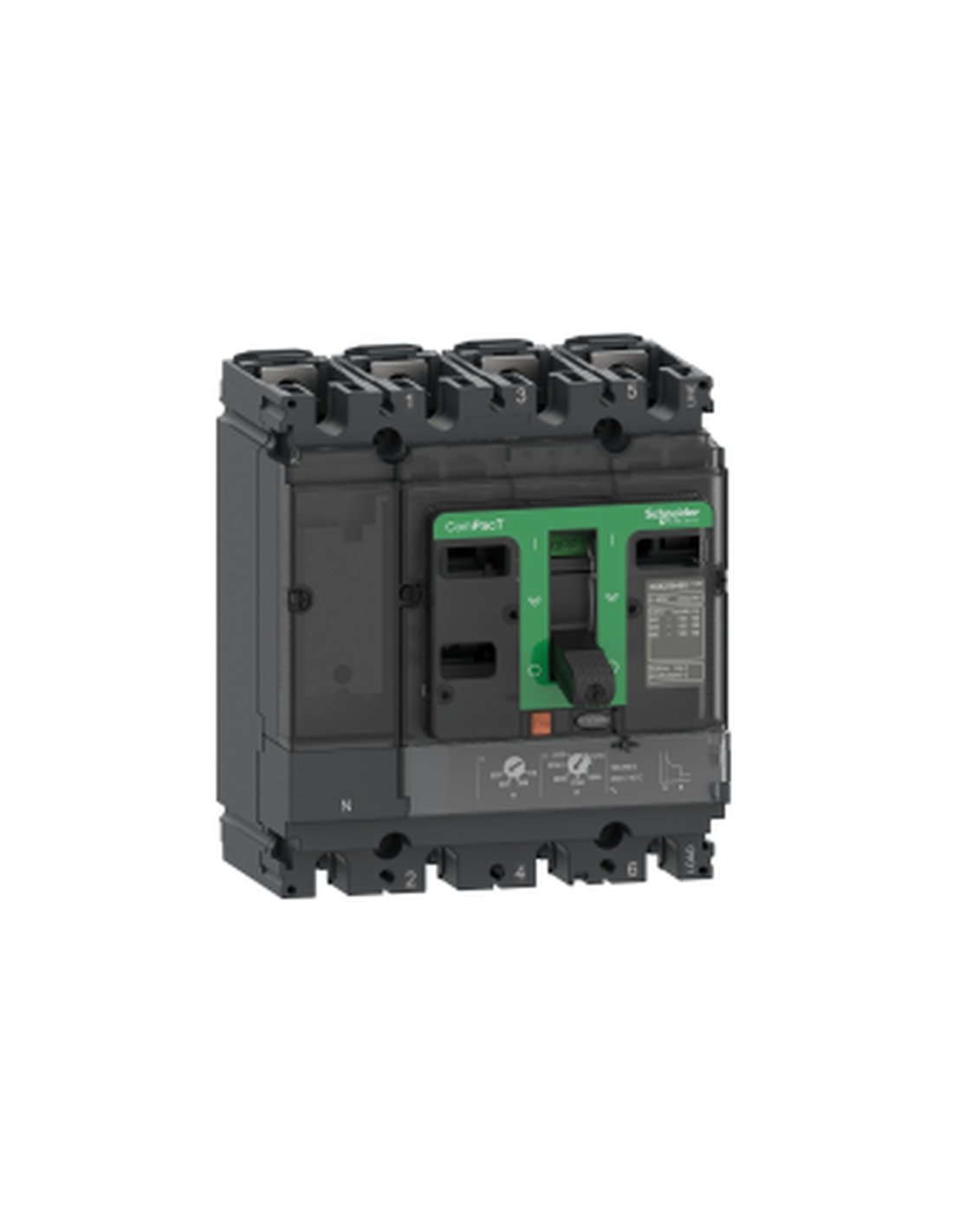

ULTRA SCHNEIDER automatic switch 100A 4P 36kA Icu 690V AC Thermal-magnetic

The NSX100F 36kA AC 4P4R 100A TMD circuit breaker from the ComPacT range represents the new generation of electrical protection devices. Designed for current applications above 0.1 A, this model offers a robust and reliable solution for power management in industrial and commercial environments.

With a rated current of 100 A at 40 °C and a rated operating voltage of up to 690 V AC, the NSX100F is ideal for 50/60 Hz AC networks. Its breaking capacity is remarkable, reaching up to 85 kA Icu at 220/240 V and 36 kA Icu at 380/415 V, ensuring effective protection against overloads and short circuits.

This device features a TM-D control unit that utilizes thermal-magnetic technology, offering LIG protection functions.

• Number of poles: 4P
• Rated current: 100 A at 40 °C
• Rated insulation voltage: 800 V AC
• Breaking capacity: 36 kA at 380/415 V AC
• Mechanical durability: 50,000 cycles
• Protection rating: IP40
• Operating temperature: -25…70 °C
• Weight: 2.4 kg
• Dimensions: 140 mm x 161 mm x 86 mm
• Certifications: CCC, Class II
