C60L 3P 63A C
C60L 3P 63A C

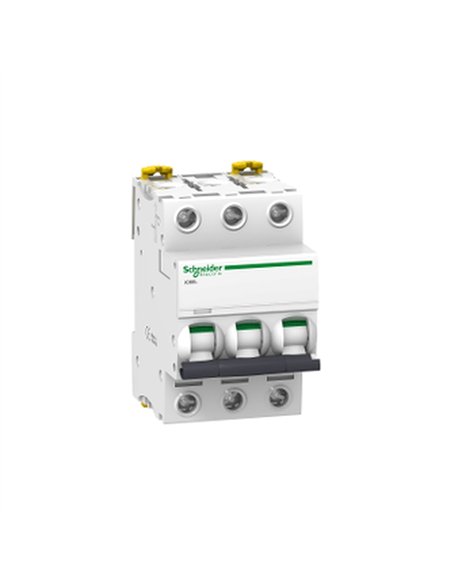

SCHNEIDER ACTI 9 63A 3P 10kA miniature circuit breaker

IMPO A9F94363
Available
€229.52
VAT included
Acti 9 iC60 RCBO miniature circuit breaker, model IC60L, with 3 poles and a rated current of 63 A. Designed for DC and AC current, it offers thermal-magnetic protection and a breaking capacity of up to 70 kA. Ideal for small businesses and residences.
10 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The Acti 9 iC60 RCBO is a high-efficiency miniature circuit breaker designed for applications requiring a current above 0.1 A. This device belongs to the Acti 9 range and is characterized by its robustness and reliability in protecting electrical circuits. With 3 poles and a rated current of 63 A, the iC60 is ideal for residential and small commercial environments.

This circuit breaker features thermal-magnetic trip unit technology, ensuring a fast response to overloads and short circuits.

Its breaking capacity is remarkable, reaching up to 30 kA Icu at 220-240 V AC and 20 kA Icu in DC, ensuring effective protection under various operating conditions. Among its technical characteristics are: Mains frequency: 50/60 Hz Nominal operating voltage: 220-240 V AC, 380-415 V AC, 440 V AC Peak voltage resistance: 6 kV Protection rating: IP20 Mechanical durability: 20,000 cycles Operating ambient temperature: -35-70 °C DIN rail mounting, with connections for rigid and flexible cables Contact position indicator and trip signal
  • Height: 85 mm, Width: 54 mm, Depth: 78.5 mm
  • Weight: 0.375 kg

    • The Acti 9 iC60 RCBO is a reliable solution for the protection of electrical circuits, ensuring safe and efficient operation in various applications.

    Product Details

    Curve C
    EAN 3606480084614
    Manufacturer SCHNEIDER
    No. of poles 3P
    Reference SCHNEIDER A9F94363
    Rated current (A) 63 A
    10 Items

    Reviews (0)

    No reviews

    GPSR

    Fabricante Schneider Electric España, S.A.
    Dirección postal Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona
    Contacto electrónico [email protected]
    Teléfono +34 930289900
    Referencia IMPO A9F94363
    EAN 3606480084614
