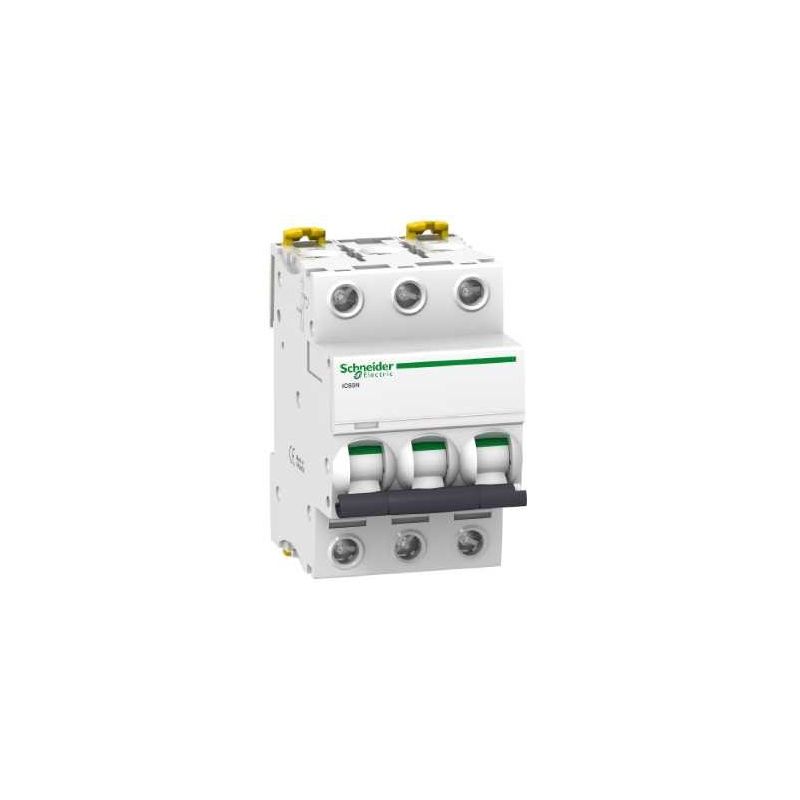

INT.AUT Schneider iC60N 3P 10A D 6000A Acc
 Automatic circuit breaker iC60N 3P 10A curve-D
INT.AUT Schneider iC60N 3P 10A D 6000A Acc
 Automatic circuit breaker iC60N 3P 10A curve-D

Automatic circuit breaker iC60N 3P 10A curve-D

IMPO A9F75310
Available
€86.67
VAT included
iC60N Acti 9 thermal-magnetic circuit breaker, 3P, 10A, curve D, 50/60 Hz, IP20, Thermal-magnetic, Suitable for sectioning, Contact position indicator, Control type: Toggle, Local signaling: Trip indicator, Mode Mounting Bracket: Fixed, Mounting Bracket: DIN Rail, Earth Leakage Protection: Freestanding Block, 85x54x78.5mm, 0.375kg, White. Breaking capacity: 20 kA Icu according to IEC 60947-2, 220...240 V AC 50/60 Hz, 6000 A Icn according to EN 60898-1, 400 V AC 50/60 Hz, 36 kA Icu of according to IEC 60947-2, 12...133 V AC 50/60 Hz, 20 kA Icu according to EN 60947-2, 220...240 V AC 50/60 Hz, 10 kA Icu according to EN 60947 -2, 380...415 V AC 50/60 Hz, 10 kA Icu conforming to IEC 60947-2, 380...415 V AC 50/60 Hz, 36 kA Icu conforming to EN 60947-2, 12 ...133 V AC 50/60 Hz, 6 kA Icu according to EN 60947-2, 440 V AC 50/60 Hz, 6000 A Icn according to IEC 60898-1, 400 V AC 50/60 Hz, 10 kA Icu conforming to EN 60947-2, 125...180 V DC, 10 kA Icu conforming to IEC 60947-2, 125...180 V DC, 6 kA Icu conforming to IEC 60947-2, 440 V AC 50/60 Hz, utilization category: category A according to IEC 60947-2, category A according to EN 60947-2, suitable for isolating: yes according to EN 60898-1, yes according to EN 60947- 2, yes according to IEC 60898-1, yes according to IEC 60947-2, standards: EN 60898-1, IEC 6 0898-1, EN60947-2, IEC60947-2.
100 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Product Details

Curve D
EAN 3606480080883
Manufacturer Schneider
No. of poles 3P
Reference SCHNEIDER A9F75310
Nominal voltage (V) 240
Rated current (A) 10
Curve D
EAN 3606480080883
Manufacturer Schneider
No. of poles 3P
Reference SCHNEIDER A9F75310
Nominal voltage (V) 240
Rated current (A) 10
100 Items

Reviews (0)

No reviews

GPSR

Fabricante Schneider Electric España, S.A.
Dirección postal Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona
Contacto electrónico [email protected]
Teléfono +34 930289900
Referencia IMPO A9F75310
EAN 3606480080883
