INT.AUT Legrand DX3 1PN 32A C 6000A Acc
INT.AUT Legrand DX3 1PN 32A C 6000A Acc

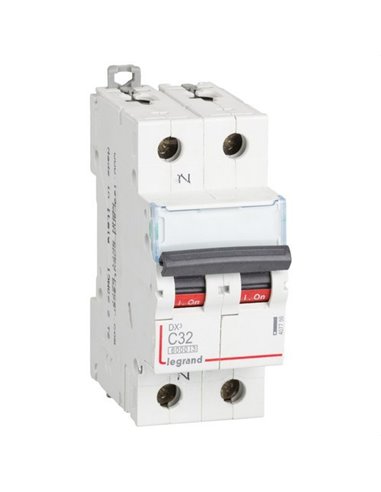

Circuit breaker DX3 6/10kA-CP + N 32A

LEGRAND 407759
Available
€41.59
VAT included

The DX3 6/10KA-C Circuit Breaker is a single pole circuit breaker with neutral, with a nominal intensity of 32A and C curve. Here are some of its technical characteristics:

  • Number of modules: 2.
  • Operating voltage: 230 V~.
  • Breaking capacity: 6000A - IEC 60898-1.
  • Available curves: C, B and D.
  • Certifications: IEC 60898-1, IEC 60947-2.
  • Admits connection with unipolar combs and multipolar combs.
  • Breaking capacity: 10 kA - IEC 60947-2 - 400 V~.
  • Marked with the N mark (except 1P+N 2 modules and curve B).
  • Compatible with differential blocks, motorized controls and DX³ control and signaling auxiliaries.
  • Incorporated label holder.

In summary, the DX3 6/10KA-C Circuit Breaker is a high quality circuit breaker, with a wide range of technical and safety features, which make it ideal for a variety of applications in the field of electricity. In addition, its connection capacity with unipolar and multipolar combs and its compatibility with differential blocks, motorized controls and DX³ control and signaling auxiliaries, make this product a highly adaptable and functional option for many electrical projects.

6 Items

Order now and receive it...

✔ 30-06-2025   with  MRW

✔ between 30-06-2025 and 01-07-2025   with  Correos

Product Details

High
77,8
Width
35,4
EAN
3245064077590
Manufacturer
LEGRAND
Weight (kg)
0
Protection
IP20
Reference
LEGRAND 407759
Certification
CE
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
LEGRAND GROUP ESPAÑA, S.L. / Spain / C/ Hierro 56 – 28850 Torrejón de Ardoz (Madrid) / sat.espana@legrandgroup.es / +34 916561812
GPSR EU responsible person
LEGRAND GROUP ESPAÑA, S.L. / Spain / C/ Hierro 56 – 28850 Torrejón de Ardoz (Madrid) / sat.espana@legrandgroup.es / +34 916561812
GPSR e-mail manufacturer
sat.espana@legrandgroup.es
