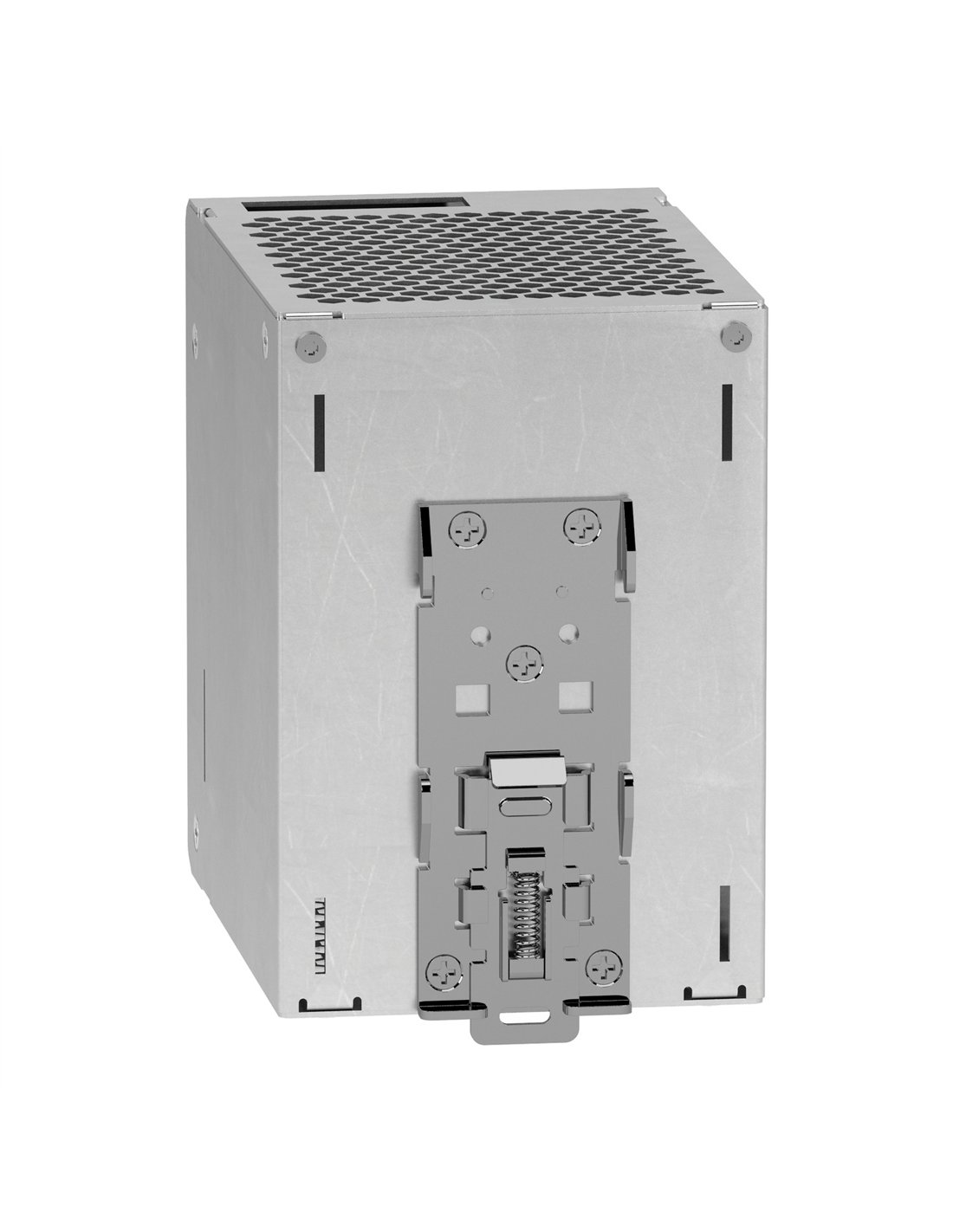

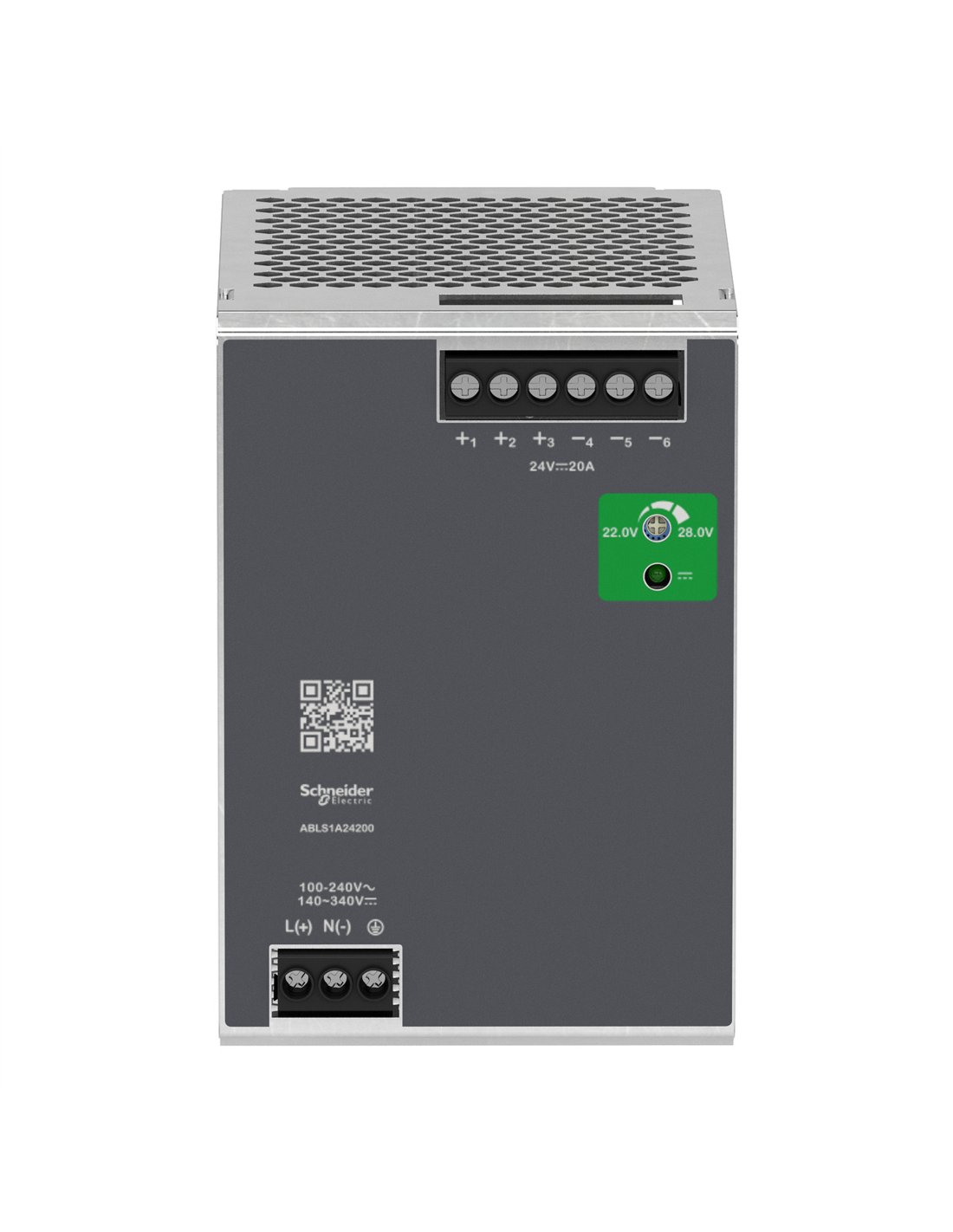

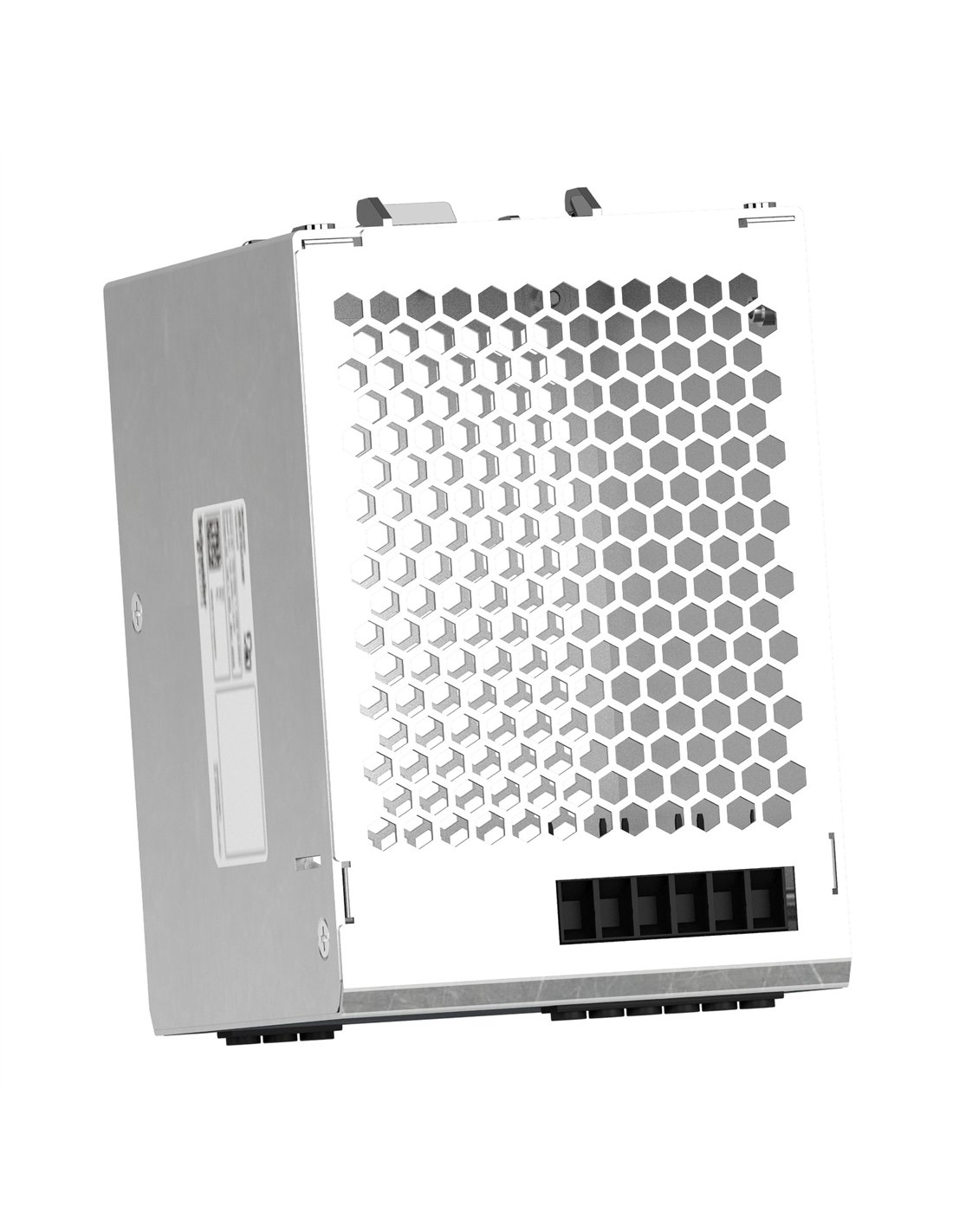

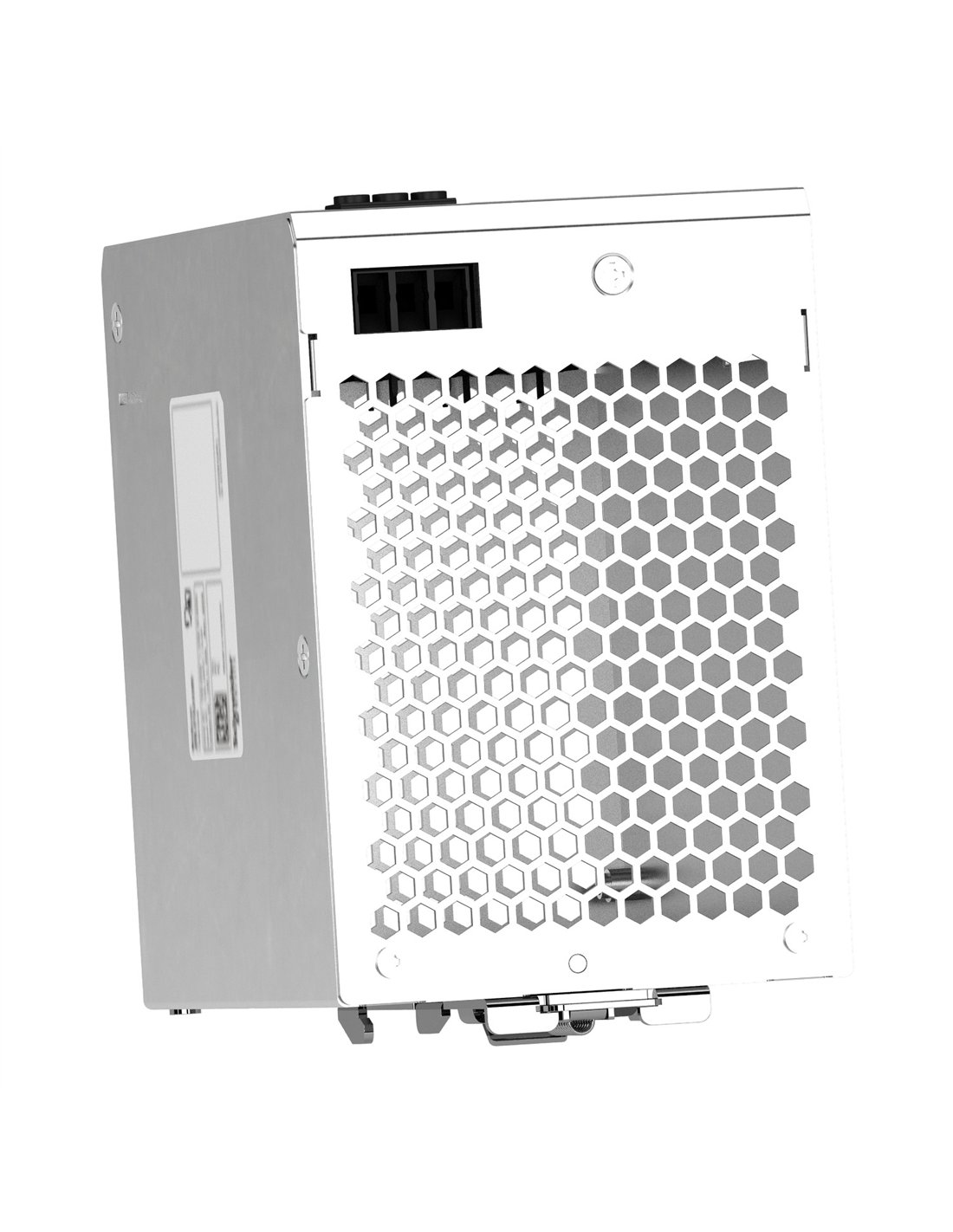

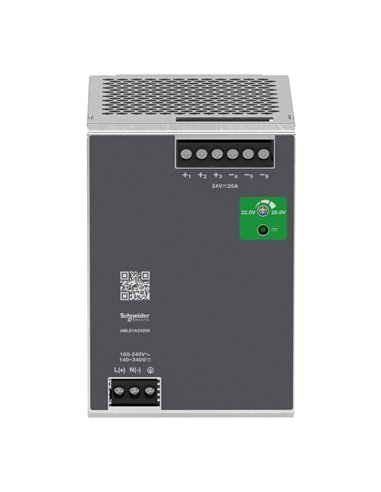

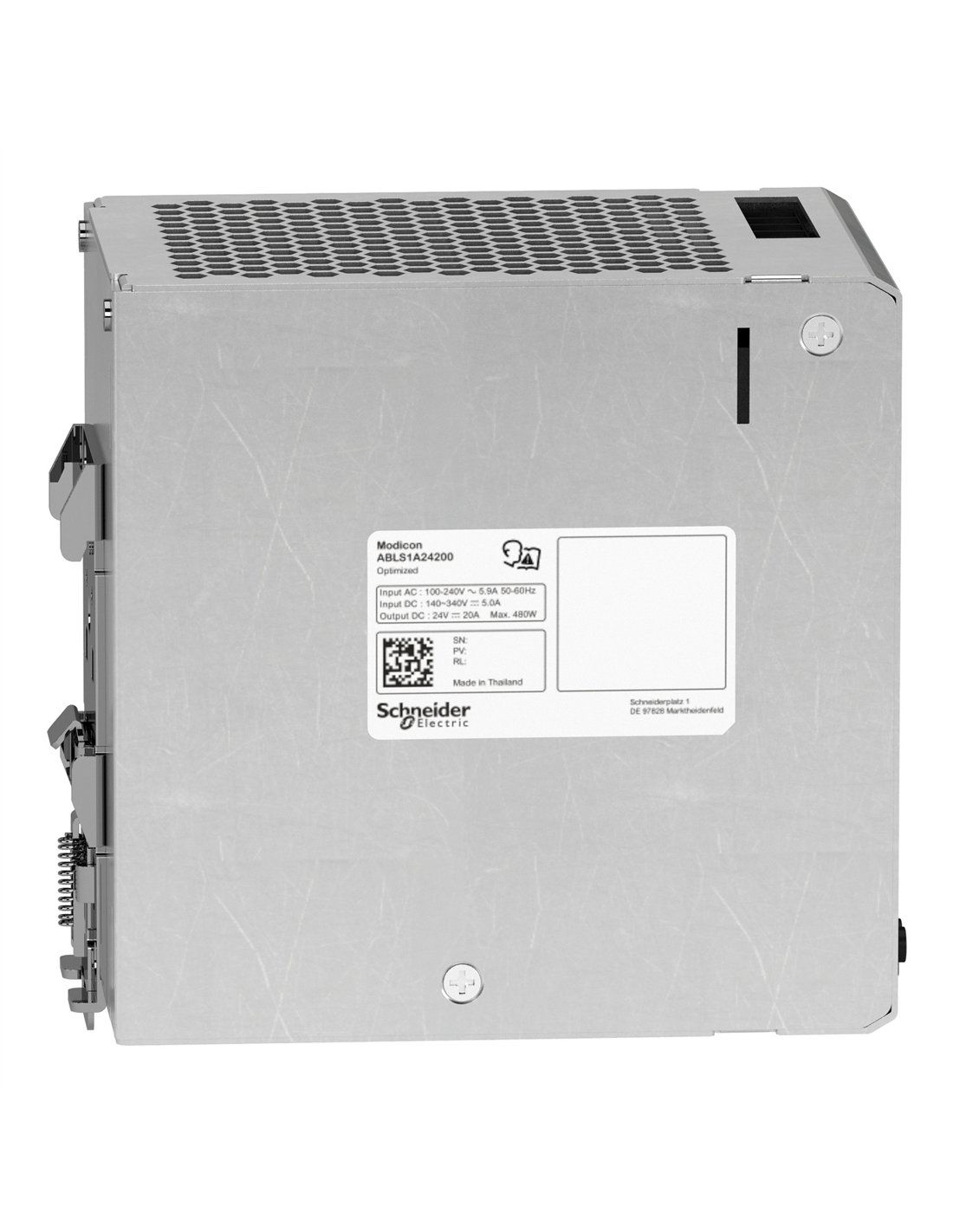

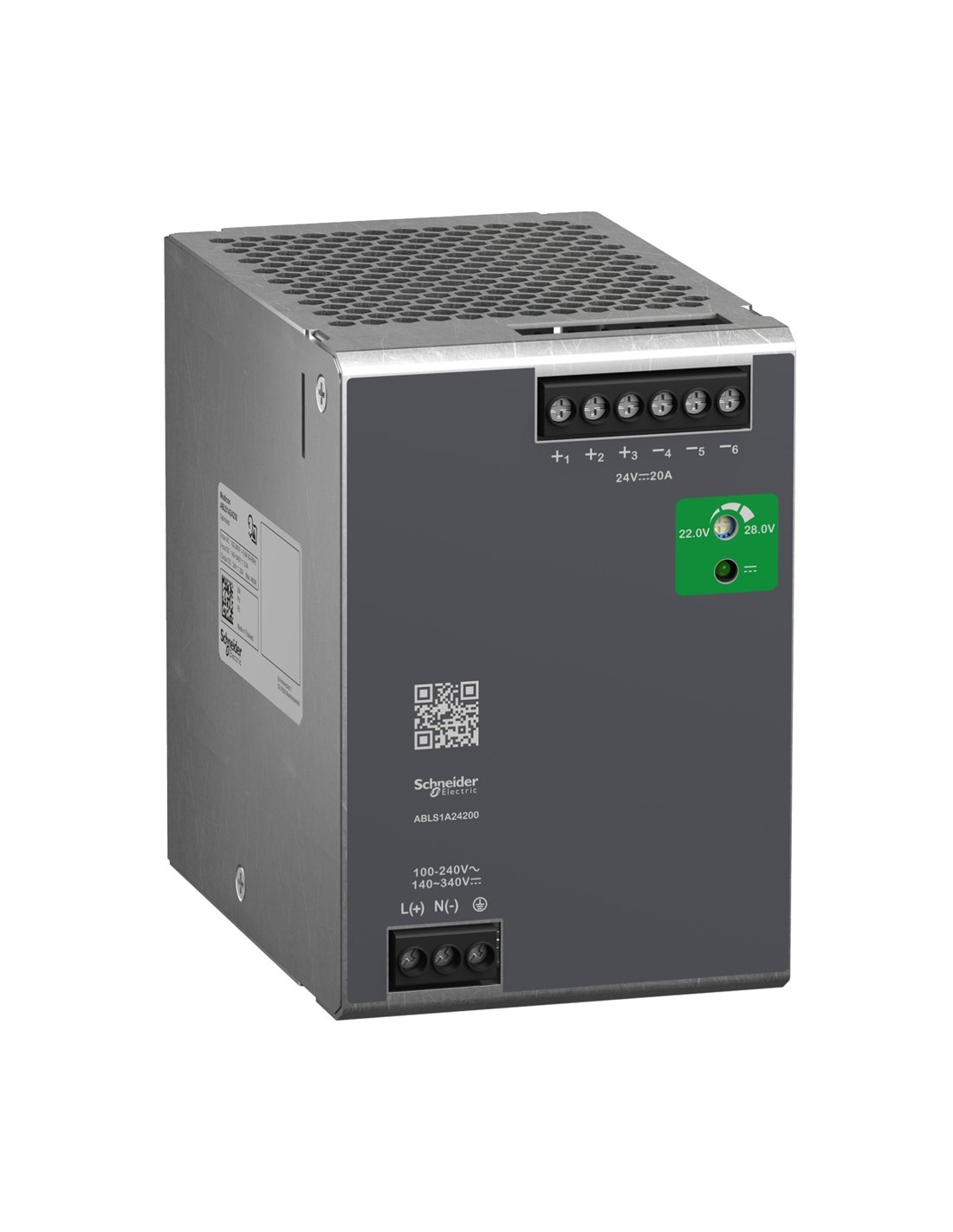

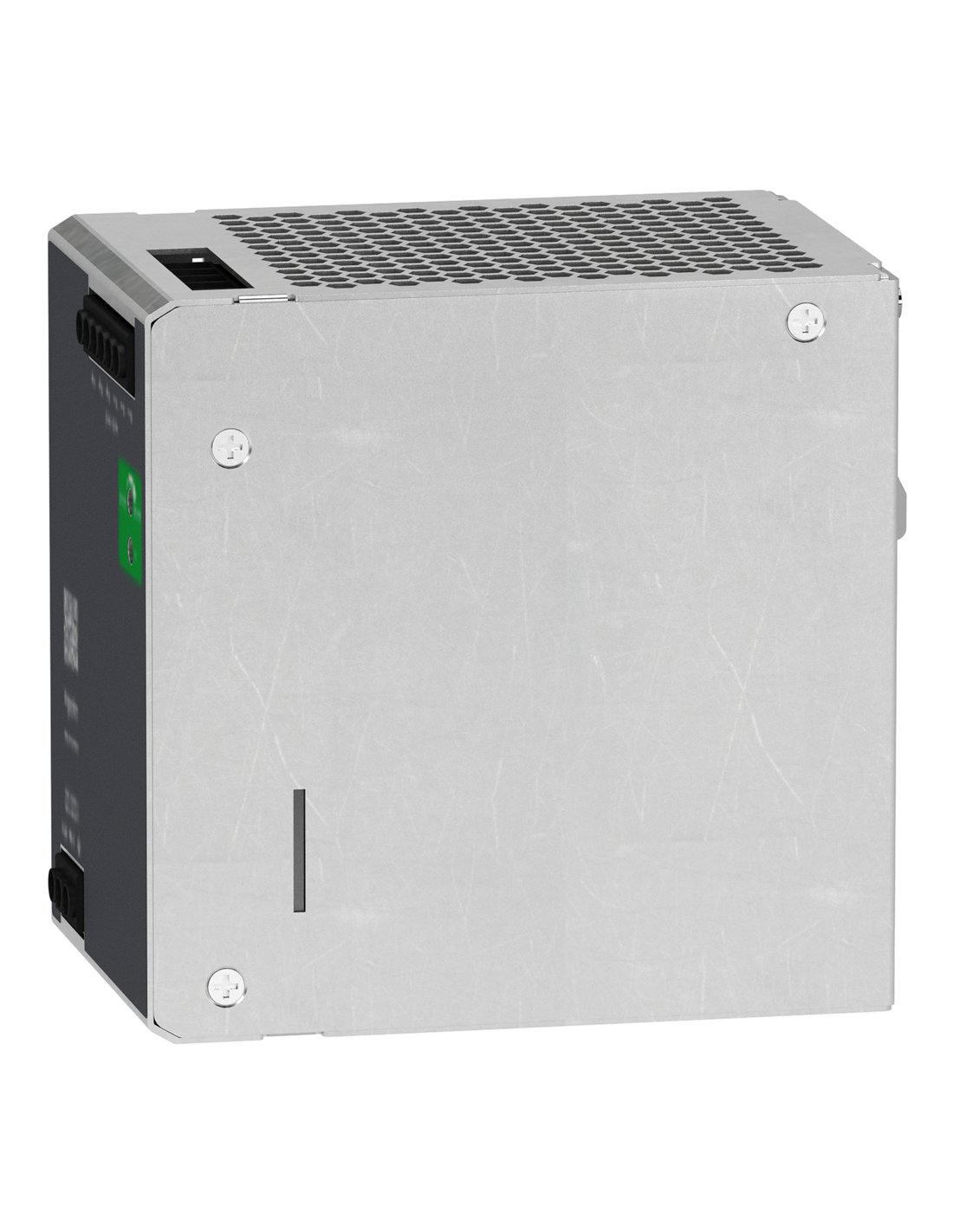

MODICON 24V 20A single-phase power supply, overload and short circuit protection

The Modicon Premium regulated power supply is an efficient and reliable solution for automated systems that require a stable power supply. With an input range of 100-240 V AC and an output of 24 V DC at 20 A, this device is designed for both simple and complex applications, ensuring a high degree of output voltage stability.

• Product Type: Regulated Power Supply
• Rated Power: 480 W
• Built-in protection against overload, short circuit, overvoltage, and undervoltage
• Input Voltage Range: 100-240 V AC single-phase
• Input Current: 45 A at 115 V, 90 A at 230 V
• Start-up Time: Less than 1.5 s
• Residual Fluctuation: Less than 120 mV
• Connections: Screw terminals for cables up to 4 mm²
• Protection Rating: IP20
• Operating temperature: -20 to 50 °C
• Estimated lifespan: 10 years
