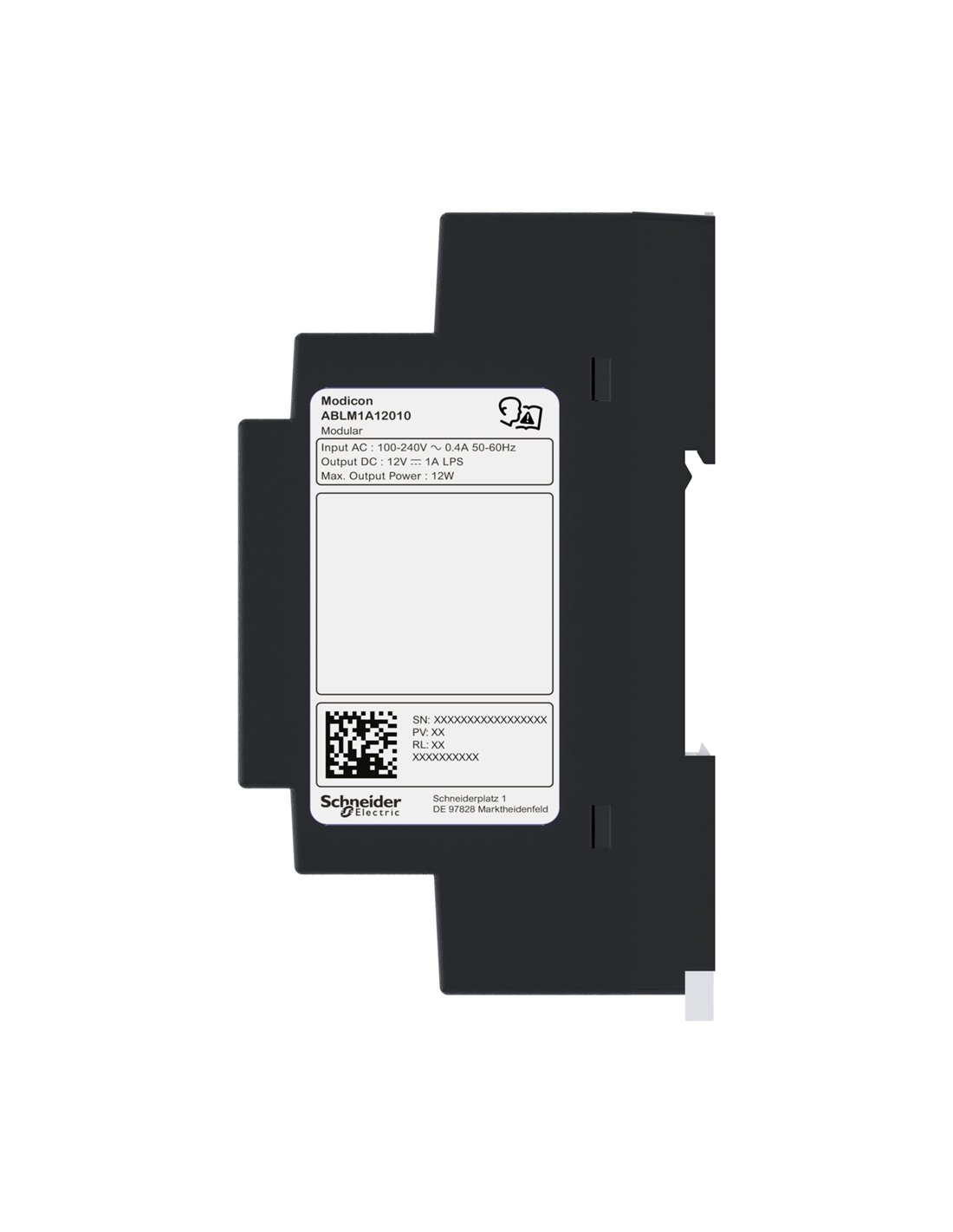

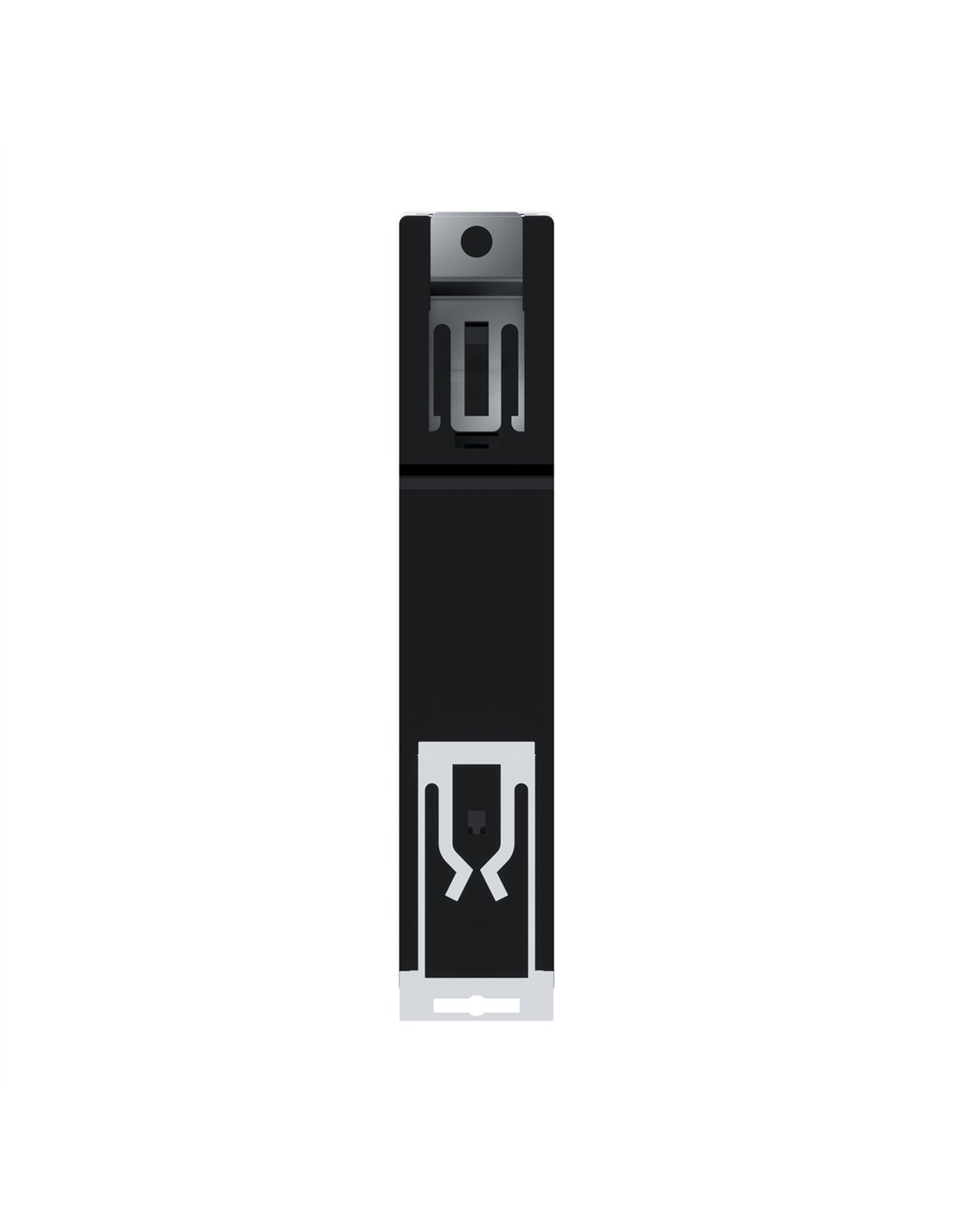

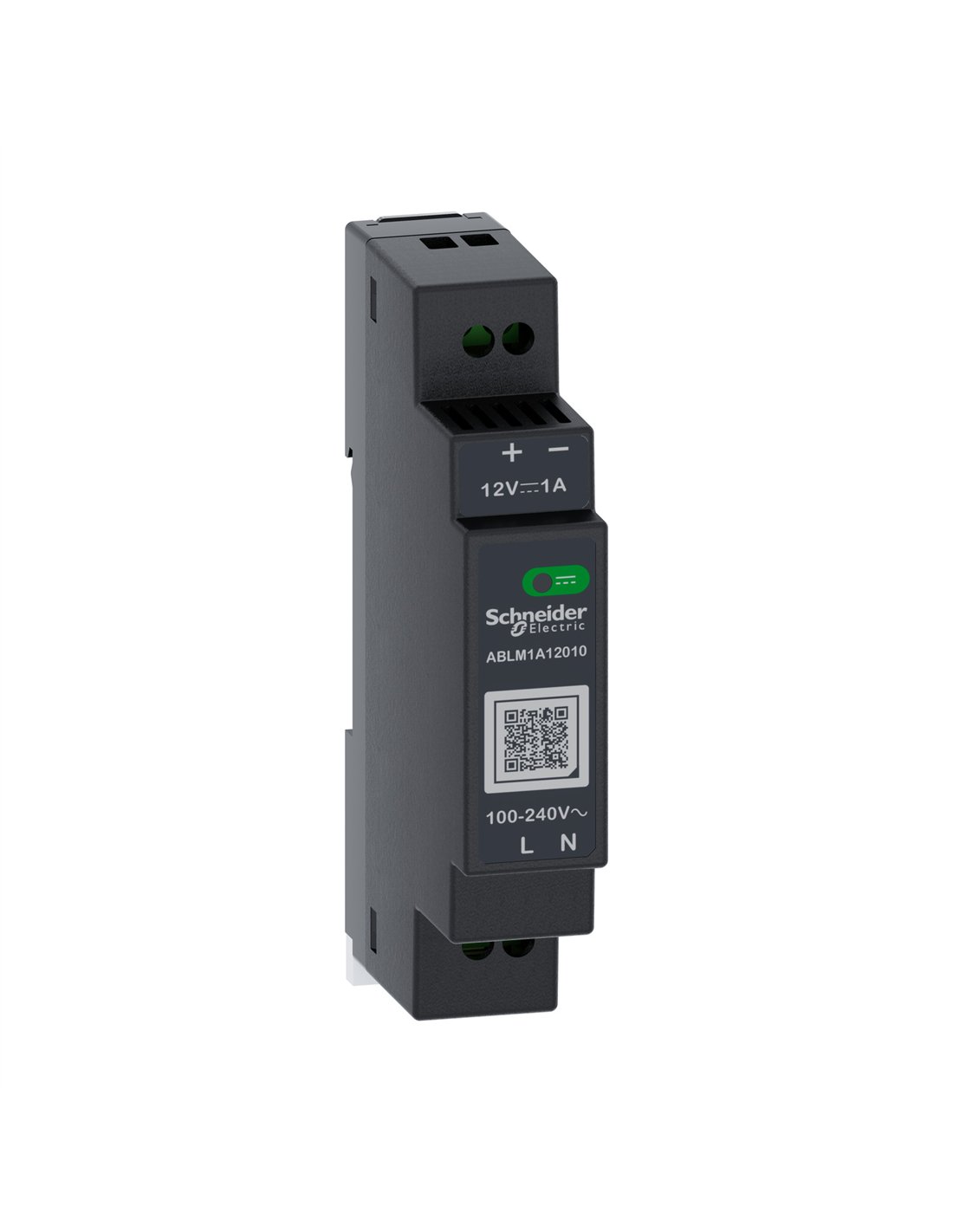

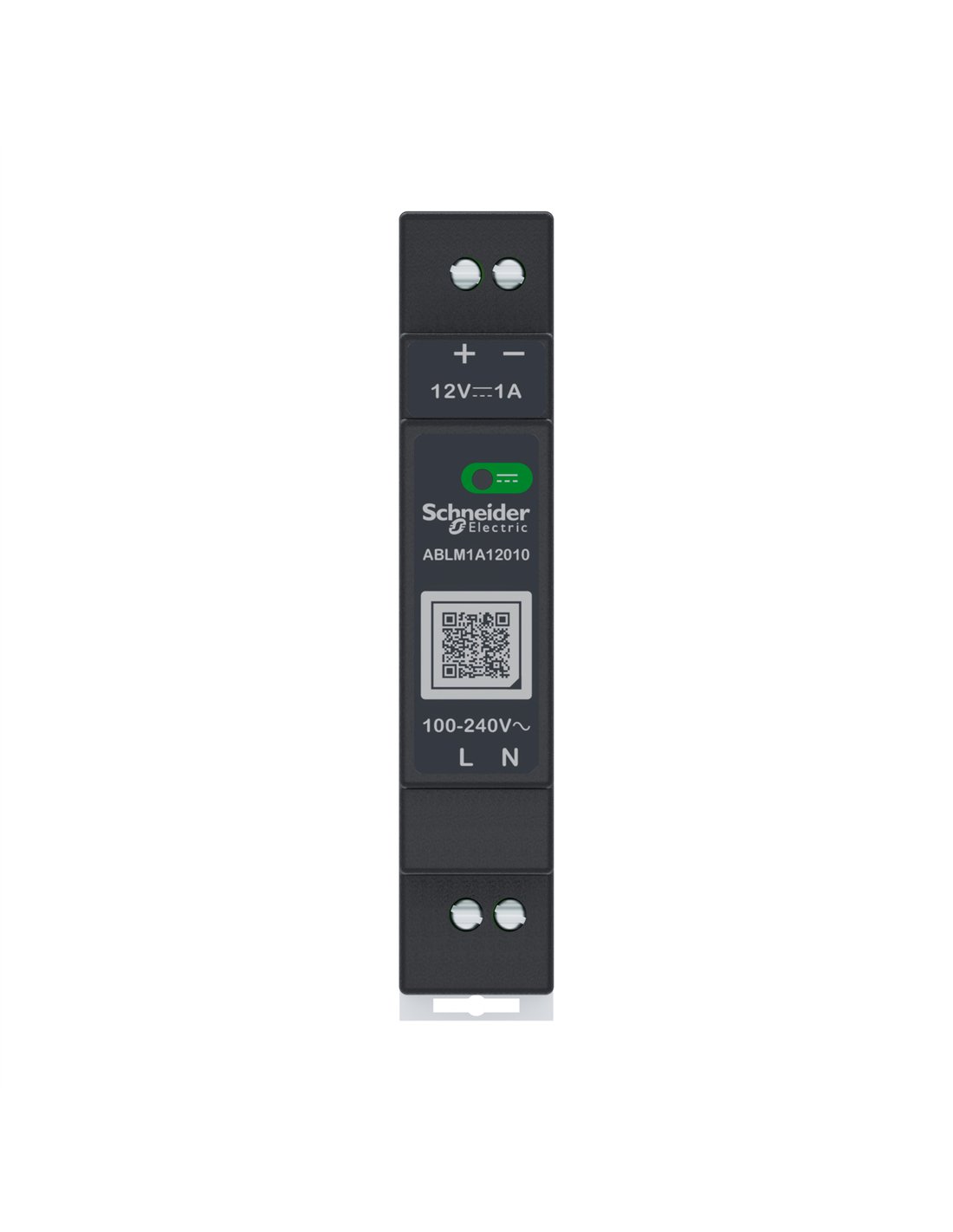

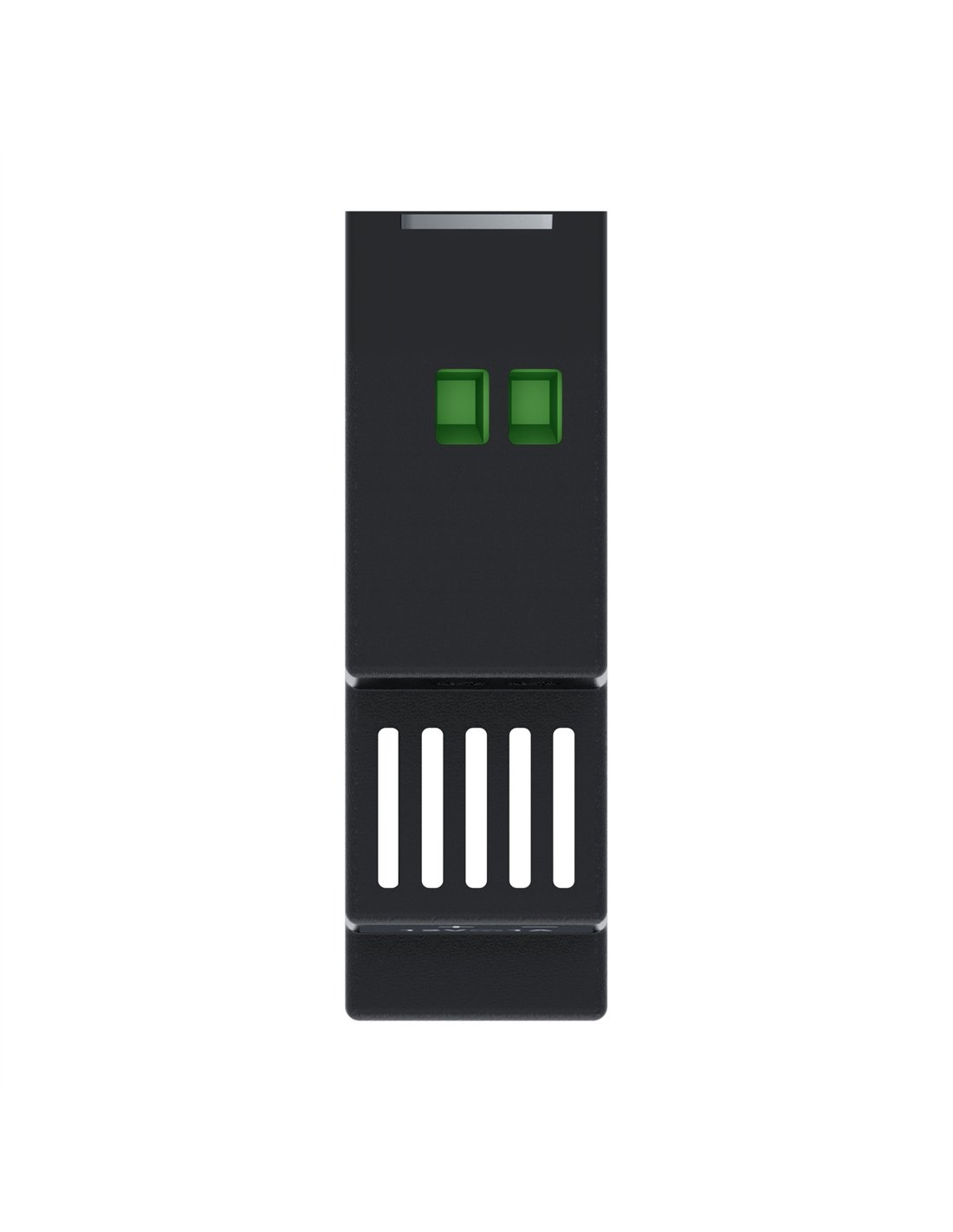

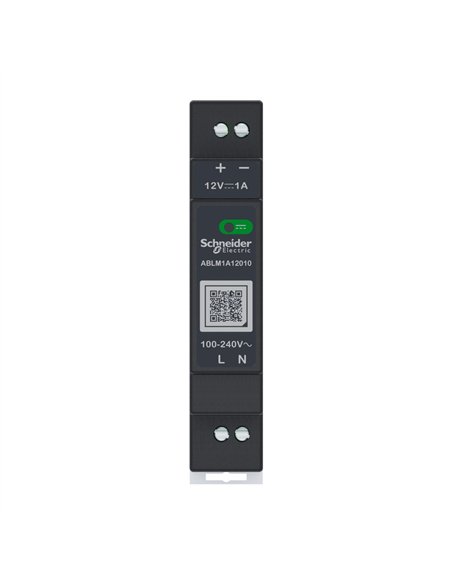

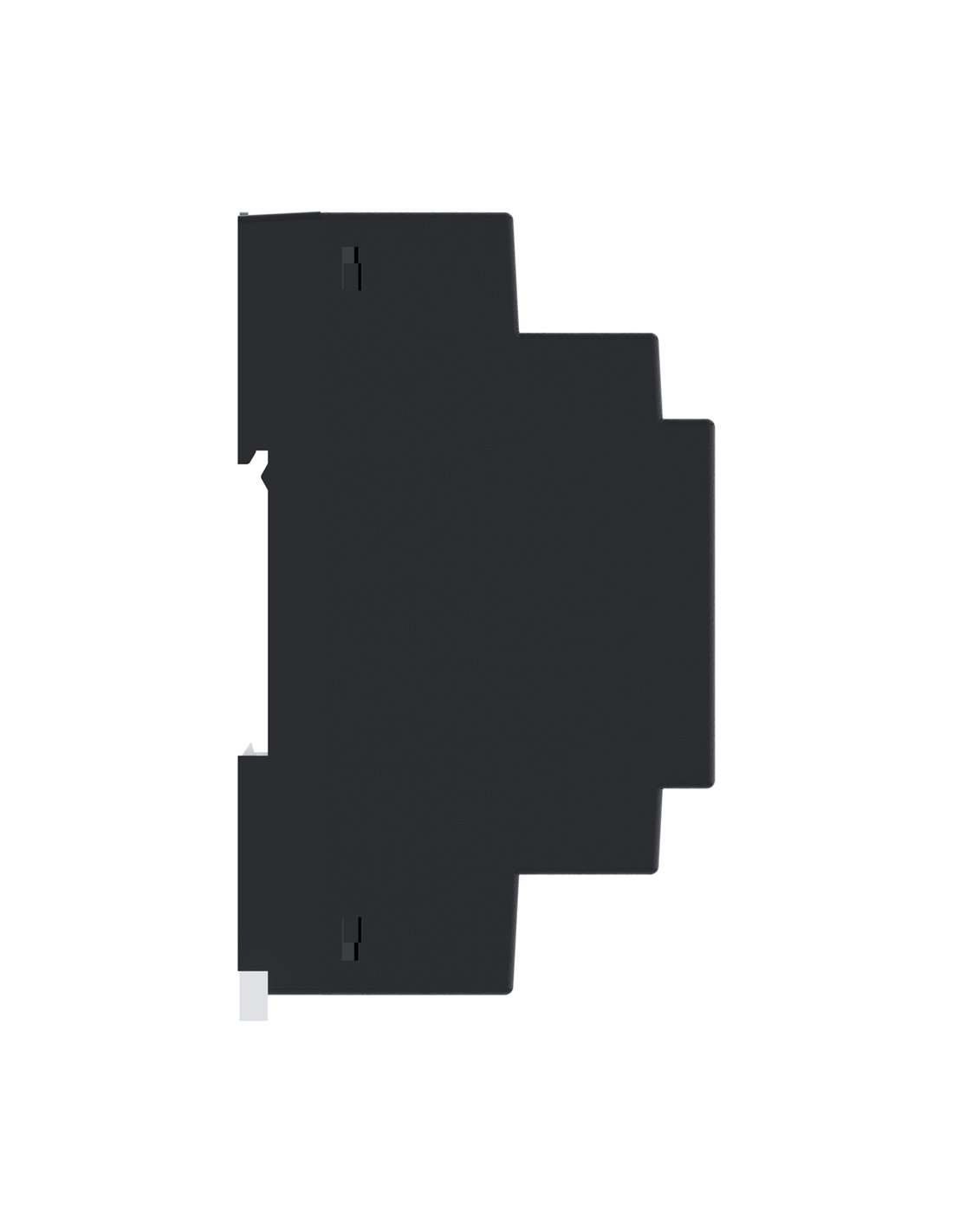

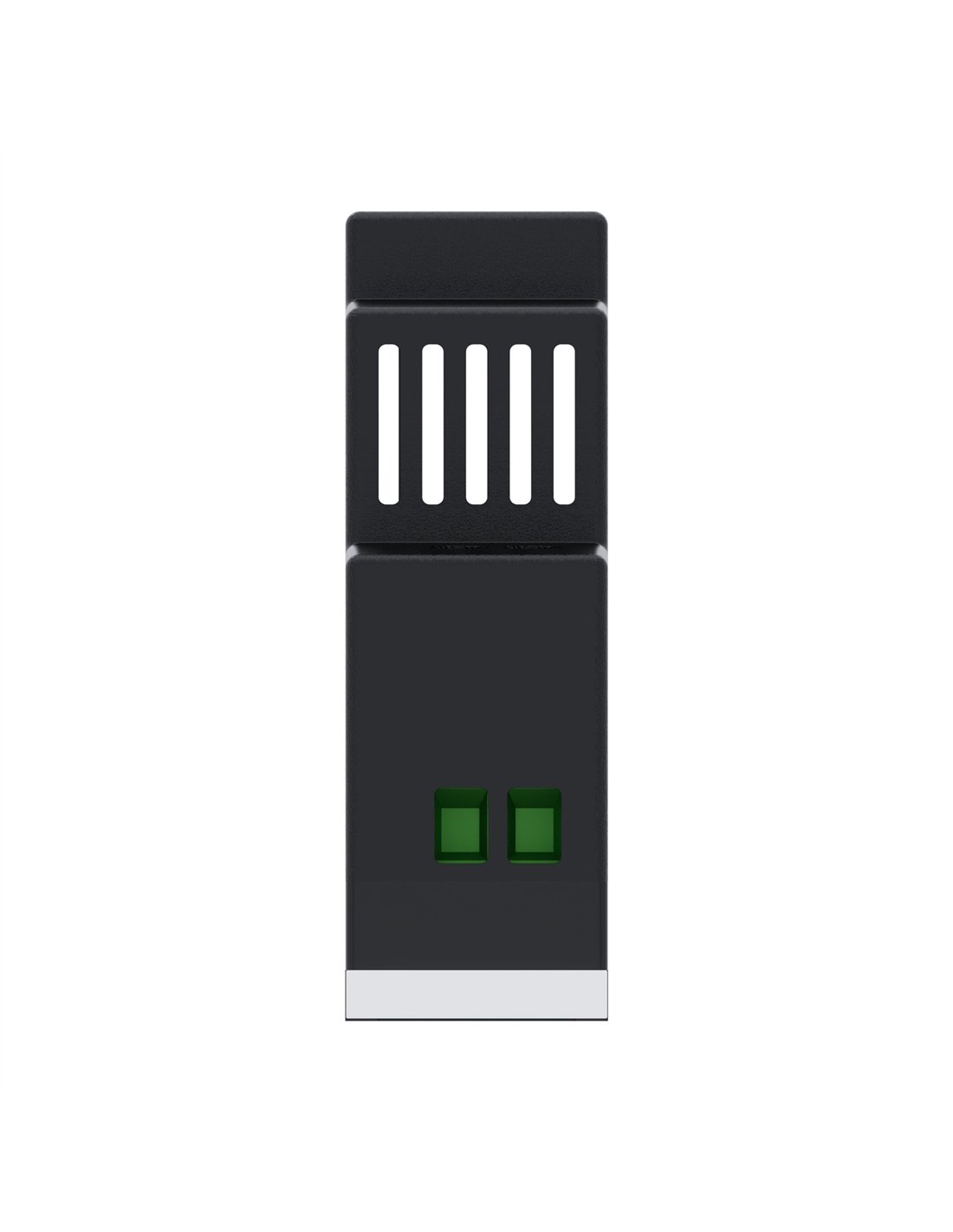

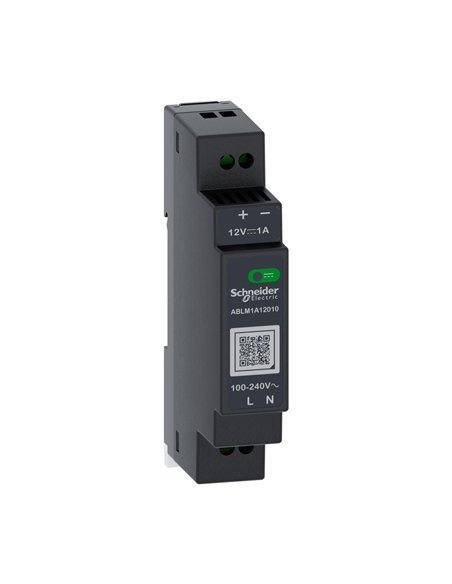

MODICON 12V 1A single-phase regulated power supply with integrated IP20 protection

IMPO ABLM1A12010
Available
€88.09
VAT included
Regulated power supply designed for automated applications, with an input range of 100-240 V AC and an output of 12 V DC at 1 A. It offers protection against overloads, short circuits and overvoltages, ensuring high stability in the output voltage and reliable operation under various conditions.
7 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The Modicon Premium regulated power supply is an efficient and reliable solution for automated systems. With an input range of 100-240V AC and an output of 12V DC at 1A, this device is designed to offer a high degree of stability and protection in various industrial applications.

  • Product Type: Modular Regulated Power Supply
  • Input Voltage: 100-240V AC Single Phase
  • Rated Power: 12W
  • Output Voltage: 12V DC
  • Output Current: 1A
  • Built-in protection against overload, short circuit, overvoltage, and undervoltage
  • Mainline Frequency Range: 50-60 Hz
  • Connections: Screw terminals, compatible with AWG 20-16 cables
  • Protection Rating: IP20
  • Operating Temperature: -25 to 55 °C
  • Mean time between failures: 3,000,000 hours at 25 °C
  • Certifications: CE, cUL, RCM, among others

Product Details

EAN
3606481500113
Protection
IP20
Reference
IMPO ABLM1A12010
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
