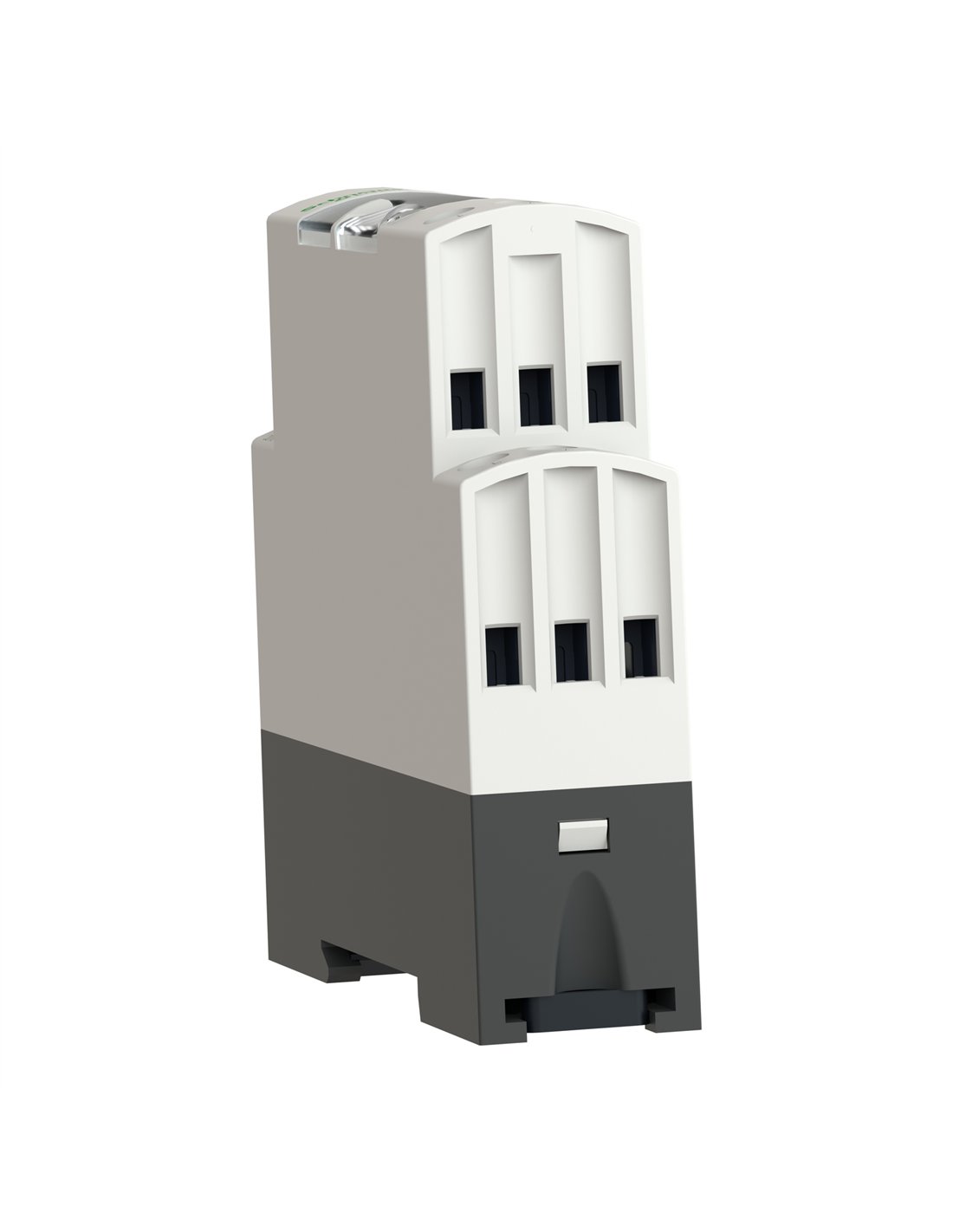

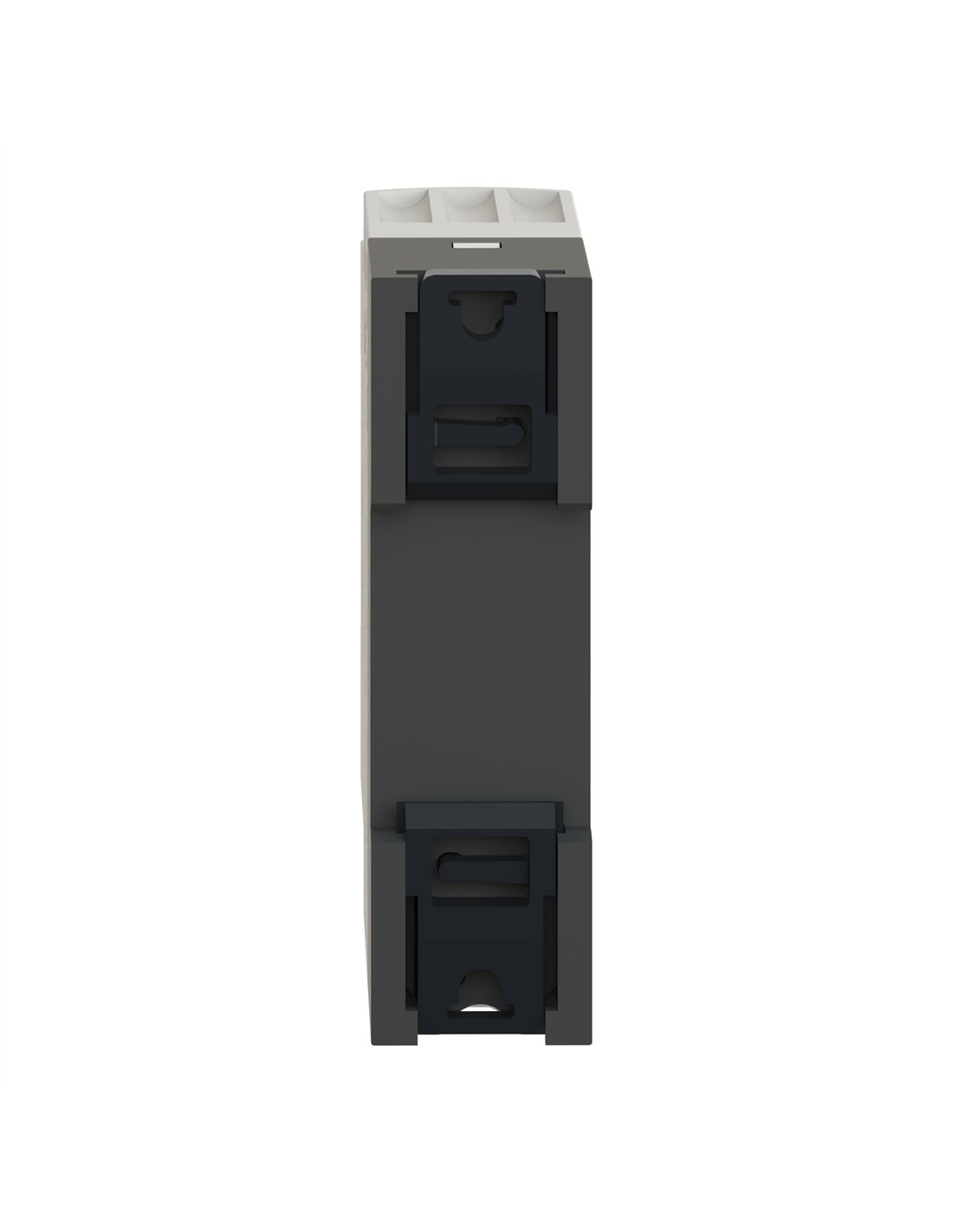

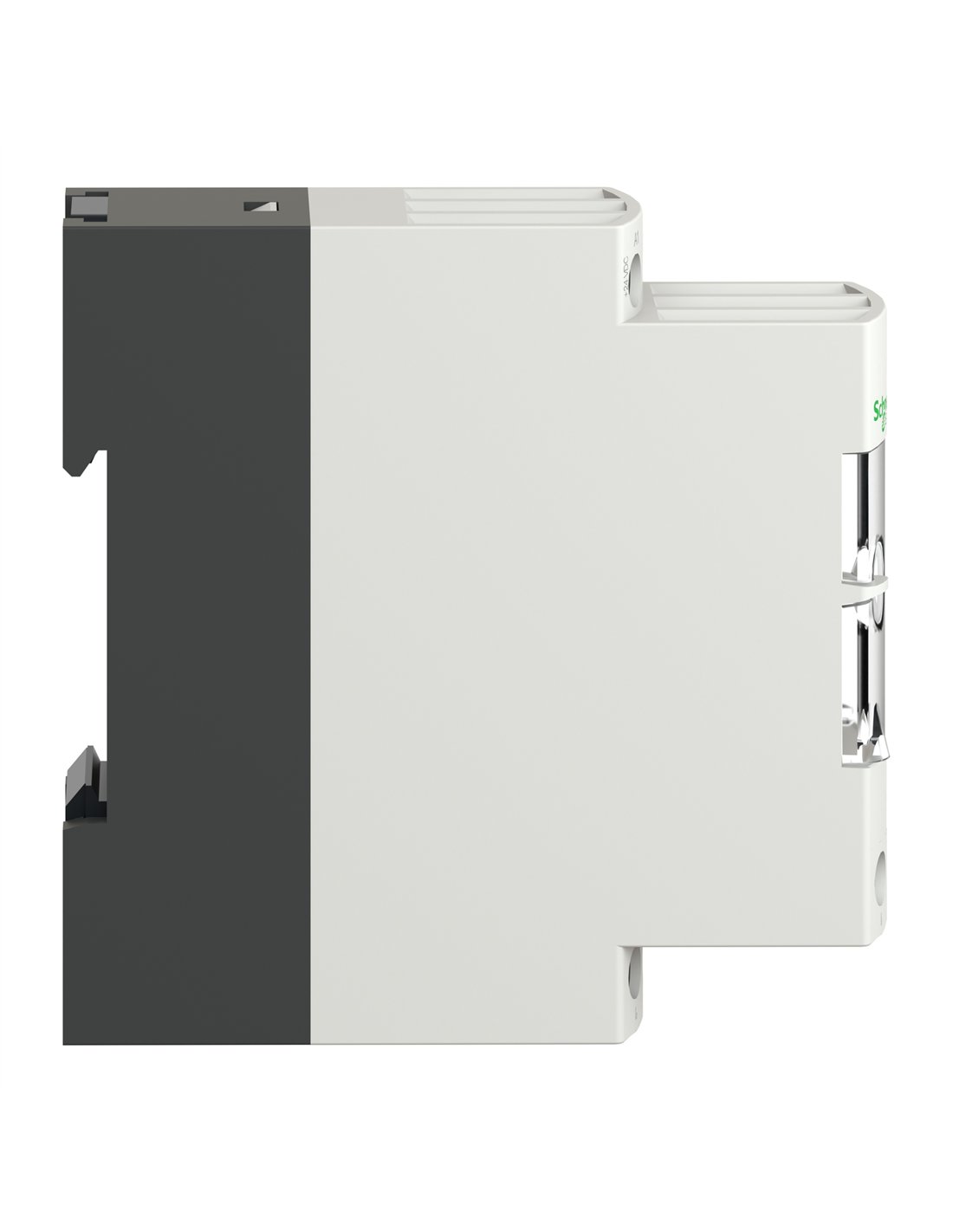

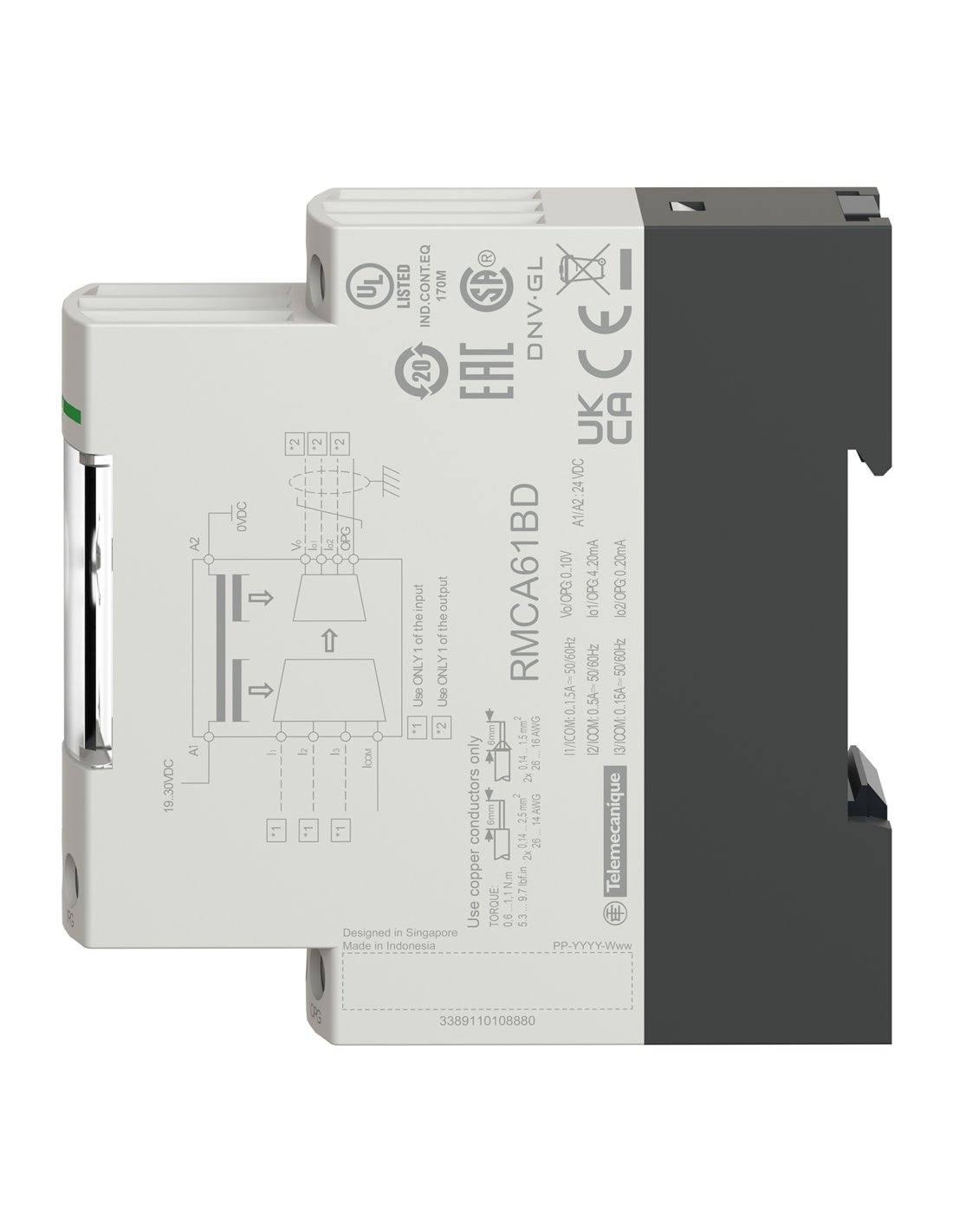

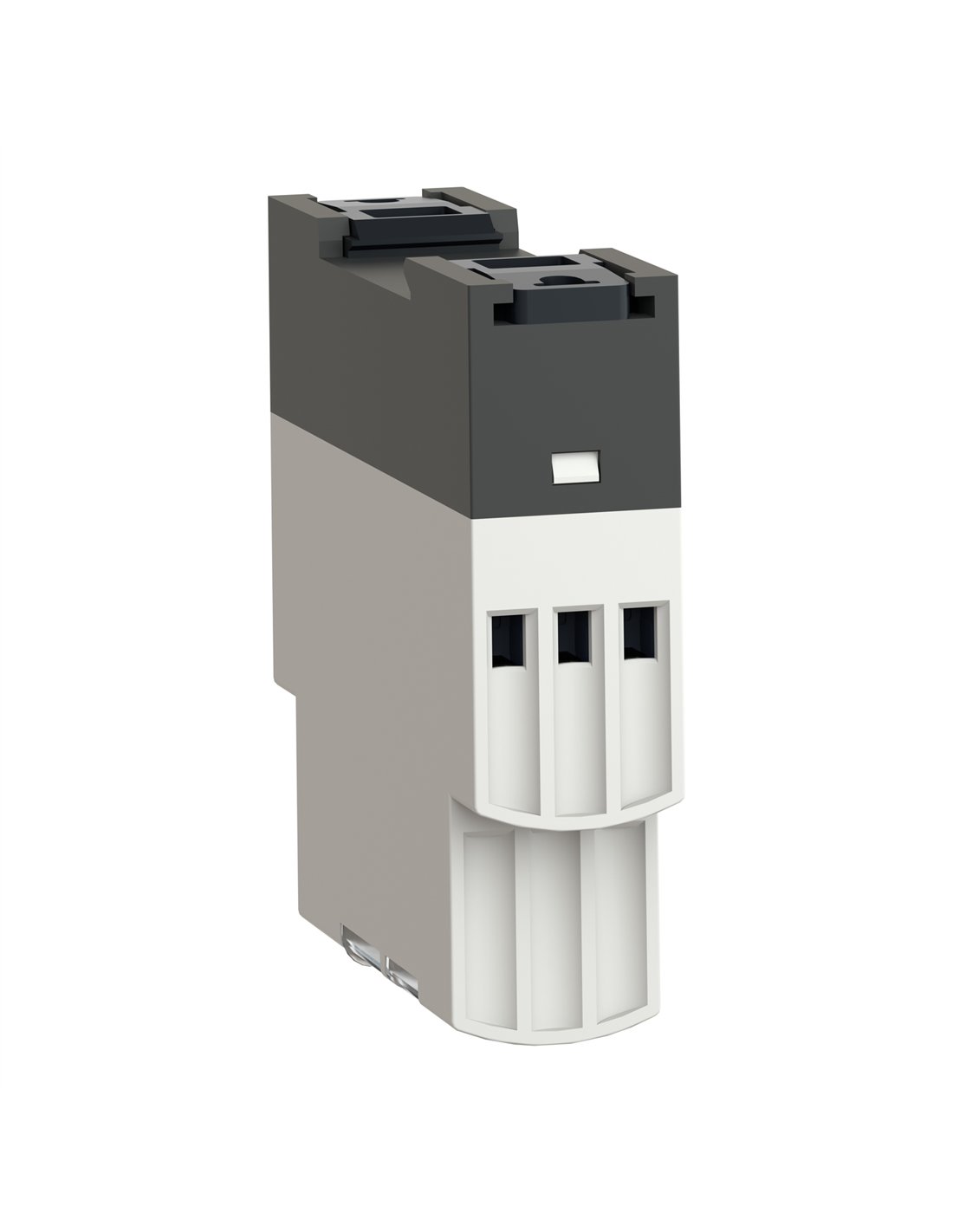

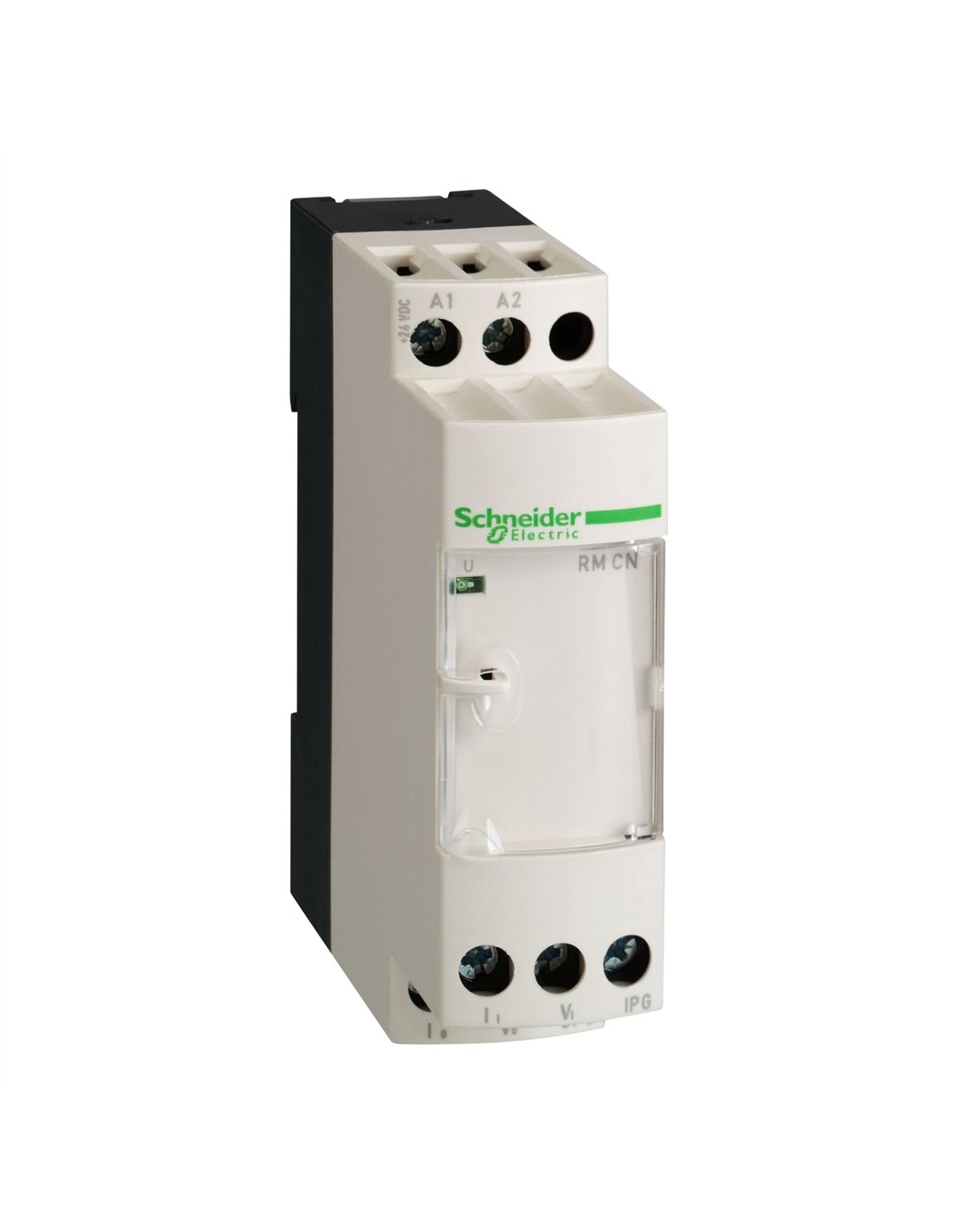

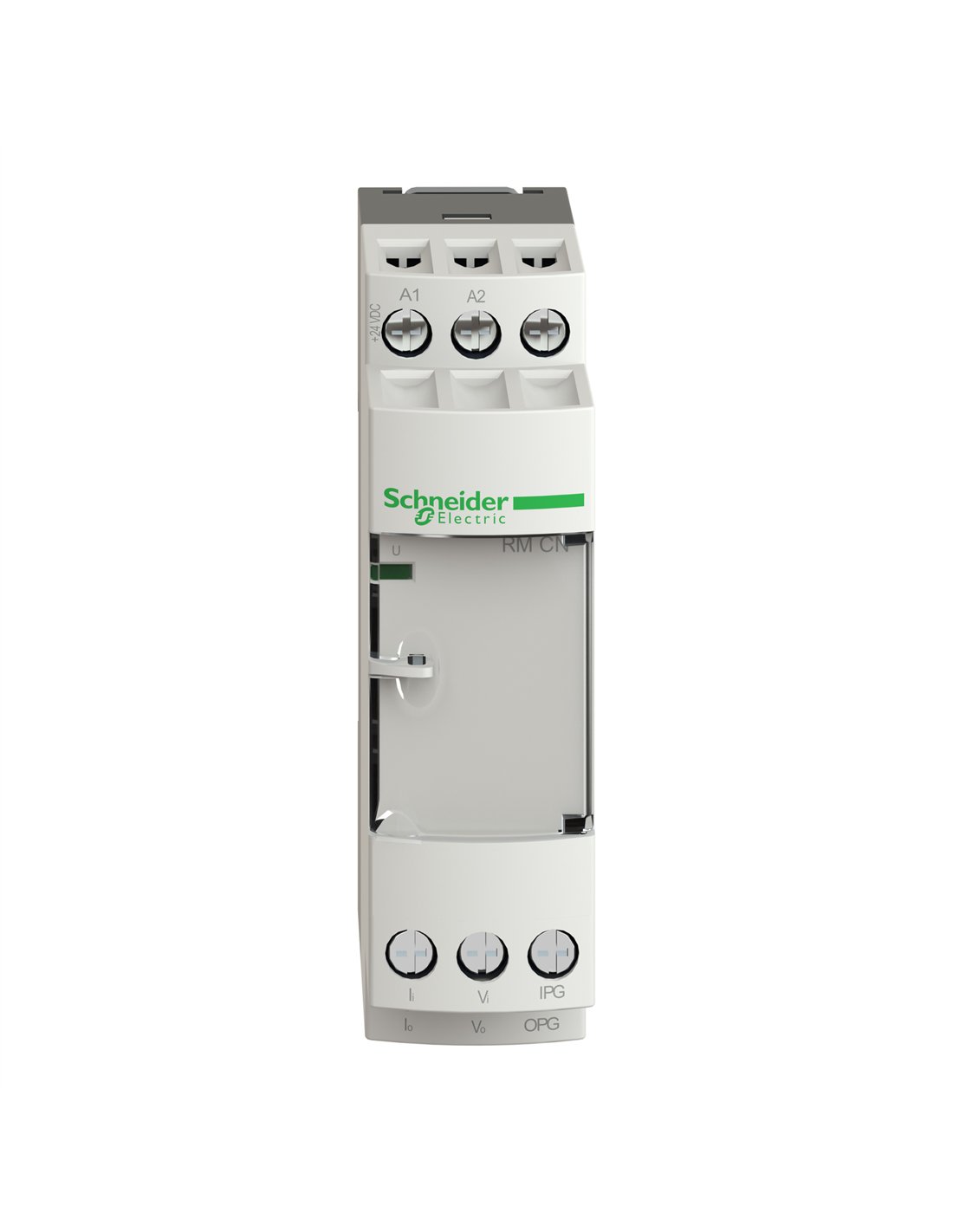

HARMONY 4..20 mA analog converter with short circuit protection and LED indicator

IMPO RMCN22BD
Available
€151.96
VAT included
The HARMONY 4-20 mA analog converter transforms sensor signals into standard electrical formats. It features reverse polarity, overvoltage, and short-circuit protection, ensuring reliable operation. Its design includes an LED indicator and provides a backup output in case of input signal failure.
3 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The analog converter - 4..20 mA for HARMONY analog is designed to transform signals from sensors or electrical measuring devices into standard electrical signals. This device offers an efficient and reliable solution for integrating control and monitoring systems.

  • Analog Input Type: Current 4...20 mA and Voltage 0...10 V DC
  • Analog Output Type: Current 4...20 mA (≤ 500 Ohm) and Voltage 0...10 V (≥ 100 kOhm)
  • Output Short Circuit and Overvoltage Protection (+/- 30 V)
  • Output with backup value in the absence of an input signal
  • LED indicator on the front panel for power signal
  • Nominal Supply Voltage: 24 V DC +/- 20%, non-isolated
  • Current Consumption: ≤ 40 mA for voltage output and ≤ 60 mA for current output
  • Operating Temperature Range: 0…50 °C (side mounting) and 0…60 °C (2 cm gap)
  • Conformity standards: IEC 60584-1, IEC 60947-1
  • Electrical durability: 1.2/50 µs according to IEC 61000-4-5

Product Details

EAN
3389110108903
Reference
IMPO RMCN22BD
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
