CONT 12A 1NA/1NC 110V 50/60HZ

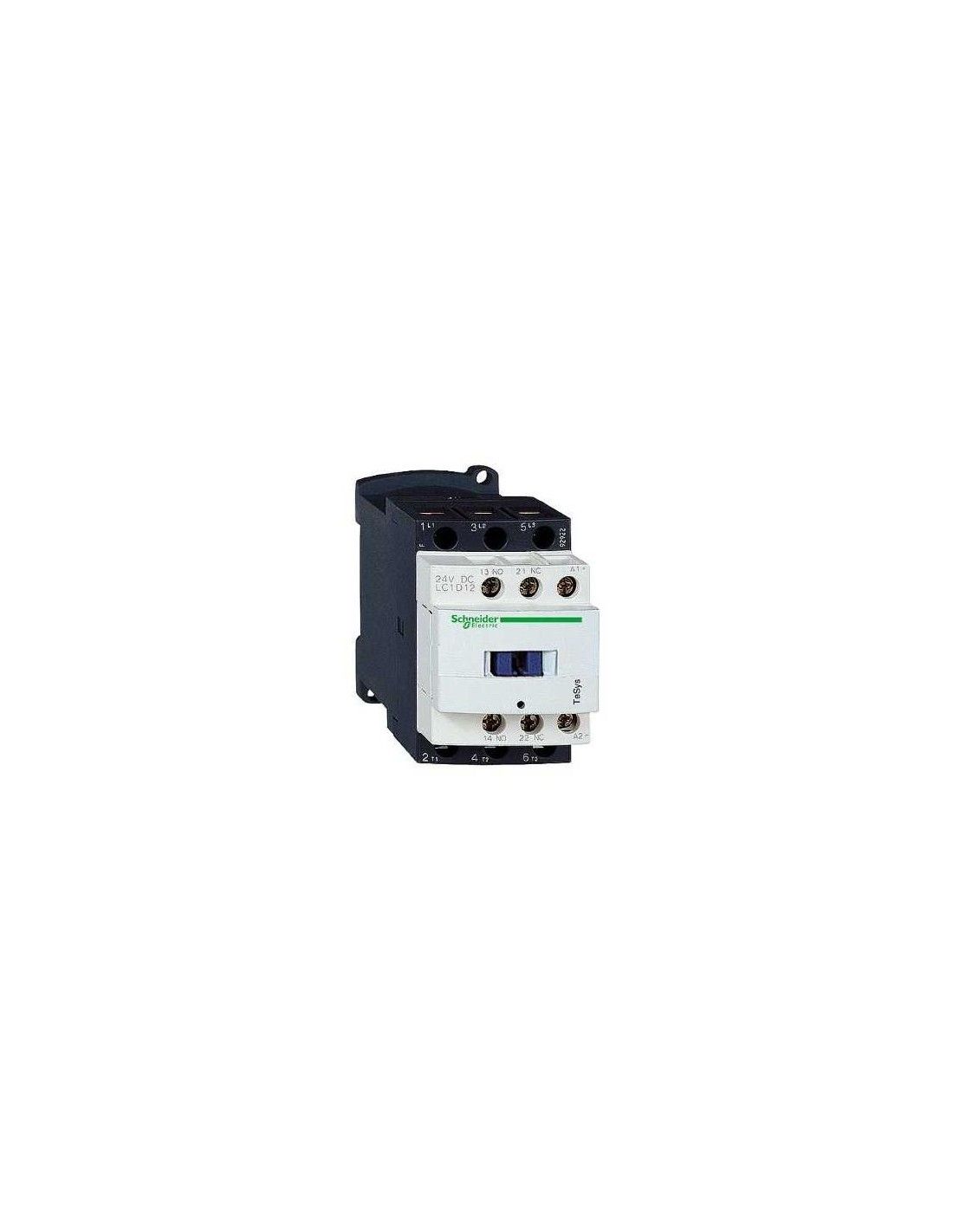

Contactor 12A 1NO/1NC 110V 50-60Hz

CONT 12A 1NA/1NC 110V 50/60HZ

Contactor 12A 1NO/1NC 110V 50-60Hz

Contactor 12A 1NO/1NC 110V 50-60Hz

Reference IMPO LC1D12F7

Available

€44.89

VAT included

3P AC-3 contactor =440 V 12 A coil 110 V AC TeSys D. Device short name LC1D. Contactor application Motor control. resistive load. Employment category AC-1/AC-3. [Ue] rated operating voltage = 690 V AC 25...400 Hz for power circuit = 300 V DC for power circuit. [Ie] rated operating current 12 A (= 60 °C) at = 440 V AC AC-3 for supply circuit 25 A (= 60 °C) at = 440 V AC AC-1 for supply circuit. Motor power in kW 3 kW at 220...230 V AC 50/60 Hz 7.5 kW at 500 V AC 50/60 Hz 7.5 kW at 660...690 V AC 50/60 Hz 5.5 kW at 380... 400 V AC 50/60 Hz 5.5 kW at 415...440 V AC 50/60 Hz. Motor power in CV 1 hp at 115 V AC 50/60 Hzfor 1-phase motors 2 hp at 230/240 V AC 50/60 Hzfor 1 phase motors 3 hp at 200/208 Vac 50/60 Hzfor 3 phase motors 3 hp at 230/240 Vac 50/60 Hzfor 3 phase motors 7.5 hp at 460/480 Vac 50/60 Hzfor 3 phase motors 10 hp at 575/600 VAC 50/60 Hzfor 3 phase motors. Control circuit type AC 50/60 Hz.

In stock 10 Items

Order now and receive it...

11-05-2026 with MRW

between 11-05-2026 and 12-05-2026 with Correos

Subscribe To When In Stock

You have successfully subscribed to this product

Product Details

EAN: 3389110349221
Manufacturer: Schneider
No. of poles: 3P
Reference: SCHNEIDER LC1D12F7
Nominal voltage (V): 110
Safety warning: No
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

In stock 10 Items

Reviews (0)

No reviews
