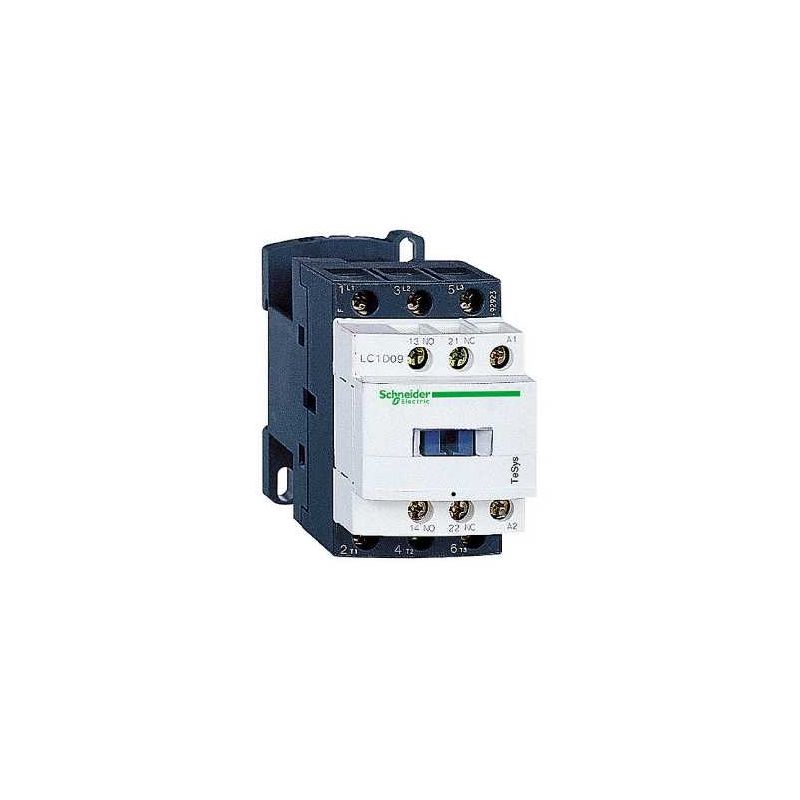

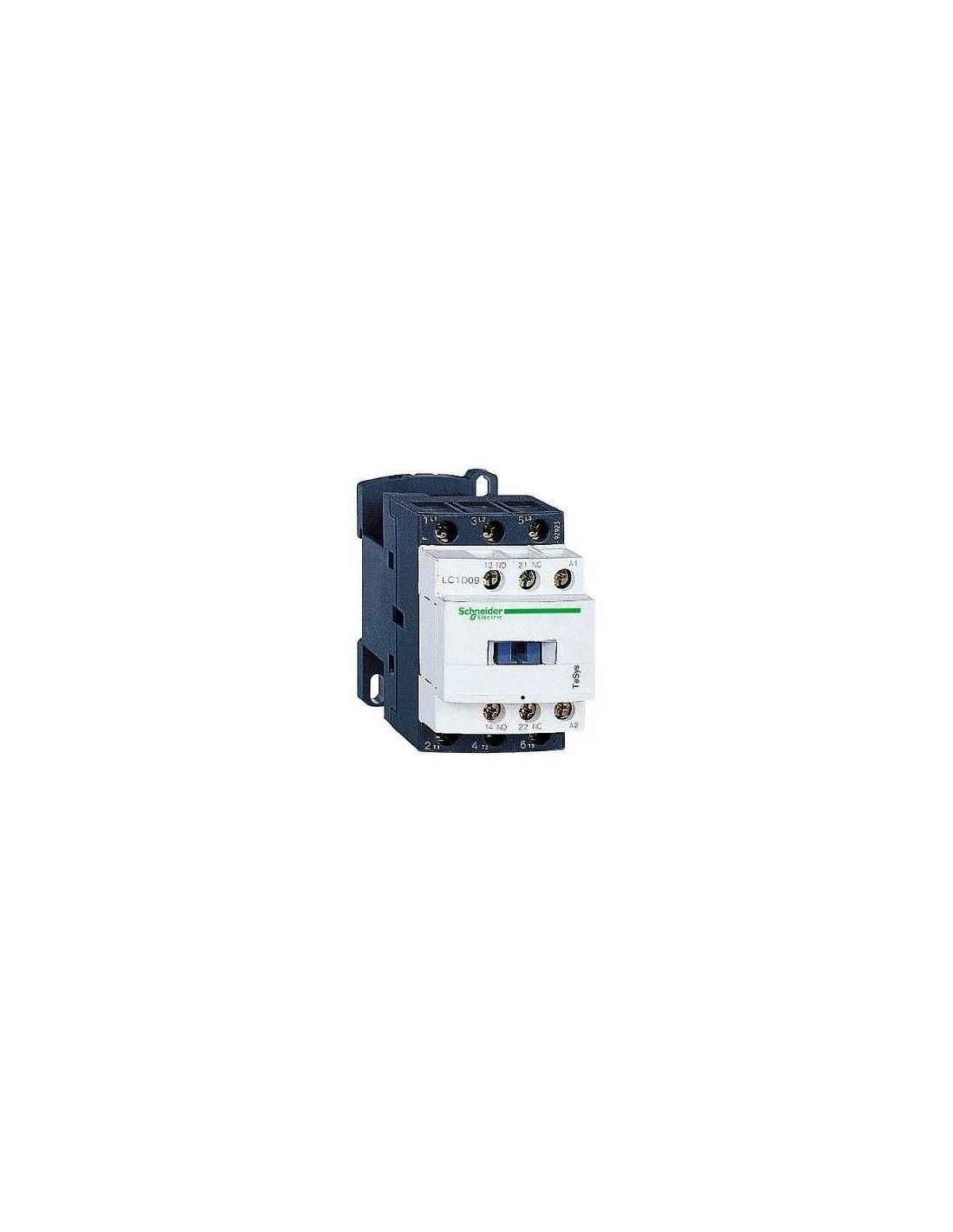

CONT 9A 1NA/1NC 24V BC-AR-ANTIP
 9A 1 NO/1 NC 24V BC-AR anti-interference contactor
CONT 9A 1NA/1NC 24V BC-AR-ANTIP
 9A 1 NO/1 NC 24V BC-AR anti-interference contactor

9A 1 NO/1 NC 24V BC-AR anti-interference contactor

IMPO LC1D09BL
Available
€58.35
VAT included
3P AC-3 contactor =440 V 9 A coil 24 V DC interference suppression TeSys D. Device short name LC1D. Contactor Application: Motor Control resistive load. Employment category AC-1/AC-3. Composition of contact poles 3 NO. [Ue] rated operating voltage = 690 V AC 25...400 Hz for power circuit = 300 V DC for power circuit. [Ie] rated operating current 25 A (= 60 °C) at = 440 V AC AC-1 for supply circuit 9 A (<= 60 °C) at <= 440 V AC AC-3 for supply circuit. Motor power in kW 4 kW at 380...400 V AC 50/60 Hz 2.2 kW at 220...230 V AC 50/60 Hz 5.5 kW at 500 V AC 50/60 Hz 5.5 kW at 660... 690 V AC 50/60 Hz 4 kW at 415...440 V AC 50/60 Hz. Motor power in CV 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors 1 hp at 230/240 V AC 50/60 Hzfor 1 phase motors 2 hp at 200/208 Vac 50/60 Hzfor 3 phase motors 2 hp at 230/240 Vac 50/60 Hzfor 3 phase motors5 hp at 460/480 Vac 50/60 Hzfor 3 phase motors 7.5 hp at 575/600 VAC 50/60 Hzfor 3 phase motors. Control circuit type DC low consumption.
100 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Product Details

EAN
3389110361070
Manufacturer
Schneider
No. of poles
3P
Reference
SCHNEIDER LC1D09BL
Nominal voltage (V)
0
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
100 Items
