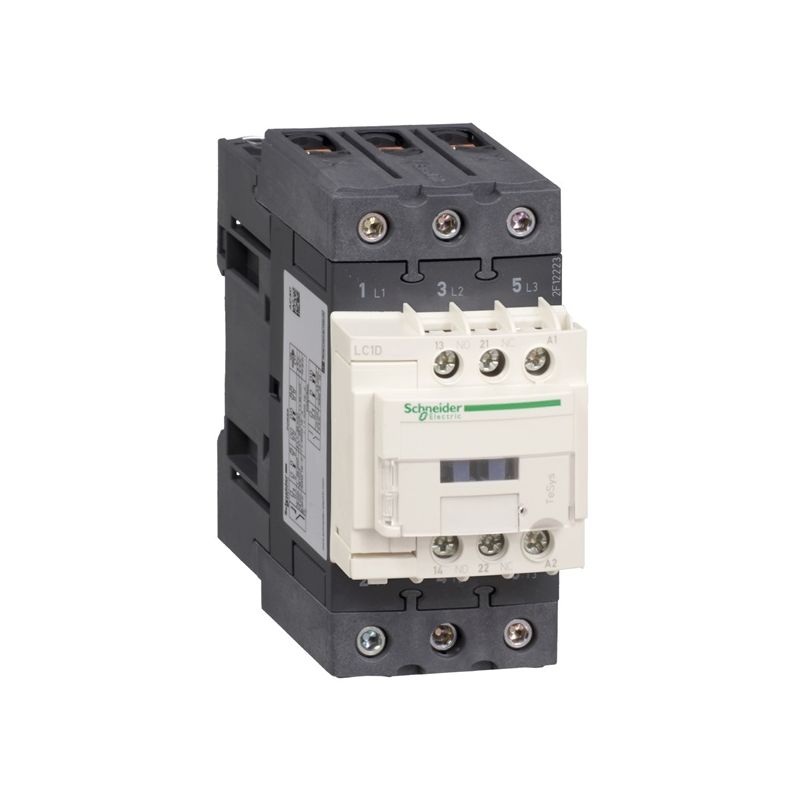

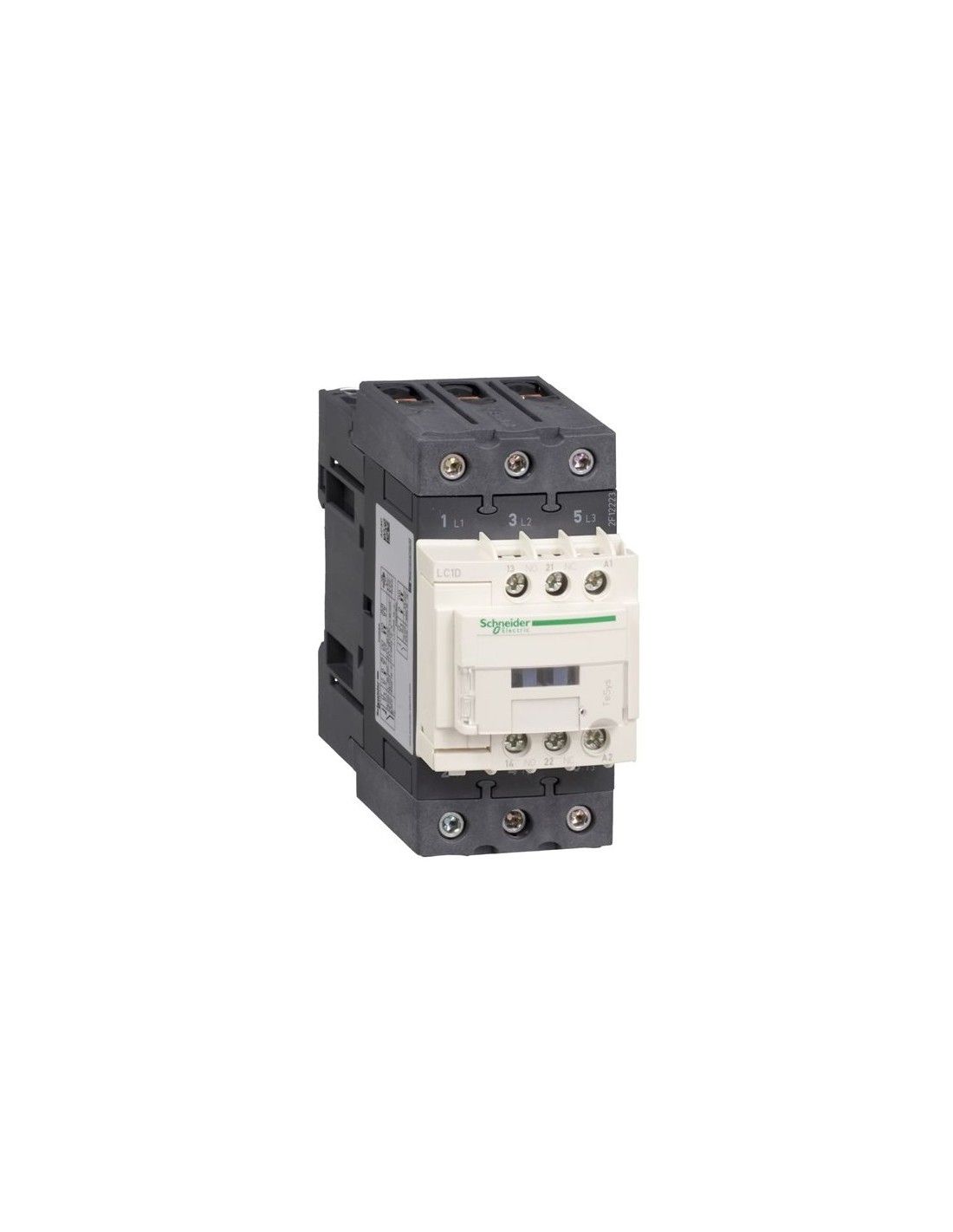

EVERLINK 3P AC3 440V 50A B7 contactor

3P AC-3 contactor =440 V 50 A coil 24 V AC 50/60 Hz. Type of product or component: Connector. Device short name: LC1D. Contactor Application: Motor Control, Resistive Load. Employment category: AC-1/AC-3. [Ue] rated operating voltage: = 690 V AC 25...400 Hz for power circuit = 300 V DC for power circuit. [Ie] rated operating current 50 A (= 60 °C) at = 440 V AC AC-3 for supply circuit 80 A (= 60 °C) at = 440 V AC AC-1 for supply circuit. Motor power in kW: 15 kW at 220...230 V AC 50/60 Hz, 22 kW at 380...400 V AC 50/60 Hz, 25 kW at 415 V AC 50/60 Hz, 30 kW at 440 V AC 50/60 Hz, 30 kW at 500 V AC 50/60 Hz, 33 kW at 660...690 V AC 50/60 Hz. Motor power in CV: 3 hp at 115 V AC 50/60 Hz for 1 phase motors 7.5 hp at 230/240 V AC 50/60 Hzfor 1 phase motors 15 hp at 200/208 V AC 50/60 Hzfor 3 phase motors 15 hp at 230/240 V AC 50/60 Hzfor 3 phase motors 40 hp at 460/480 V AC 50/60 Hz for 3-phase motors 40 hp at 575/600 V AC 50/60 Hz for 3-phase motors. Control circuit type AC 50/60 Hz.
