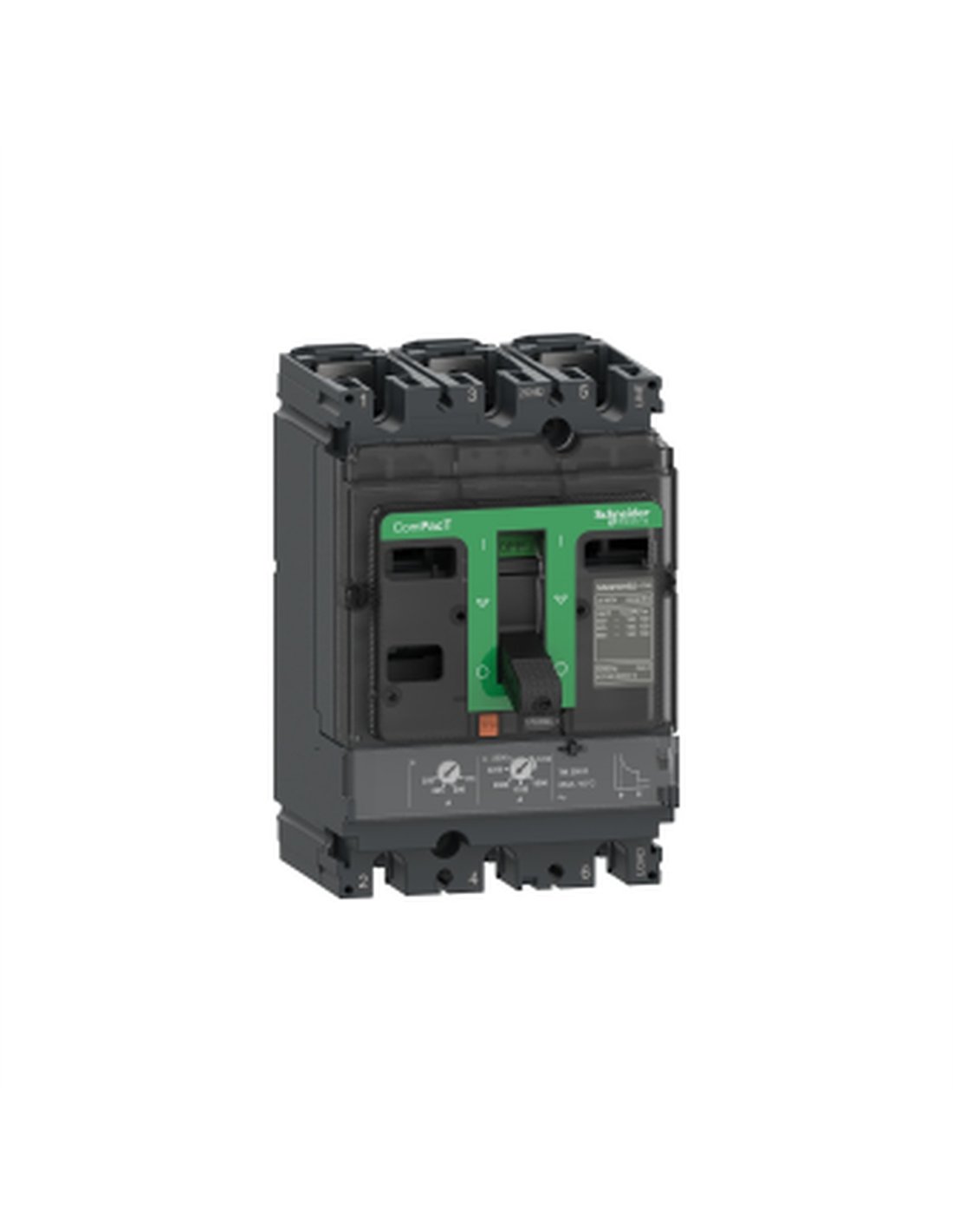

UL COMPACT 80A 36kA 3P Thermal-magnetic Circuit Breaker IP40

The NSX100F 36kA AC 3P3R 80A TMD circuit breaker from the new generation ComPacT range is an advanced solution for electrical circuit protection. Designed for applications with currents above 0.1 A, this device offers a rated current of 80 A at 40 °C and is suitable for voltages up to 690 V AC on 50/60 Hz networks. Its thermal-magnetic trip technology ensures a fast response to overloads and short circuits, guaranteeing the integrity of the electrical system.

With a breaking capacity of up to 85 kA at 220/240 V AC and 36 kA at 380/415 V AC, the NSX100F is ideal for demanding industrial environments. Its compact design allows for fixed mounting in horizontal and vertical positions, facilitating integration into various installations.

• Number of poles: 3P
• Protection: Overload (thermal) and short circuit (magnetic)
• Mechanical durability: 50,000 cycles
• Electrical durability: 30,000 cycles at 440 V
• Protection rating: IP40
• Storage temperature: -50 to 85 °C
• Weight: 2.05 kg
• Dimensions: 105 mm (width) x 161 mm (height) x 86 mm (depth)
• Protection class against electric shock: Class II
• Certifications: CCC, HB2
