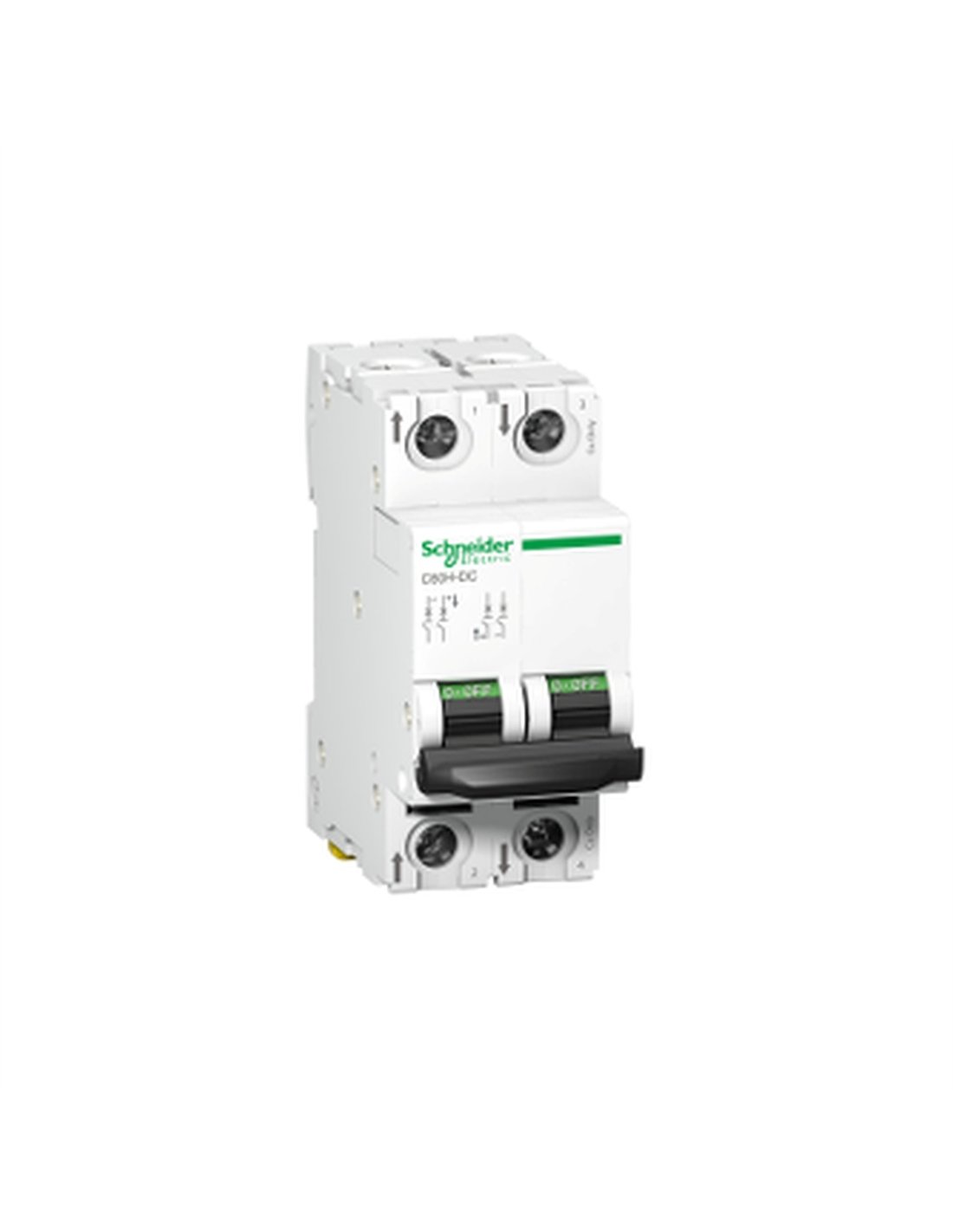

SCHNEIDER C60 13A 500Vdc 2-pole thermal-magnetic circuit breaker

The C60H-DC 2P 13A C 500Vdc miniature circuit breaker from the Acti 9 range is a device designed for the protection of direct current circuits. This model, known as the Acti 9 C60NA-DC, is ideal for applications requiring a current greater than 0.1 A, offering a rated current of 13 A at 25 °C. With a robust and efficient design, this circuit breaker features two protected poles and is capable of withstanding voltages up to 500 V DC.

The thermal-magnetic trip technology ensures a fast response to overloads and short circuits, while its C-curve rating provides adequate protection under various load conditions.

Technical features include:

• Main frequency: 50/60 Hz
• Mechanical durability: 20,000 cycles
• Electrical durability: 6,000 cycles at 500 V
• Operating temperature: -25 to 70 °C
• 35 mm symmetrical DIN rail mounting
• Prepared for locking in the O position
• Contact position indicator
• Contamination degree: 3
• Overvoltage category: IV
• Weight: 0.256 kg
