Automatic switch iC60L 12.5A MA 2P 15kA 220-240V DC - SCHNEIDER

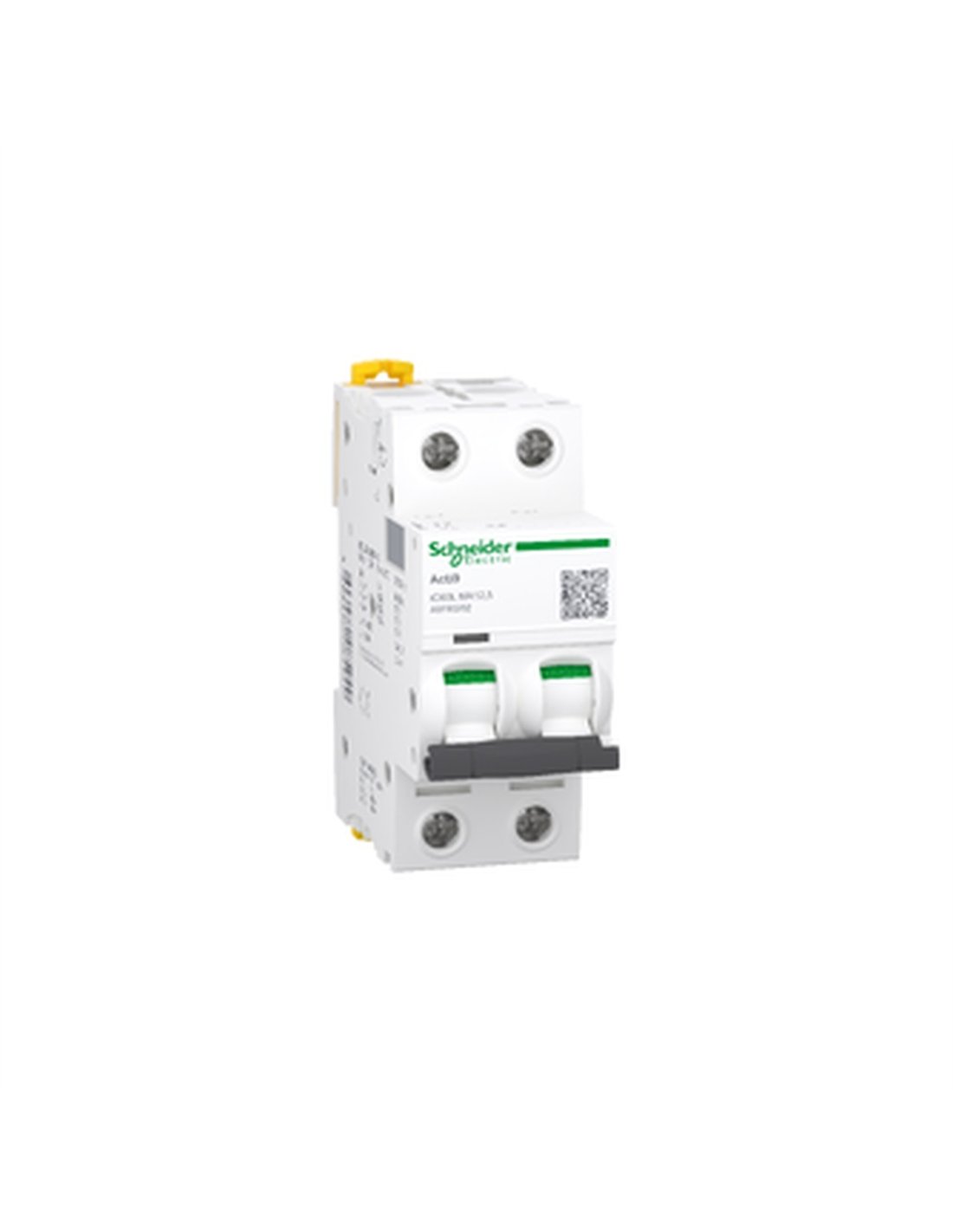

The Acti 9 iC60 RCBO iC60LMA 2P 12.5A MA is a miniature circuit breaker from the PowerLogic range, designed to provide effective protection in DC applications. This device has a rated current of 12.5 A and is ideal for residential environments, ensuring safe and reliable operation.

With a compact design, the iC60LMA features two poles, enabling two-pole protection. Its trip unit technology is magnetic, ensuring a fast response to overloads.

This circuit breaker has a breaking capacity of up to 40 kA Icu at 220-240 V DC, making it a robust option for various electrical applications. Among its technical features are: Mains frequency: 50/60 Hz, Rated operating voltage: 220-240 V DC, 380-415 V DC, 440 V DC, Breaking capacity in service: up to 20 kA, Limitation class: Class 3 according to EN 60898-1, Protection rating: IP20, Operating temperature: -35-70 °C, Electrical durability: 10,000 cycles

Connections: Single terminal, compatible with rigid cables up to 25 mm²

Dimensions: 85 mm (height) x 36 mm (width) x 78.5 mm (depth)

Weight: 0.25 kg

This switch is an efficient and safe solution for energy management in residential electrical installations.
