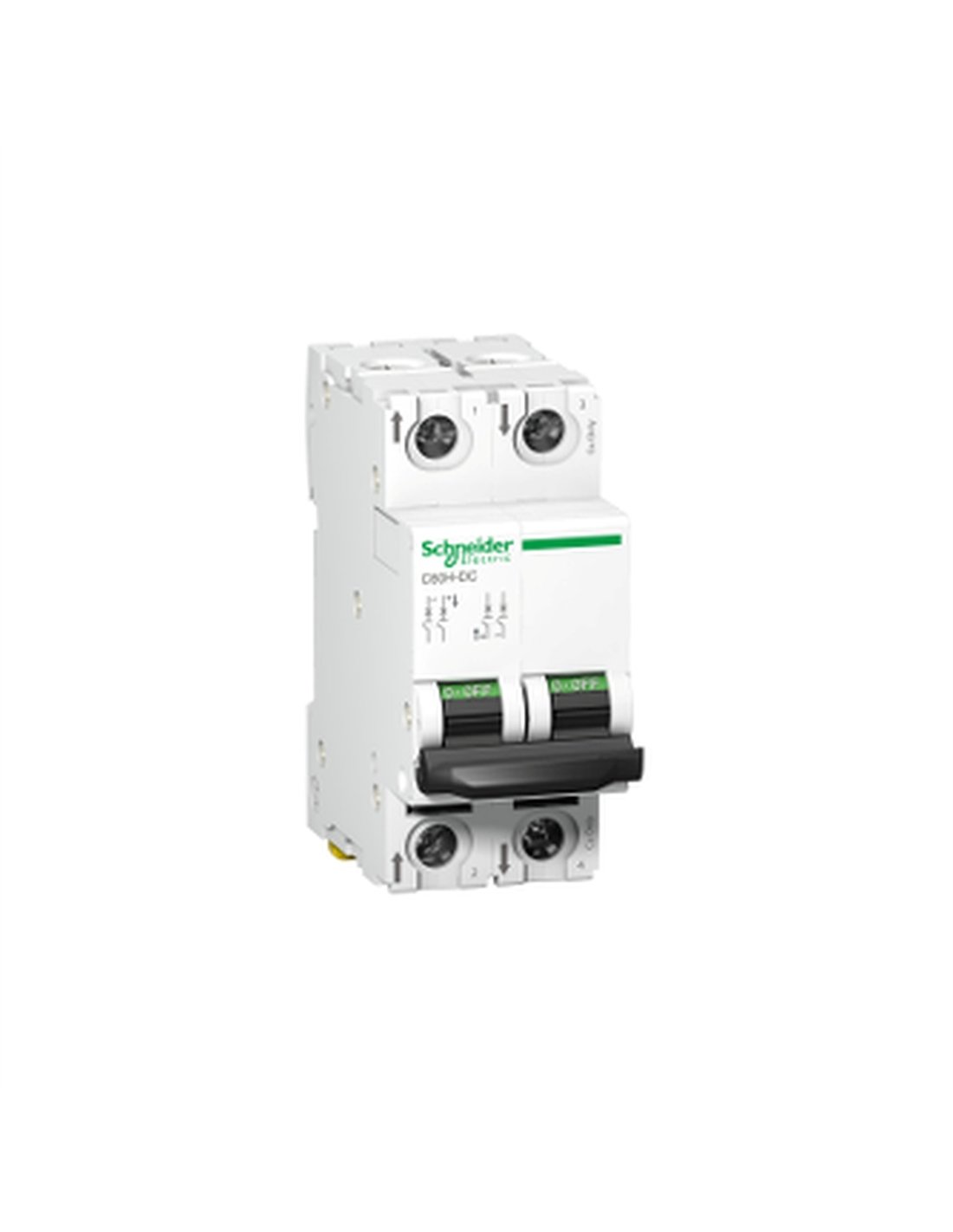

SCHNEIDER C60 4A 500Vdc 2-pole thermal-magnetic circuit breaker

The C60H-DC 2P 4A C 500Vdc miniature circuit breaker from the Acti 9 range is a reliable and efficient solution for DC circuit protection. Designed for applications requiring a current above 0.1 A, this device features two protected poles and a rated current of 4 A at 25 °C. Its thermal-magnetic trip technology ensures a fast response to overloads and short circuits, while its C-curve rating makes it ideal for a variety of electrical applications.

With a breaking capacity of up to 20 kA at 220 V and 250 V, and 6 kA at 500 V, the C60H-DC ensures a high level of protection under demanding conditions. This circuit breaker is compatible with accessories from the C60 range and is easily mounted on a symmetrical 35 mm DIN rail. Furthermore, its design includes a contact position indicator and local signaling that allows verification of the on/off status.

• Main frequency: 50/60 Hz
• Nominal operating voltage: 500 V DC
• Breaking capacity in service: 15 kA at 220 V and 250 V
• Mechanical durability: 20,000 cycles
• Electrical durability: 6,000 cycles at 500 V
• Operating temperature: -25…70 °C
• Maximum operating altitude: 2000 m
• Padlockable in position O
• Contamination degree: 3
• Overvoltage category: IV
