C60H-DC 2P 32A C 500Vdc
C60H-DC 2P 32A C 500Vdc

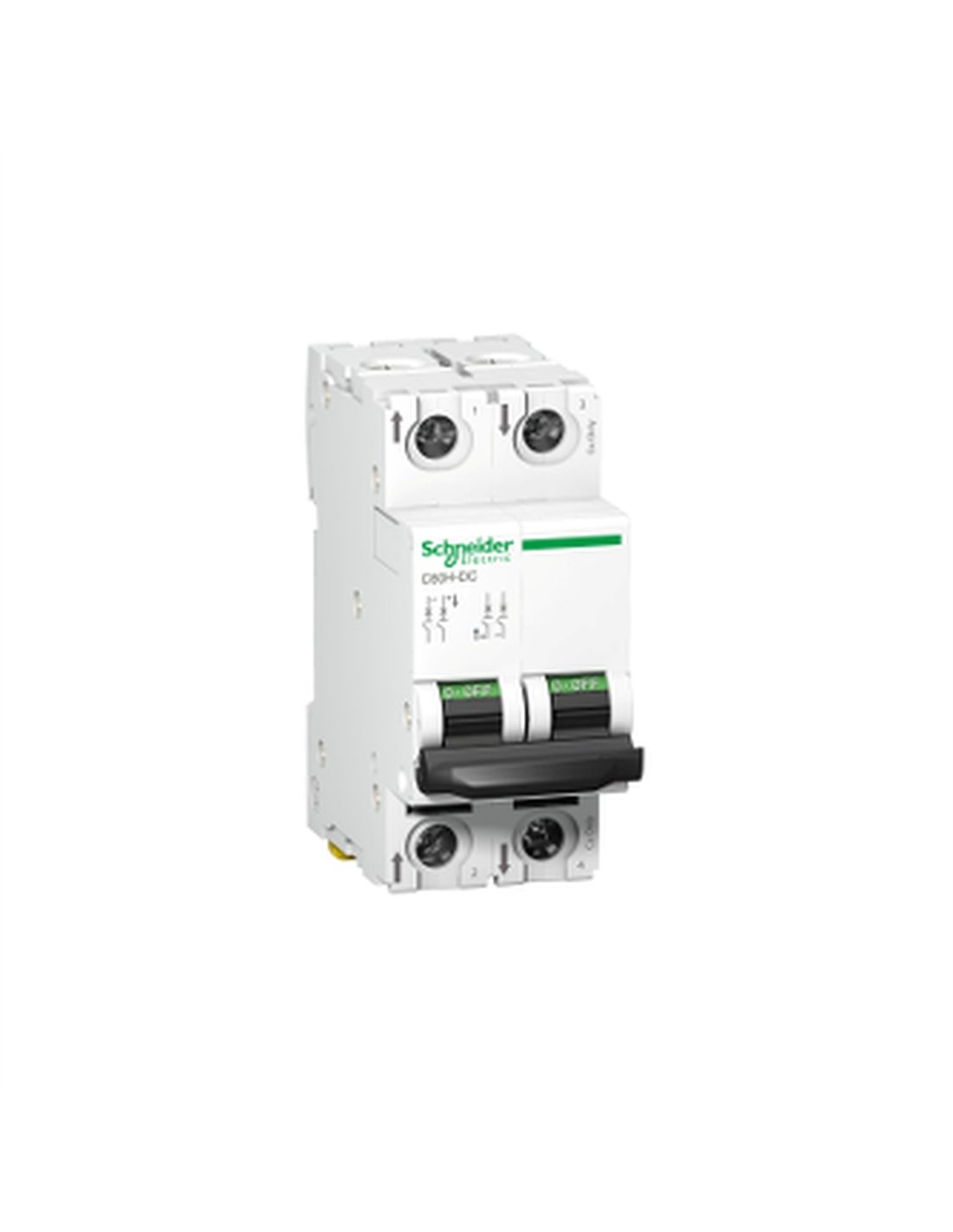

SCHNEIDER C60 32A 2P 500Vdc thermal-magnetic circuit breaker

IMPO A9N61535
Available
€51.22
VAT included
The Acti 9 C60H-DC miniature circuit breaker is designed for direct current. With 2 poles and a rated current of 32 A at 25 °C, it offers a breaking capacity of up to 20 kA. It is DIN rail mounted and padlockable.
10 Items

Order now and receive it...

between 19-05-2026 and 20-05-2026  with  Correos / Paq Estandar

18-05-2026  with  MRW

between 18-05-2026 and 19-05-2026  with  Correos

Description

The C60H-DC 2P 32A C 500Vdc miniature circuit breaker from the Acti 9 range is an advanced solution for DC circuit protection. Designed for applications requiring a current above 0.1 A, this device features two protected poles and a rated current of 32 A at 25 °C. Its thermal-magnetic trip technology and C-curve rating ensure a fast and effective response to overloads and short circuits.

With a breaking capacity of up to 20 kA at 220 V and 250 V, and 6 kA at 500 V, the C60H-DC is ideal for residential and small commercial environments. Its design allows for fixed mounting on a symmetrical 35 mm DIN rail, and its contact position indicator provides clear on/off signaling.

This device is compatible with accessories from the C60 range, facilitating its integration into existing systems.

  • Main frequency: 50/60 Hz
  • Nominal operating voltage: 500 V DC
  • Breaking capacity in service: 15 kA at 220 V and 250 V
  • Mechanical durability: 20,000 cycles
  • Electrical durability: 6,000 cycles at 500 V
  • Operating temperature: -25 to 70 °C
  • Maximum operating altitude: 2000 m
  • Padlockable in position O
  • Contamination class: 3
  • Overvoltage category: IV

Product Details

Rated current (A)
32 A
Curve
C
EAN
3606480424342
Manufacturer
SCHNEIDER
No. of poles
2P
Reference
SCHNEIDER A9N61535
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
