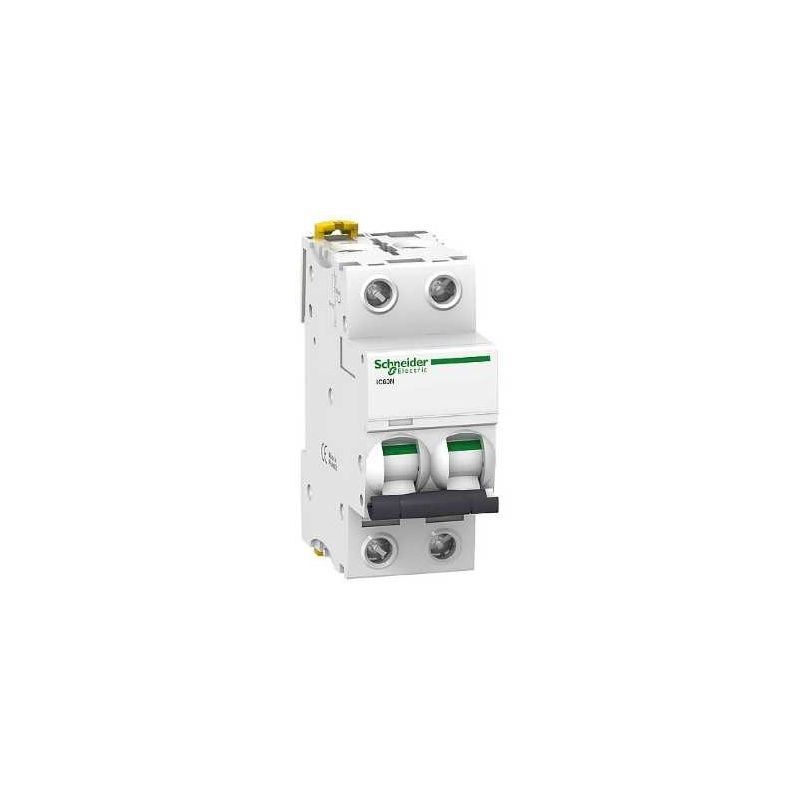

INT.AUT Schneider iC60N 2P 20A D 6000A Acc
 Automatic circuit breaker iC60N 2P 20A curve-D
INT.AUT Schneider iC60N 2P 20A D 6000A Acc
 Automatic circuit breaker iC60N 2P 20A curve-D

Automatic circuit breaker iC60N 2P 20A curve-D

IMPO A9F75220
Available
€56.47
VAT included
iC60N Acti 9 thermal-magnetic circuit breaker, 2P, 20A, curve D, 50/60 Hz, IP20, Thermal-magnetic, Suitable for sectioning, Contact position indicator, Type of control: Toggle, Local signaling: Trip indicator, Mode Mounting Bracket: Fixed, Mounting Bracket: DIN Rail, Earth Leakage Protection: Freestanding Block, 85x36x78.5mm, 0.25kg, White. Breaking capacity: 36 kA Icu according to EN 60947-2, 12...133 V AC 50/60 Hz, 10 kA Icu according to IEC 60947-2, 72...125 V DC, 36 kA Icu of conforming to IEC 60947-2, 12...133 V AC 50/60 Hz, 10 kA Icu conforming to IEC 60947-2, 380...415 V AC 50/60 Hz, 20 kA Icu conforming to IEC 60947 -2, 220...240 V AC 50/60 Hz, 6000 A Icn conforming to IEC 60898-1, 400 V AC 50/60 Hz, 10 kA Icu conforming to EN 60947-2, 380...415 V AC 50/60 Hz, 6 kA Icu according to IEC 60947-2, 440 V AC 50/60 Hz, 6 kA Icu according to EN 60947-2, 440 V AC 50/60 Hz, 6000 A Icn according with EN 60898-1, 400 V AC 50/60 Hz, 10 kA Icu according to EN 60947-2, 72...125 V DC, 20 kA Icu according to EN 60947-2, 220...240 V AC 50/60 Hz, utilization category: category A according to EN 60947-2, category A according to IEC 60947-2, suitable for isolating: yes according to EN 60947-2, yes according to EN 60898- 1, yes according to IEC 60947-2, yes according to IEC 60898-1, standards: EN 60947-2, EN 6089 8-1, IEC 60898-1, IEC 60947-2.
100 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Product Details

Rated current (A)
20 A
Curve
D
EAN
3606480081026
Manufacturer
Schneider
No. of poles
2P
Reference
SCHNEIDER A9F75220
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
