INT.AUT LEGRAND TX3 4P 10A C 6000A ACC

Circuit breaker TX3 6kA-C 4P 10A

INT.AUT LEGRAND TX3 4P 10A C 6000A ACC

Circuit breaker TX3 6kA-C 4P 10A

Circuit breaker TX3 6kA-C 4P 10A

Available In stock 5 Items

Reference LEGRAND 403625

€51.56

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

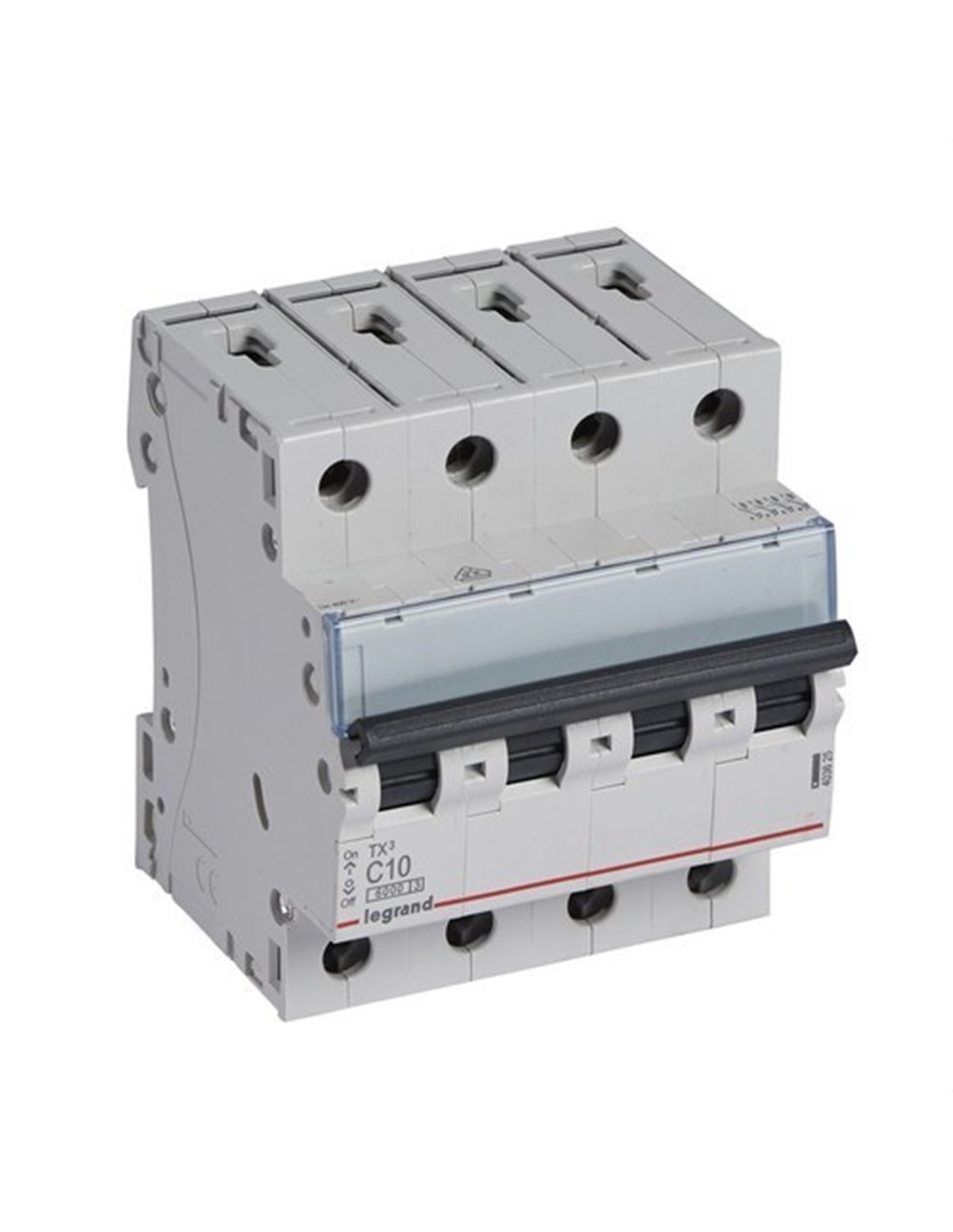

The TX3 6KA-C 4-pole 10A circuit breaker is a 400V~ four-pole circuit breaker with a breaking capacity of 6kA and a C curve. This product is part of the TX3 circuit breaker family, which includes circuit breakers from 6A to 40A.

Technical characteristics:

Complies with the UNE EN-60898-1 standard.
Connections with terminals protected against direct contact (IP20) and captive screws.
Incorporated label holder.
Terminal connection capacity of 25 mm² flexible/35 mm² rigid.
It can be equipped with motorized controls and auxiliary control and DX³ signage.

Product Details

Dimensiones

High	77,8
Width	70,8
Weight (kg)	0

Eléctrico

Nominal voltage (V)	380V
Rated current (A)	10

Protección

Protection	IP20

Otras

Curve	C
EAN	3245064036252
Manufacturer	Legrand
Intensity	10
# Elements	4
No. of poles	4P
Reference	LEGRAND 403625

Información legal

Fabricante	LEGRAND GROUP ESPAÑA, S.L.
Dirección	C, ES
Email	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 403625
EAN	3245064036252

In stock 5 Items
