NSX 100A 36kA 4P 690V AC Basic Rack - IP40 protection - SCHNEIDER brand

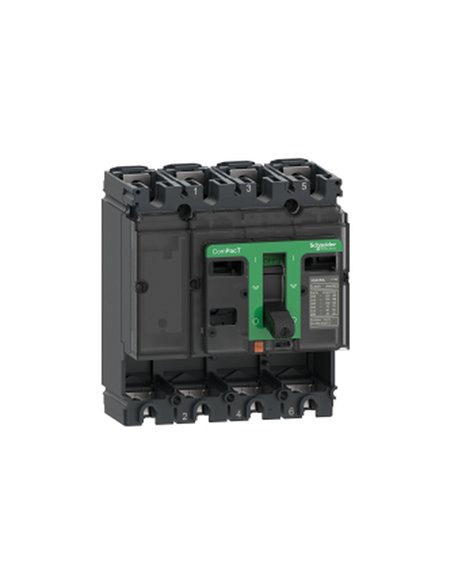

The NSX100F 36kA AC 4P 100A Circuit Breaker is a next-generation protective device from the ComPacT range, designed for applications requiring a current rating above 0.1 A. This basic frame, part of the ComPact NSX400...630 range, offers a robust and reliable solution for AC electrical systems.

With a rated current of 100 A at 40 °C and a rated operating voltage of up to 690 V AC, this device is ideal for demanding industrial environments. Its breaking capacity is remarkable, reaching up to 36 kA at 380/415 V AC, ensuring effective protection against overloads and short circuits.

The NSX100F features a 4-pole design, with the neutral position on the left, and a lever-operated control. Its fixed mounting facilitates integration into various electrical configurations.

• Rated current: 100 A at 40 °C
• Rated insulation voltage: 800 V AC
• Breaking capacity: 36 kA at 380/415 V AC
• Electrical durability: 10,000 cycles at 690 V AC
• Protection rating: IP40
• Operating temperature: -25…70 °C
• Connection: Front and back
• Dimensions: 140 mm (width) x 161 mm (height) x 86 mm (depth)
• Standards: UL 508, CSA
• Degree of contamination: 3
