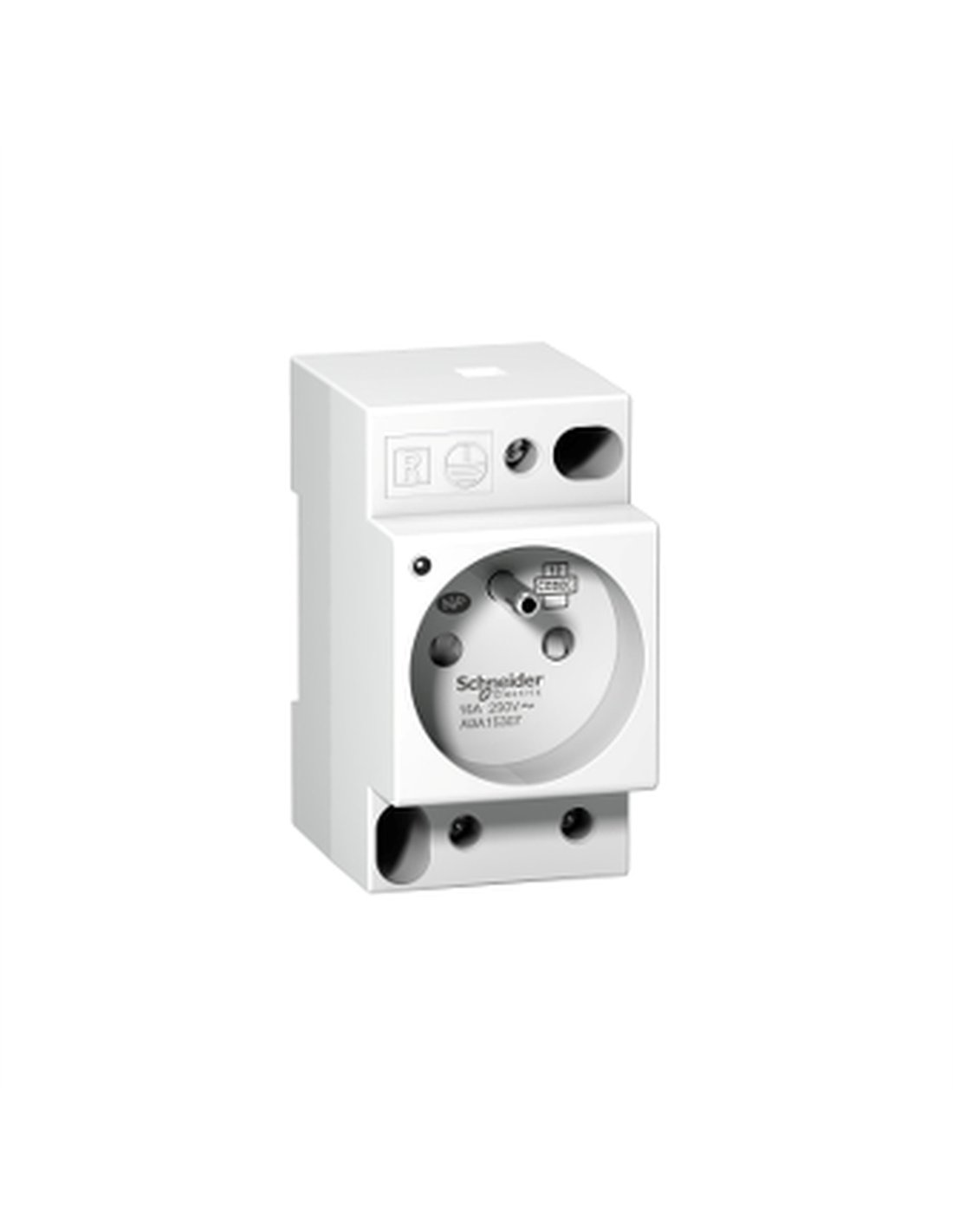

FRAN power socket. Acti 9 2P+E 250V 16A with LED indicator and DIN rail mounting

The Fran 2P+T+PIL 250V 16A socket from the Acti 9 range is a modular socket designed to offer a safe and efficient electrical solution for small businesses. This device, known as the Acti 9 iPF, is characterized by its robustness and ease of installation, and is suitable for fixed mounting on a symmetrical DIN rail. Its compact and functional design allows for easy integration into any electrical system.

With a nominal current of 16 A and an operating voltage of 250 V AC at 50/60 Hz, this socket complies with IEC 60884-1 and NF C 61-314 standards, guaranteeing reliable and safe performance.

• Number of poles: 2P+E
• Dimensions: 84 mm (height) x 45 mm (width) x 60 mm (depth)
• Weight: 98 g
• Protection rating: IP20 (IP40 for modular cable type)
• IK protection rating: IK03
• Operating temperature: -25…70 °C
• Relative humidity: 95% at 55 °C
• LED lifespan: 100,000 hours
• Connections: Tunnel terminal for cables up to 10 mm²
• Tightening torque: 1.2 Nm
