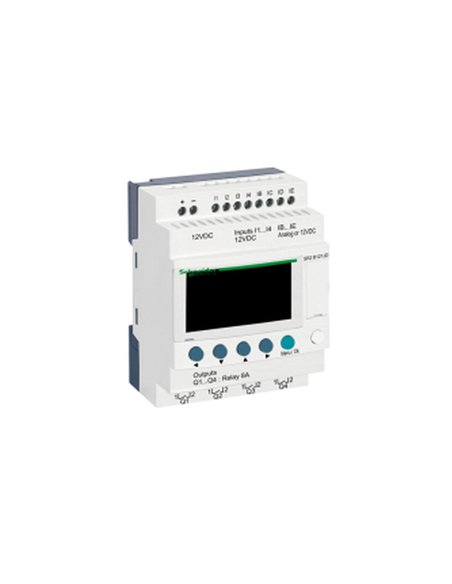

ZELIO II 8E/4R 12CC RELOJ PANTALLA

ZELIO II 8E/4R 12CC RELOJ PANTALLA

ZELIO 12V DC Compact Smart Relay, 4 Outputs, 8A, IP20, 10 Years Backup.

Reference IMPO SR2B121JD

Available

€213.75

VAT included

The ZELIO II 8E/4R 12CC is a compact smart relay from the Zelio Logic range. It offers local display, multiple inputs and outputs, and a cycle time of 6 to 90 ms. Ideal for automated control applications.

In stock 7 Items

Subscribe To When In Stock

You have successfully subscribed to this product

Description

The ZELIO II 8E/4R 12CC is a compact smart relay from the Zelio Logic range, designed to offer efficient and versatile control solutions in industrial applications. This device stands out for its programmability and robustness, allowing local visualization and management of up to 240 control scheme lines. Its cycle time of 6 to 90 ms and a 10-year backup time at 25 °C ensure reliable performance under diverse operating conditions.

The ZELIO II 8E/4R boasts multiple technical features that make it ideal for demanding environments:

Nominal supply voltage: 12 V DC, with limits of 10.4 to 14.4 V.
Number of inputs: 4 digital inputs and 4 analog inputs (0-10 V).
Outputs: 4 relays with switching capacity up to 8 A.
Electrical durability: 500,000 cycles under specified conditions according to EN/IEC 60947-5-1.
Reverse polarity protection: Yes.
Protection rating: IP20 (rear) and IP40 (front).
Operating temperature: -20 to 55 °C.
Relative humidity: 95% non-condensing.
Weight: 0.25 kg.
Certifications: C-Tick, UL, CSA, GOST, GL.

This device is a reliable choice for those seeking precise and long-lasting control in their automated systems.

Product Details

EAN: 3389110549171
Manufacturer: SCHNEIDER
Reference: SCHNEIDER SR2B121JD
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

In stock 7 Items

Reviews (0)

No reviews
