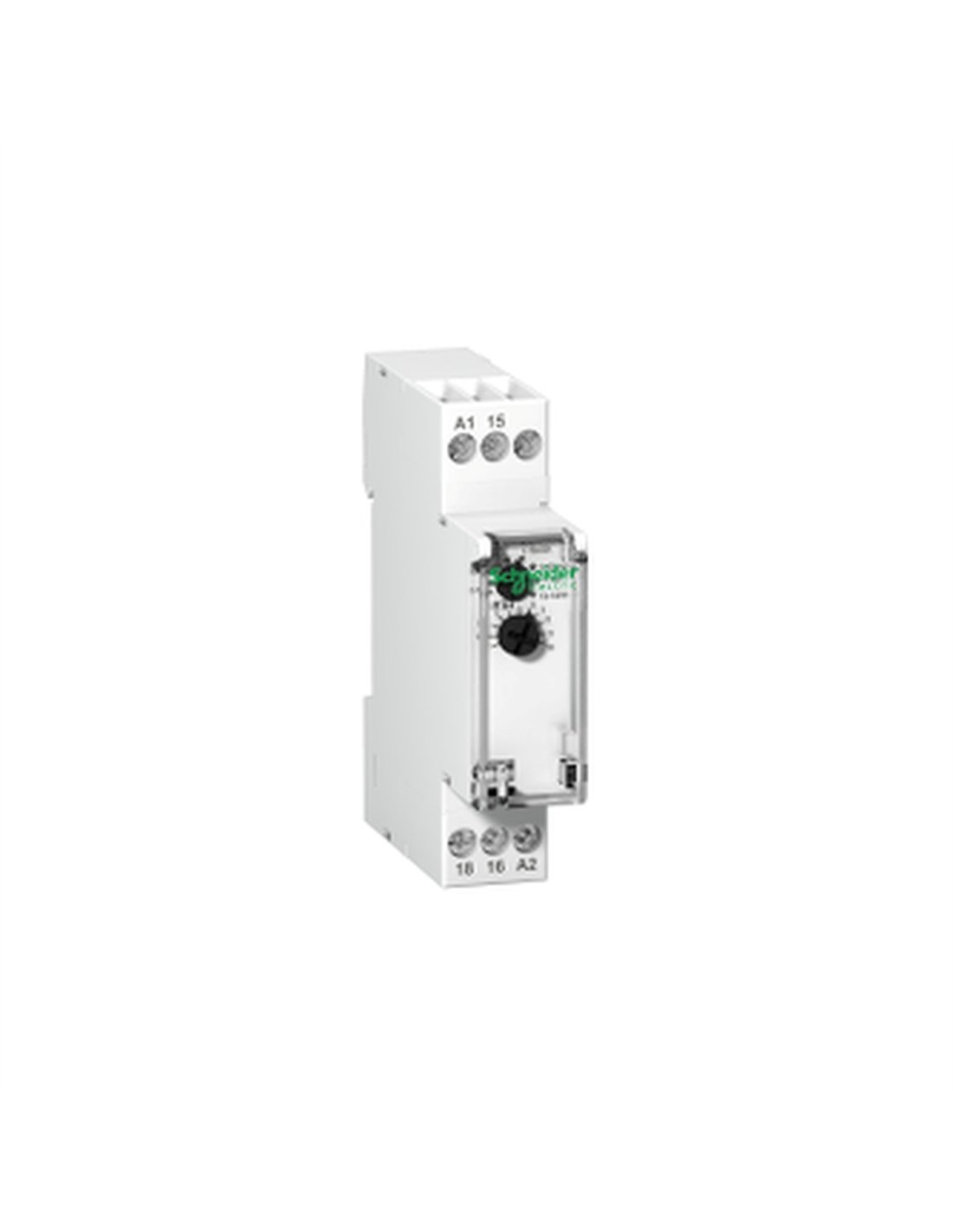

ACTI 9 IRT 8 A 250 V AC TIMER RELAY, range 0.1...360000 s, DIN mounting

The RTH TIMER, model IRT from the Acti 9 range, is a time-delay relay designed for applications requiring a delay in the de-energization of a load. This device is ideal for residential and small commercial environments, offering an efficient and reliable solution for controlling electrical circuits.

The IRT features a 1 A/C signaling contact configuration, allowing for easy integration into electrical systems. Its timing range spans from 0.1 to 360,000 seconds, with a minimum pulse duration exceeding 100 ms.

Technical features include:

• Rated operating current: 8 A at 250 V AC and 8 A at 250 V DC
• Rated supply voltage: 24...240 V AC at 50/60 Hz and 24 V DC
• Setting type: Rotary control for relay configuration
• Mechanical durability: 5,000,000 cycles
• Protection rating: IP20
• Operating ambient temperature: -5…55 °C
• Connections: Tunnel-type terminals for flexible and rigid cables
• Weight: 0.065 kg
• Dimensions: 93 mm height, 18 mm width, 72 mm depth
• Color: White

The RTH TIMER is a versatile and robust option for controlling electrical loads, ensuring optimal performance in various applications.
