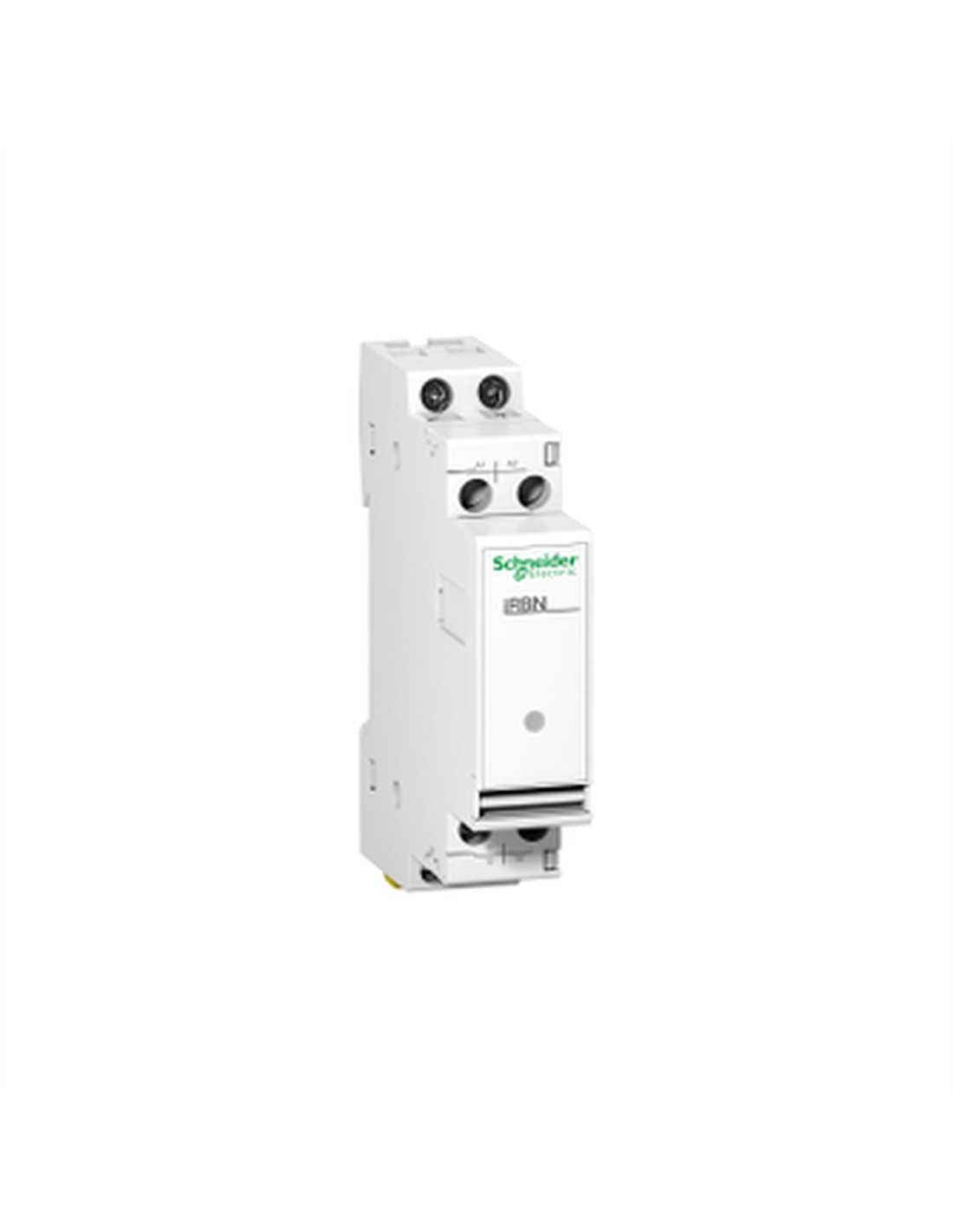

ACTI 9 low level relay 230V 2A with DIN rail mounting and 1 AC

The 220V 2A Low Level Relay, model Acti 9 iRC, is a low-level interface relay designed for operation in low-current electronic circuits. This device can receive commands via Bluetooth, facilitating its integration into automated systems. It belongs to the Acti 9 range and is ideal for applications in residential and small commercial environments.

The relay has a 1 A/C signaling contact configuration and operates at a control circuit voltage of 230 V AC at 50/60 Hz. Its rated operating current is 2 A at 250 V AC, making it suitable for various applications. Furthermore, it features an electrical durability of 100,000 cycles, ensuring long-lasting performance.

This device is permanently mounted on a symmetrical 35 mm DIN rail and has tunnel-type terminals for easy connections.

• Rated operating current: 2 A at 250 V AC
• Rated insulation voltage: 4000 V
• Electrical durability: 100,000 cycles
• Mounting type: Fixed
• Mounting bracket: 35 mm symmetrical DIN rail
• Hold-on power: 2.5 VA
• Input power: 5 VA
• Standards: IEC 529, IEC 255-100
• Connections: Tunnel-type terminals
• Compatibility code: IRBN
