RCI ACTI 9 8A 230V AC control relay with 10-100% threshold adjustment and DIN mounting

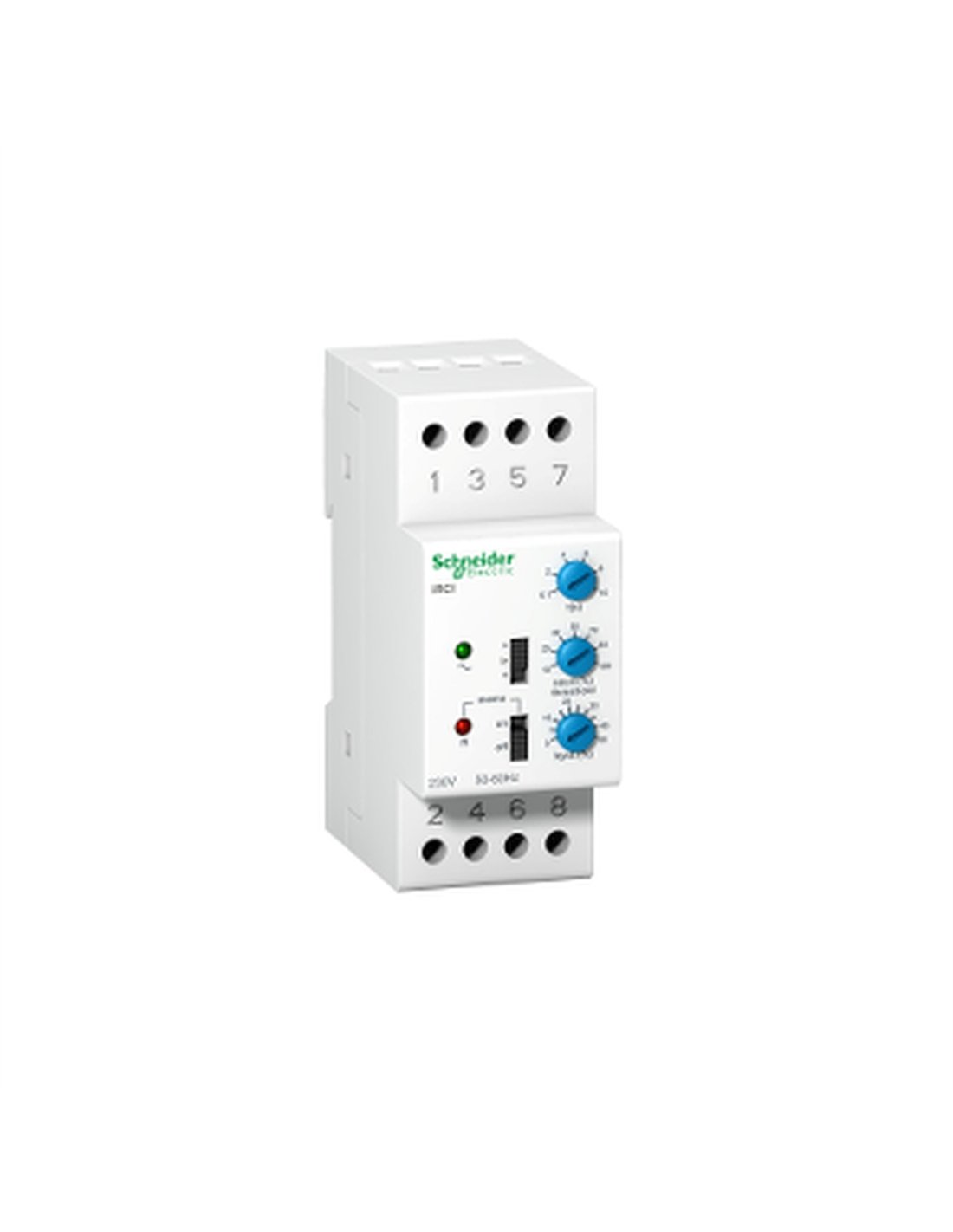

The Acti 9 iRLI Current Control Relay is a current control device designed for small commercial and residential applications. This control relay, known as IRCI for short, allows for efficient and safe current management, ensuring optimal operation under various conditions. Its compact design and symmetrical 35 mm DIN rail mounting make it ideal for installations where space is limited.

The Acti 9 iRLI has a rated operating current of 8 A at 250 V AC and offers local signaling that notifies the user when a preset threshold is exceeded. A red LED indicates a fault, and a green LED indicates the power-on status. Its analog input range covers 1 to 10 A DC and AC, and its tripping threshold is adjustable from 10% to 100%.

• Rated operating current: 8 A at 250 V AC
• Tripping threshold: 10...100 %
• Analog input range: 1...10 A DC/AC
• Hysteresis: 5…50 %
• Timing range: 0.1...10 s
• Rated supply voltage: 230 V AC at 50/60 Hz
• Power consumption: 3 VA
• Protection rating: IP20
• Temperature of Operating temperature: -5…55 °C
• Weight: 215 g
