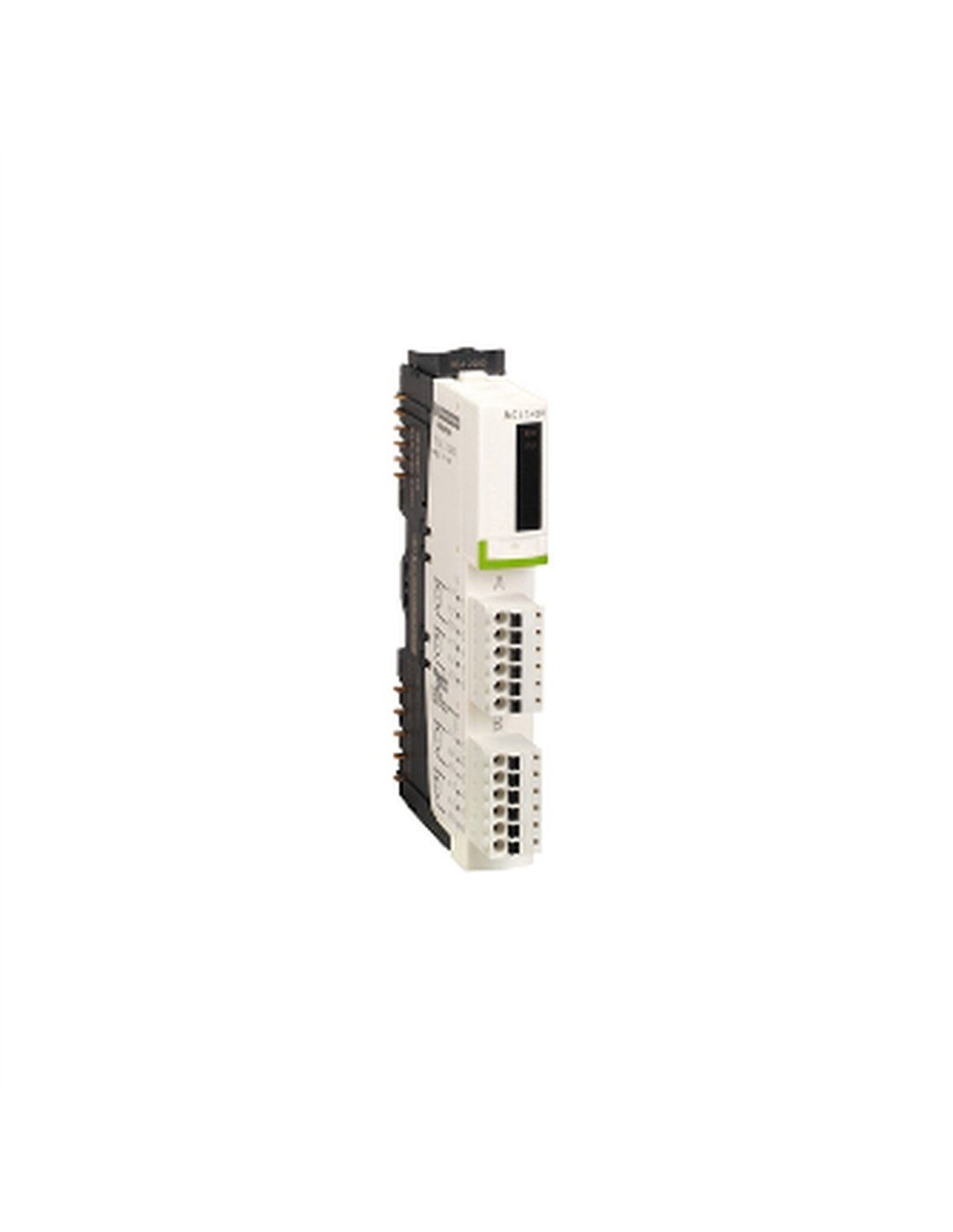

STB 8-channel 15-bit analog input kit, -25 to 70 °C range, IP20

The STB Standard Analog Input Kit, model STBXTS, is a distributed I/O module from the Modicon STB range, designed for industrial applications requiring high precision and reliability. This device allows the connection of up to eight analog inputs, supporting current signals from 4-20 mA and guaranteeing optimal performance under demanding conditions.

• Analog Input Type: 0...20 mA and 4...20 mA Current
• Analog Input Resolution: 15 bits + sign
• Update Time: 22 ms
• Integral Linearity: +/- 0.08% FS
• Temperature Drift: +/- 0.005%/°C
• Channel and Logic Bus Isolation: 1500 V for 1 minute
• Operating Ambient Temperature: -25…70 °C
• Protection Rating: IP20 according to EN 61131-2 Class 1
• Current Consumption: 90 mA at 5 V DC for logical bus
• Certifications: NF, CSA, UL, ATEX Cat 3G, C-Tick
