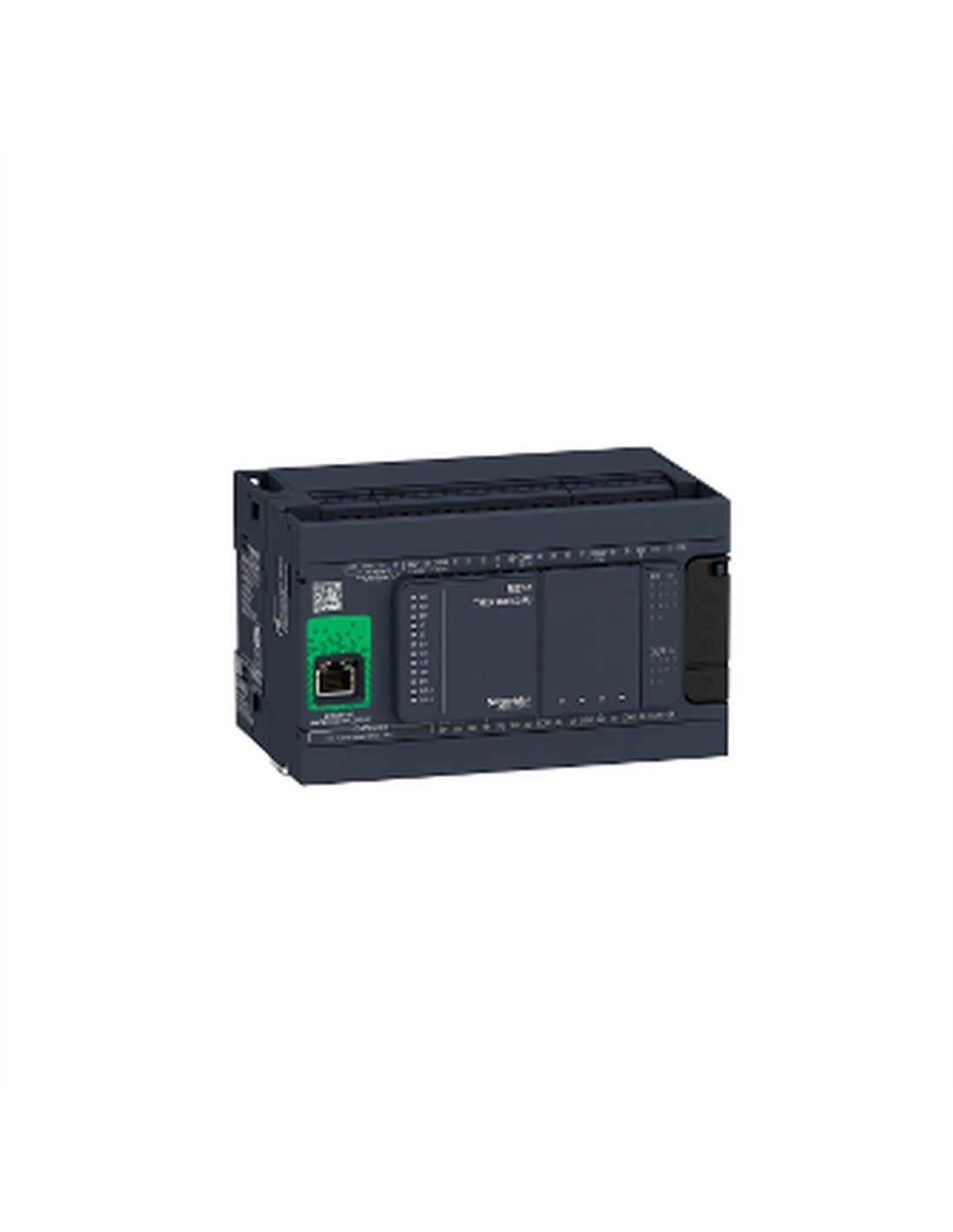

MODICON M241 Programmable Logic Controller, 24 Digital I/O, 100-240 V AC, IP20, 8 MB Memory

The Modicon M241 AC 14E/10S programmable logic controller is an advanced solution for industrial control, designed to deliver reliable performance in demanding environments. Its robustness and versatility allow its integration into a wide variety of applications, facilitating the management of complex processes with precision and efficiency.

• Power supply: 100…240 V AC, with voltage limits of 85…264 V.
• Number of digital inputs and outputs: 24 I/O, including 14 discrete inputs and 10 outputs (6 relay and 4 transistor).
• Response time: 50 µs for fast inputs and 0.3 ms for periodic instructions.
• Memory capacity: 8 MB for programs and 64 MB for system memory.
• Communication protocols: Modbus, Ethernet, CANopen, and support for SNMP and FTP.
• Operating temperature range: -10…50 °C (vertical) and -10…55 °C (horizontal).
• Protection rating: IP20 with protective cover installed.
• Vibration resistance: 3.5 mm at 5…8.4 Hz and 3 gn at 8.4…150 Hz.
