trafo nucleo abierto 200/5A 3VA cl.3
trafo nucleo abierto 200/5A 3VA cl.3

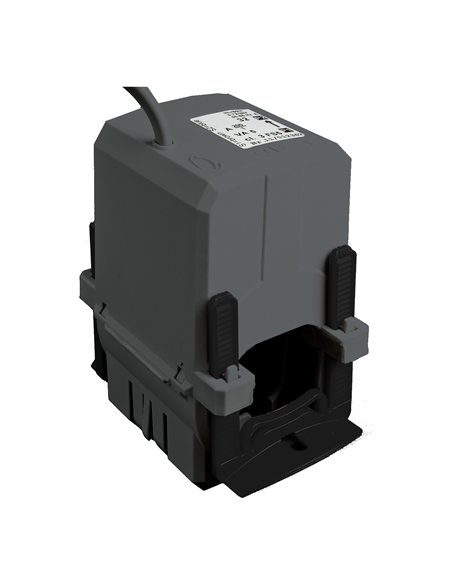

POWERLOGIC 200/5A 3VA class 3 current transformer with simplified installation

IMPO METSECT5HG020
Out of stock
€165.32
VAT included
Open-core current transformer, designed for diverse applications with a compact size that accommodates different conductors. Its tropicalized rating allows for use in extreme environmental conditions, and its accuracy exceeds the nominal rating, facilitating simplified installation in retrofit projects.

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The 200/5A 3VA Class 3 open-core current transformer is a device designed for diverse applications in industrial environments. Its split-core construction allows for quick and easy installation, making it a versatile option for electrical system modernization. This transformer is suitable for different conductor sizes, facilitating its integration into various configurations.

  • Rated current: 200 A
  • Secondary current: 5 A
  • Accuracy class: Class 3 at 3 VA
  • Turns ratio: 200/5
  • Conventional thermal air current: 240 A
  • Permissible current: 12000 A for 1 second
  • Rated operating voltage: <720 V, 50 Hz
  • Rated insulation voltage: 3 kV, 50 Hz for 1 minute
  • Mounting method: Clip-on
  • External dimensions: 59.2 mm (width) x 96.4 mm (height) x 89.2 mm (depth)
  • Electrical insulation class: Class E
  • Ambient operating temperature: -5 to 50 °C
  • Standards: DIN EN 60044-1, DIN EN 61869-1, DIN EN 61869-2, VDE 0414

Product Details

EAN
3606489608279
Reference
IMPO METSECT5HG020
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
