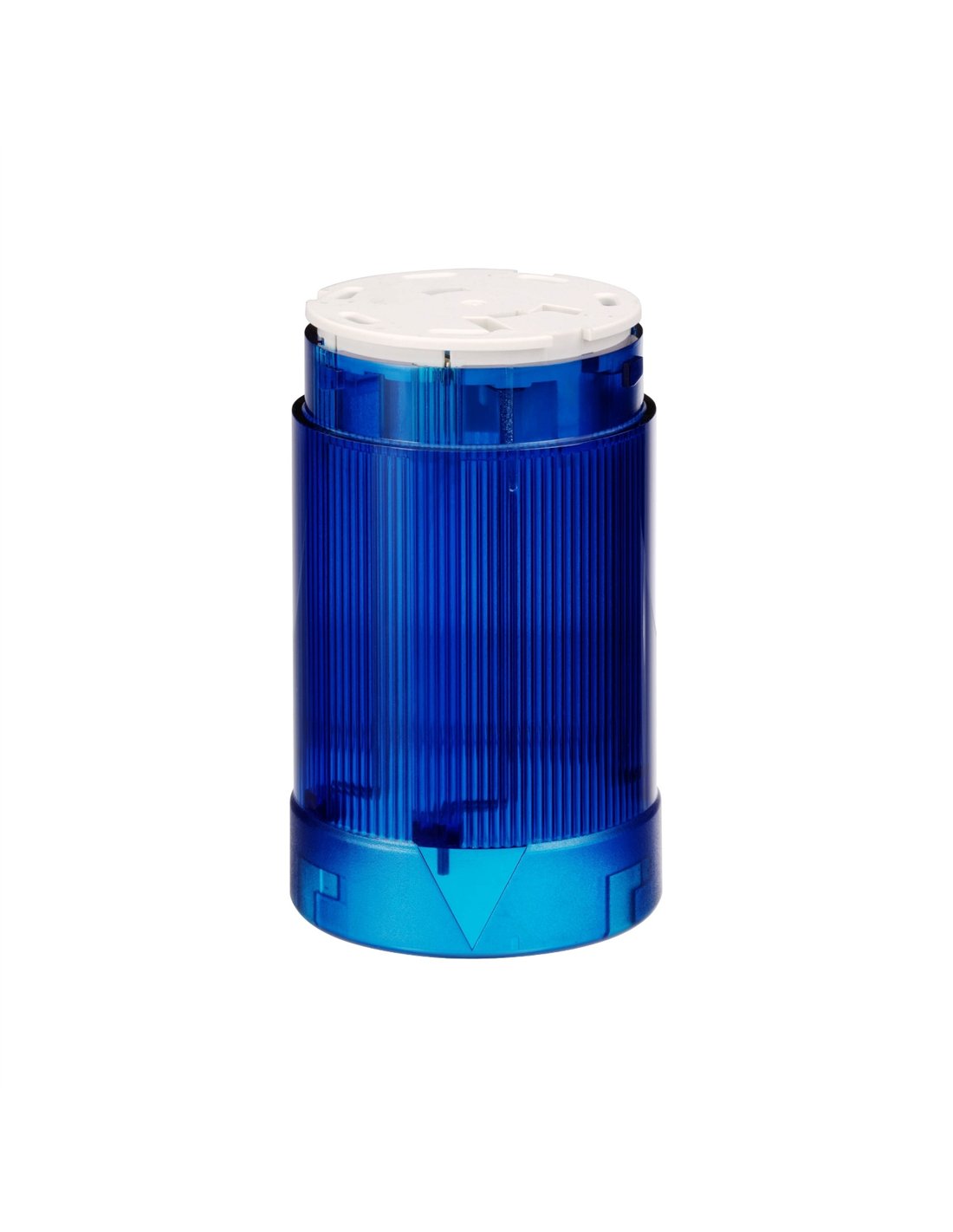

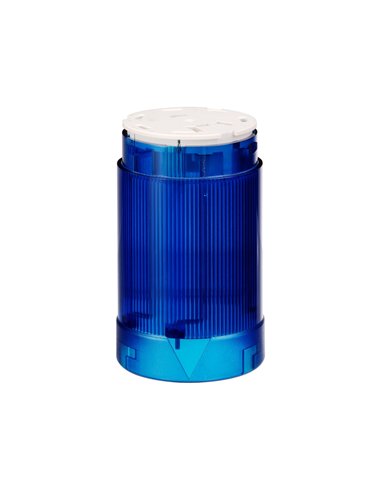

HARMONY XVM 45mm blue light unit, voltage <= 230V AC/DC, IP40

Reference IMPO XVMC36

Available

€18.62

VAT included

A 45mm diameter blue light unit designed for signaling applications. Compatible with BA 15d base bulbs, it supports voltages up to 230V AC/DC. Its robust construction and IP40 protection rating ensure reliable performance in various environmental conditions.

In stock 100 Items

Email address

Description

The Harmony XVM range light unit is a component designed to provide clear and effective signaling in a variety of applications. With a diameter of 45 mm and a BA 15d base, this unit allows the installation of incandescent or high-brightness LED bulbs, providing a luminance of 650 cd/m². Its robust and functional design adapts to different working environments.

Mounting diameter: 45 mm
Nominal supply voltage: <= 230 V AC/DC
Maximum power dissipation: 5 W
Connections: Screw terminals, 1 x 0.325...1 x 1.5 mm²
Protection rating: IP40 (any position except vertical), IP42 (vertical position)
Operating temperature: -10…50 °C
Protection class against electric shock: Class I and II depending on the mounting type
Peak voltage withstand: 4 kV according to IEC 60947-1
Certifications: CCC, in accordance with IEC 60947-1 and IEC 60947-5-1

Product Details

EAN: 3389119004275
Protection: IP40
Reference: IMPO XVMC36
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

In stock 100 Items

Reviews (0)

No reviews
