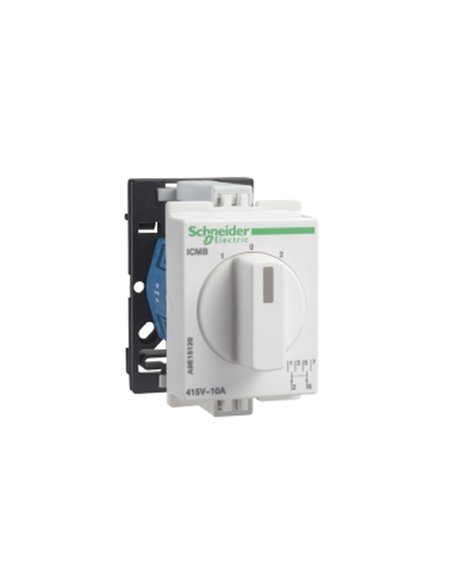

ACTI 9 ICMB 10A 415V AC selector switch, 3-position rotary control, IP20, DIN mounting

The CMB 10A 415V AC is a selector switch from the Acti 9 range, designed for the efficient control of electrical circuits in residential and small commercial environments. This device, known as the Acti 9 iCT, offers a robust and reliable solution, complying with VDE 0660 part 107 and EN 60947-3 standards, as well as being UL certified.

With a rated operating current of 10 A and a maximum permissible voltage of 440 V, the ICMB features a 3-position rotary control, allowing for intuitive and precise operation. Its compact design, with dimensions of 60 mm in height, 36 mm in width and 75 mm in depth, facilitates its installation on DIN rails, occupying only 4 steps of 9 mm.

This selector has a mechanical durability of 1,000,000 cycles and an electrical durability of 200,000 cycles under AC-21A conditions, ensuring long-lasting performance. Furthermore, its IP20 protection rating makes it suitable for a wide range of applications, operating in temperatures from -20 to 55 °C and withstanding storage in a range of -25 to 80 °C.

• Contact type: 2 C/O
• Control type: 3-position rotary knob
• Mounting: Clip-on, DIN rail mount
• Weight: 58 g
• Color: White
• Connections: 1.5 mm² jumper terminals
• Striped cable length: 9 mm for bottom connection
• Tightening torque: 1 Nm bottom
• Market segment: Small businesses and residential
• Compatibility code: ICMB
