MODULO 32S PNP HE10

MODULO 32S PNP HE10

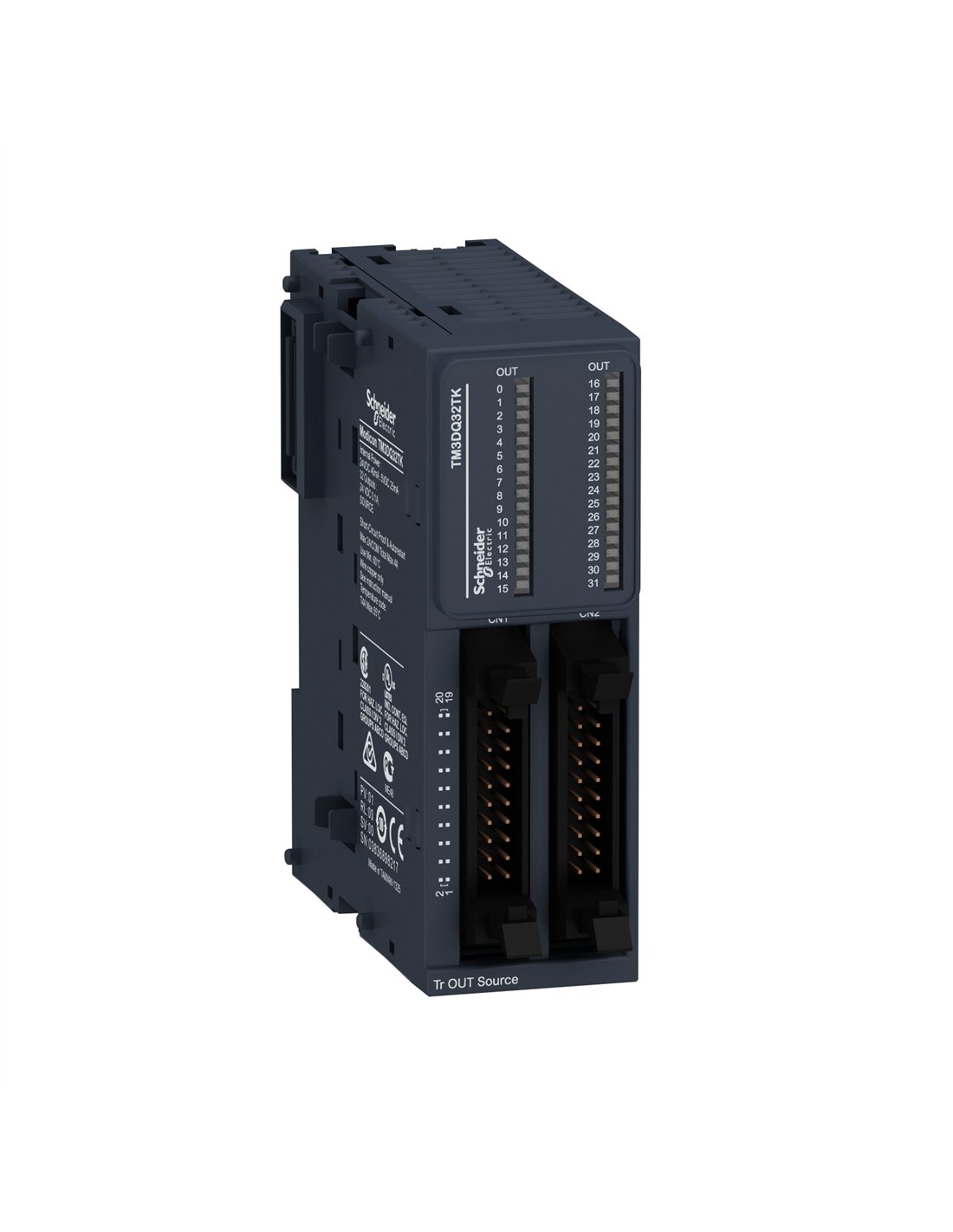

MODICON TM3 Discrete Output Module with 32 PNP Outputs and 500V AC Isolation

Reference IMPO TM3DQ32TK

Last items in stock

€309.58

VAT included

The Modicon TM3 module offers 32 PNP transistor outputs with positive-source logic, ensuring 500V AC isolation between the output and the internal logic. Its design includes HE-10 connectors for efficient connection, and it has an IP20 rating, making it suitable for industrial applications.

In stock 2 Items

Email address

Description

The Modicon TM3 is a discrete output module that offers 32 transistor outputs with positive-source logic. This device is designed for industrial applications, providing reliable and efficient performance in automation environments. Its robust construction and advanced technical features make it a suitable choice for various control configurations.

Product range: Modicon TM3
Product type: Discrete output module
Compatibility: Modicon M241, M251, M221, M340
Number of discrete outputs: 32
Output logic: Positive (source)
Output voltage: 24 V DC for transistor
Response time: 450 µs maximum (on and off)
Typical current consumption: 5 mA at 5 V DC, 20 mA at 5 V DC
Isolation between output and logic: 500 V AC
Protection rating: IP20
Temperature of Operating temperature: -10 to 35 °C (vertical), -10 to 55 °C (horizontal)
Dimensions: 90 mm (height) x 33.5 mm (width) x 81.3 mm (depth)
Weight: 0.112 kg

Product Details

EAN: 3606480611513
Reference: IMPO TM3DQ32TK
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

In stock 2 Items

Reviews (0)

No reviews
