STB,Std,FA PDM 24vDC

STB,Std,FA PDM 24vDC

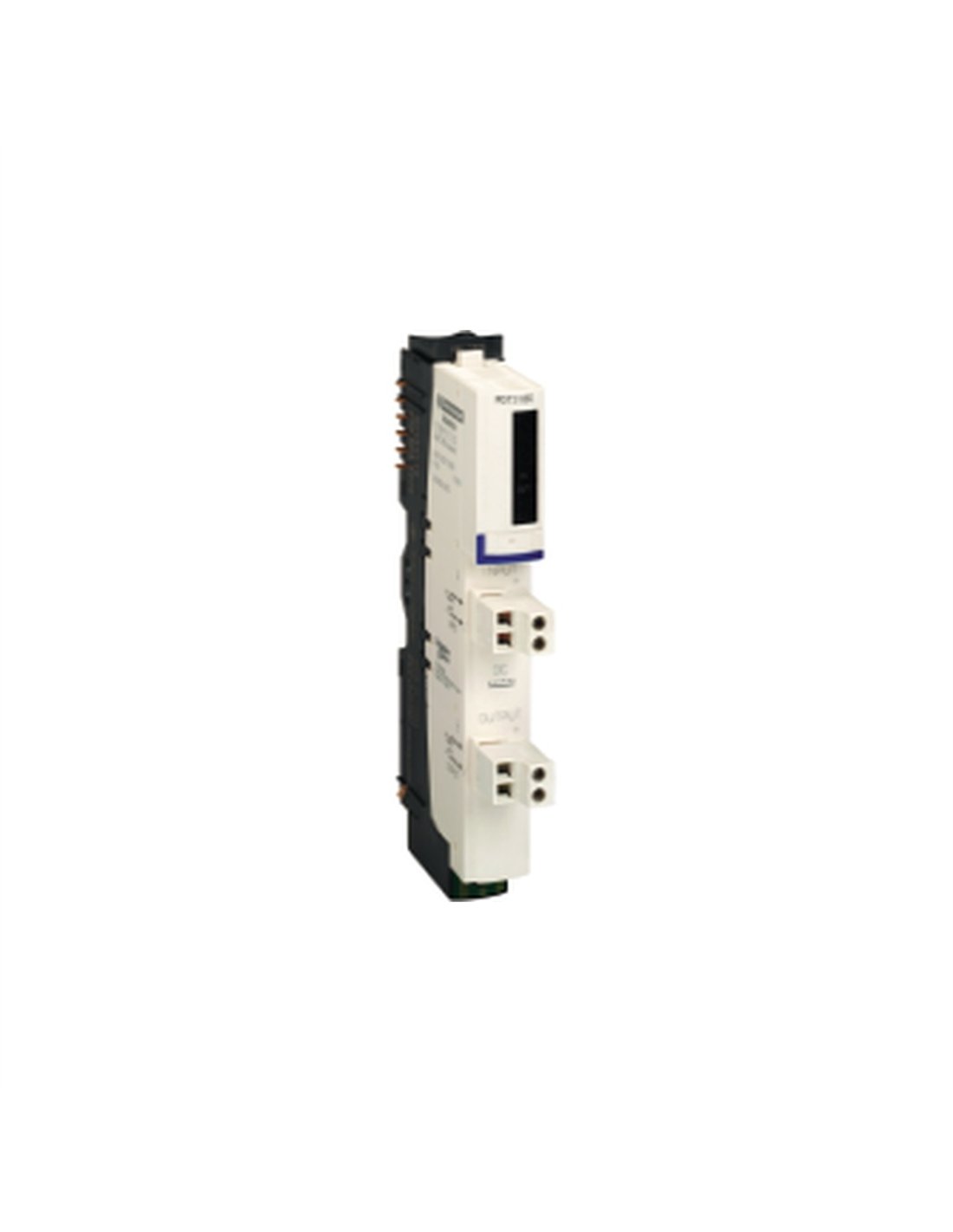

STANDARD STB 24V DC power distribution kit, 10A at 45°C, IP20, 0.13 kg

Reference IMPO STBPDT3100K

Available

€114.55

VAT included

The Modicon STB,Std,FA PDM 24VDC kit offers a Modicon STB distributed I/O solution. It includes modules and connectors for standard 24VDC power supplies, with overcurrent protection and various current capacities, ideal for industrial applications.

In stock 10 Items

Order now and receive it...

04-05-2026 with MRW

between 04-05-2026 and 05-05-2026 with Correos

Subscribe To When In Stock

You have successfully subscribed to this product

Description

The STB,Std,FA PDM 24VDC standard power distribution kit is part of the Modicon STB range of distributed I/O solutions, designed to provide efficient and reliable power in industrial applications. This kit includes essential components such as the STBPDT3100 module, the STBXBA2200 base, and spring and screw connectors, ensuring versatile and secure installation.

With a nominal supply voltage of 24VDC, the system provides an output current of up to 12A at 30°C, making it suitable for various wiring configurations. Its design includes integrated overcurrent protection, ensuring system safety and stability.

Additionally, it features a status LED for easy operation monitoring.

Nominal supply voltage: 24 V DC
Output current: 10 A at 45 °C, 12 A at 30 °C
Integrated overcurrent protection
Voltage range: 19.2...30 V DC
Protection rating: IP20 according to EN 61131-2
Operating temperature: 0…60 °C
Maximum operating altitude: <= 2000 m
Certifications: UL, NF, CSA
Dimensions: 125 mm (height) x 18.4 mm (width) x 65.1 mm (depth)
Weight: 0.13 kg

This kit is ideal for applications requiring robust and efficient power distribution, ensuring optimal performance in demanding industrial environments.

Product Details

EAN: 3595863949216
Manufacturer: SCHNEIDER
Reference: SCHNEIDER STBPDT3100K
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

In stock 10 Items

Reviews (0)

No reviews

11 other products in the same category:

SEL.LUM.LED 230V NA+NC ROJO

Available

Industrial equipment

SEL.LUM. LED lamp, 230V, red, NO+NC, ideal for signaling.

IMPO XB5AK124M5

The SEL.LUM.LED 230V NA+NC RED is an LED signaling device designed to indicate operating states. Its compact and efficient design allows for easy installation in various electrical applications, ensuring visibility and clarity in visual communication.

CAJA VACÍA AMARILLO 1 ORIFICIO

Available

Industrial equipment

Empty YELLOW box with 1 hole and durable material for storage.

IMPO XAPK1501

Empty yellow box with a hole. Ideal for storing and organizing small items. Made of durable material, it offers a practical and functional solution for keeping various spaces tidy. Suitable dimensions for multiple uses.

CABEZA PAR EMER LUM 40MM ROJO 1/4 GIRO

Available

Industrial equipment

EMER LUM 40MM RED 1/4 TURN HEAD - SCHNEIDER: EMER, durable material and easy installation.

IMPO ZB5AW743

40mm Emer Lum torque wrench head in red, designed for a 1/4 turn. Ideal for applications requiring precision and durability. Its construction ensures optimal performance in a variety of tasks. Compatible with standard industry tools.

Available

Industrial equipment

NSX100 controller from SCHNEIDER brand, 4 poles, 100A, 2.2 kW.

IMPO C1042D100

The Ud.Control NSX100 AC 4P4R 100A 2.2 is a high-quality circuit breaker designed to protect electrical circuits. It offers a 100A capacity and features four poles and four ranges, making it ideal for industrial and commercial applications.

BASE E/S MIXTA RELE MINIATURA RXM CONEX ABRAZ TORN

BASE E/S MIXTA RELE MINIATURA RXM CONEX ABRAZ TORN 2

Available

Industrial equipment

Base RXM2/RXM4 MIST terminal

IMPO RXZE2M114

Socket for Zelio RXZ miniature relay with screw clamp mixed contacts. Contact terminal arrangement: Mixed. Product compatibility: RXM plug-in mount relays (2 C/O), RXM plug-in mount relays (4 C/O). Pin Shape: Flat Device short name: RXZ.

Conmutador 2 Pos. con llave CMC

Available

Industrial equipment

CMC Acti 9 selector switch with key lock, 10 A, 415 V AC, DIN rail mounting.

IMPO A9E15123

2-Position Switch with CMC Key from the Acti 9 range. Selector for electrical circuit control, with 1 NO + 1 NC contacts. Rated voltage 415 V AC, current 10 A. DIN rail mounting, IP20 protection rating.

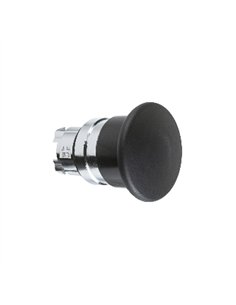

CABEZA PULS SETA 40MM NEGRO

Available

Industrial equipment

SETA 40MM BLACK pulse head + elegant design + 40mm diameter and black color.

IMPO ZB4BC2

40mm black Puls Mushroom Head, designed to offer a sleek and functional finish. Ideal for various applications, its compact size and durable material ensure longevity and versatility. Compatible with multiple mounting systems.

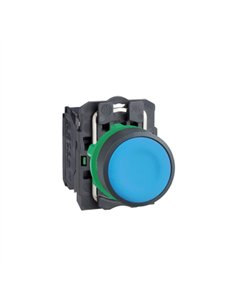

PULSADOR RASANTE 1NA AZUL

Available

Industrial equipment

SCHNEIDER FLUSH PUSH BUTTON 1NA BLUE - 10A, 250V, modern and elegant design.

IMPO XB5AA61

Blue 1NO flush-mount push button, designed for electrical installations. Its elegant finish blends seamlessly into various environments. Ideal for simple and efficient circuit activation. Manufactured with quality materials to ensure durability and optimal performance in the home or office.

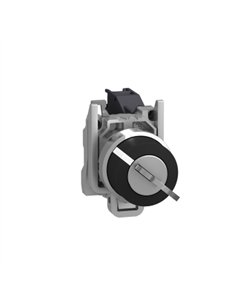

SELECTOR 2POS."NA" C.LLAVE
