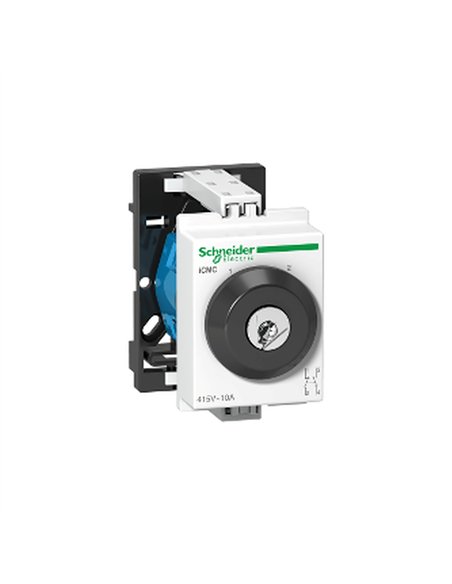

Conmutador 2 Pos. con llave CMC
Conmutador 2 Pos. con llave CMC

CMC Acti 9 selector switch with key lock, 10 A, 415 V AC, DIN rail mounting.

IMPO A9E15123
Available
€58.98
VAT included
2-Position Switch with CMC Key from the Acti 9 range. Selector for electrical circuit control, with 1 NO + 1 NC contacts. Rated voltage 415 V AC, current 10 A. DIN rail mounting, IP20 protection rating.
6 Items

Order now and receive it...

04-05-2026  with  MRW

between 04-05-2026 and 05-05-2026  with  Correos

Description

The Acti 9 iCT 2-Position Keyed Switch (ICMC) is a device designed for the efficient control of electrical circuits. This selector, known as the Acti 9 iCT, combines functionality and safety, allowing the operation of electrical circuits with a two-position rotary control. Its robust design and high-quality construction ensure reliable performance in a variety of industrial and commercial applications.

The ICMC features a contact configuration that includes one normally open (NO) and one normally closed (NC) contact, providing flexibility in its use. With a rated operating voltage of 415 V AC and a rated current of 10 A, this switch is suitable for a wide range of applications.

Its installation is simple, as it can be mounted on a DIN rail and is clip-on. Key features include: Maximum permissible voltage: 440 V; Mechanical durability: 1,000,000 cycles; Electrical durability: 200,000 cycles (AC-21A, state 1); Protection rating: IP20; Operating temperature range: -20 to 55 °C; Dimensions: 60 mm high, 36 mm wide, 72 mm deep; Weight: 70 g; Connections: 1.5 mm² jumper terminals; Tightening torque: 1 N·m; Compatibility code: ICMC

This switch is an ideal solution for those seeking safe and efficient control of their electrical installations.

Product Details

EAN
3606480377013
Manufacturer
SCHNEIDER
Reference
SCHNEIDER A9E15123
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
