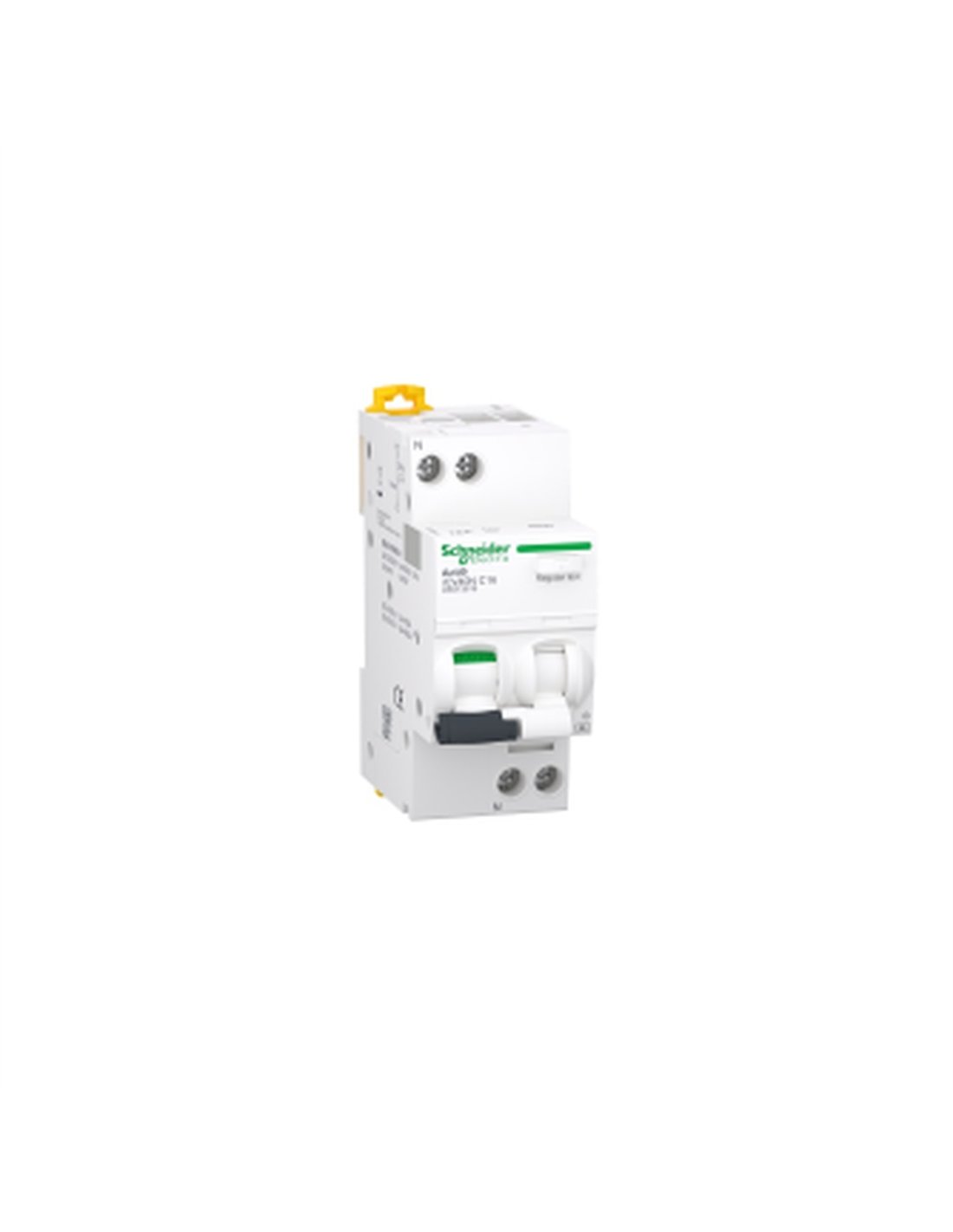

ACTI 9 iCV40N 1PN C 16A 30mA ASI RCBO

ACTI 9 iCV40N 1PN C 16A 30mA ASI RCBO

ACTI 9 16A 30mA 1 pole type C differential switch ASI RCBO

Reference IMPO A9DF3616

Available

€146.71

VAT included

The ACTI 9 iCV40N 1PN C 16A 30mA ASI RCBO is an electrical protection device that combines a residual current device (RCD) and a circuit breaker. Designed to ensure safety in electrical installations, it offers protection against overloads and short circuits.

In stock 10 Items

Email address

Description

The ACTI 9 iCV40N 1PN C 16A 30mA ASI RCBO is an electrical protection device designed to ensure safety in residential and industrial electrical installations. This combination residual current device (RCBO) offers effective protection against overloads and short circuits, as well as accurate leakage current detection, minimizing the risk of fires and electrocutions. Its compact design allows for easy integration into electrical panels, optimizing space and simplifying installation. Furthermore, it features a quick-disconnect mechanism that ensures an immediate response to any anomaly in the electrical network.

Type: RCBO (Combined Residual Current Circuit Breaker)
Rated current: 16A
Residual current protection: 30mA
Phases: 1PN (single-phase)
Breaking capacity: 6kA
Standards: Complies with IEC 61009-1 and IEC 60947-2 standards
Dimensions: Compact, ideal for small electrical panels
Installation: Easy DIN rail mounting
Operating temperature: -25°C to +60°C
Service life: High durability and wear resistance

Product Details

Rated current (A): 16 A
Sensitivity: 30 mA
Curve: C
EAN: 3606489444396
No. of poles: 1P+N
Reference: SCHNEIDER A9DF3616
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

In stock 10 Items

Reviews (0)

No reviews
