INT. DIFERENCIAL 4P 63A 30mA
INT. DIFERENCIAL 4P 63A 30mA

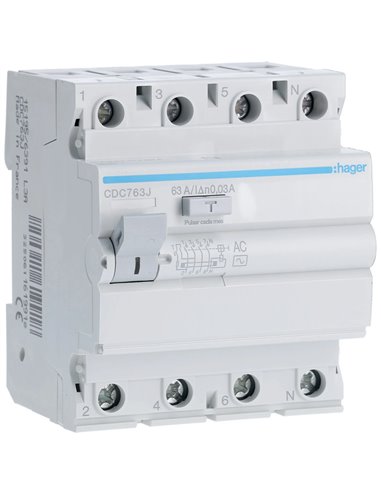

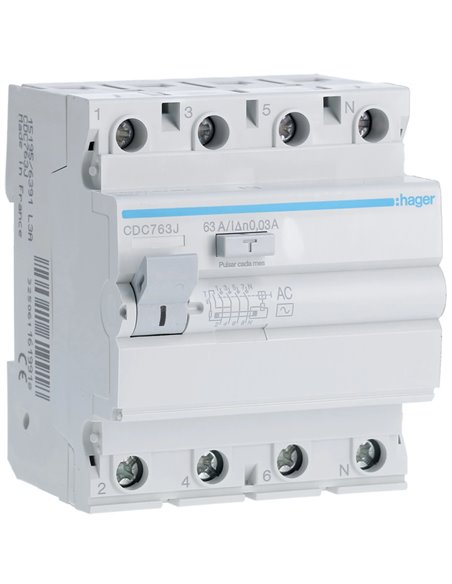

4-module differential switch (63A 30mA 230/400V) suitable for IP20 DIN rail 8,3x7x7cm

HAGER CDC763J
Available
€1,852.82
VAT included

4-module residual current circuit breaker, ideal for electrical installations in buildings. With a nominal current of 63A and an adjustable differential of 30mA, this device guarantees adequate protection in 230/400V systems. Its compact design allows for easy installation on DIN rail, offering functionality and quality.

  • Making and breaking capacity ldm: 0.63 kA
  • Conditional rated short-circuit current Inc: 6 kA according to EN61008-1
  • Rated insulation voltage (Ui): 500V
  • Rated voltage spike resistance (Uimp): 4000V
  • Operating temperature: -25 to 40°C
  • Connection section: 16mm² (flexible cable), 25mm² (rigid cable)
  • Protection degree: IP20
  • Dimensions: 8.3x7x7 cm
  • Brand: HAGER
13 Items

Description

The 4-module residual current circuit breaker (63A 30mA 230/400V) is an essential device for electrical protection in installations requiring a high level of safety. Designed for mounting on DIN rail and with an IP20 protection rating, this switch is ideal for indoor environments. Its breaking and making capacity, together with its robust design, make it a reliable choice for building management.

  • Rated current: 63A
  • Differential current: 30mA adjustable
  • Operating voltage: 230V AC
  • Connection section: 16mm² (flexible cable), 25mm² (rigid cable)
  • Operating temperature: -25 to 40°C
  • Making and breaking capacity ldm: 0.63 kA
  • Conditional rated short-circuit current Inc: 6 kA according to EN61008-1
  • Rated insulation voltage (Ui): 500V
  • Rated voltage peak withstand (Uimp): 4000V
  • Dimensions: 8.3x7x7 cm
  • Color: Grey/Blue

Product Details

Frequency
50
High
8,3cm
Rated current (A)
45
48
51
55
58
60
63
Width
7cm
Colour
Blue
Grey
Sensitivity
30 mA
Measures
8,3x7x7cm
Weight (kg)
0,28
Power (W)
18,5
Depth
7cm
Protection
IP20
Reference
HAGER CDC763J
Nominal voltage (V)
230V
380V
440
500V
4000
Current type
AC
